Keyboard-controller board
Removing the keyboard-controller board
Prerequisites
1. Remove the base cover.
2. Remove the battery.
About this task
NOTE: The keyboard-controller board is only required for computers that are shipped with a 4-zone keyboard.
Steps

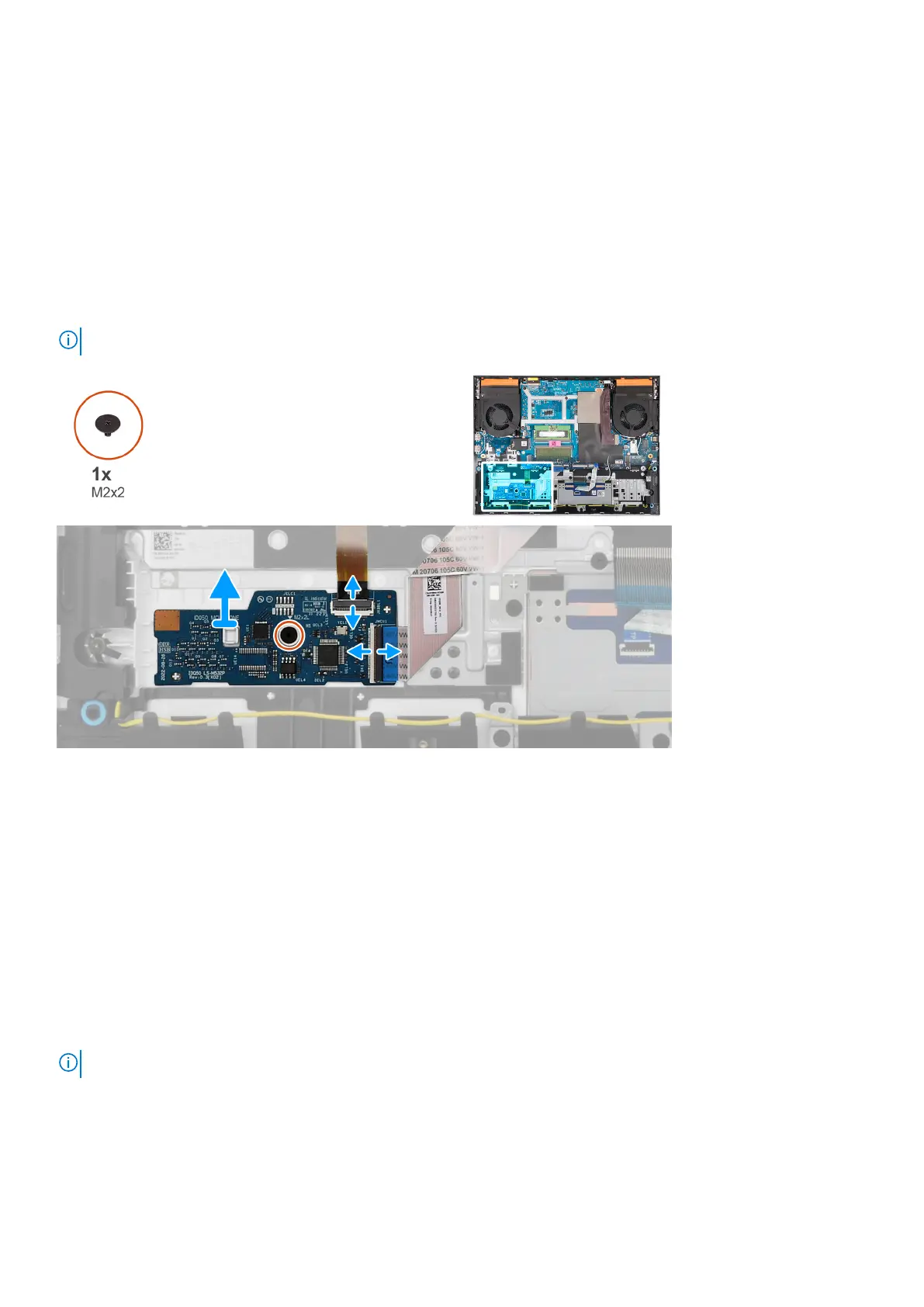

1. Open the latch and disconnect the keyboard-backlight cable from the keyboard-controller board.
2. Open the latch and disconnect the keyboard-controller board cable from the keyboard-controller board.
3. Remove the screw (M2x2) that secures the keyboard-controller board to the palm-rest and keyboard assembly.
4. Lift the keyboard-controller board off the palm-rest and keyboard assembly.
Installing the keyboard-controller board
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
NOTE: The keyboard-controller board is only required for computers that are shipped with a 4-zone keyboard.
Removing and installing Field Replaceable Units (FRUs) 63
