Steps

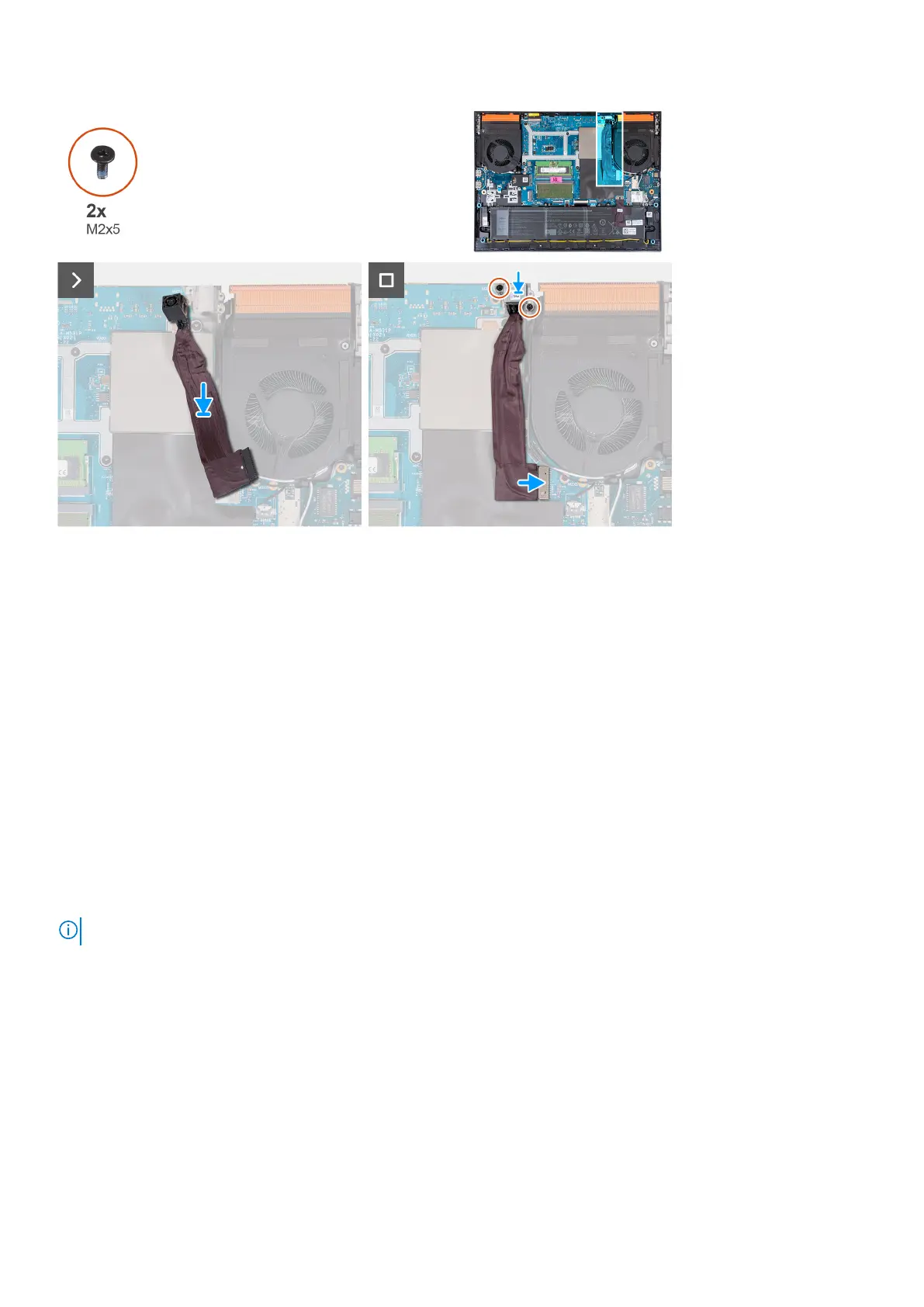

1. Adhere the power-adapter port cable on the system board and place the power-adapter port into the slot.
2. Place the power-adapter port bracket on the power-adapter port and align the screw holes on the power-adapter port
bracket to the screw holes on the palm-rest and keyboard assembly.
3. Replace the two screws (M2x5) that secure the power-adapter port bracket to the palm-rest and keyboard assembly.
4. Connect the power-adapter port cable to the system board.
Next steps
1. Install the rear cover.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
System board
Removing the system board (Single-color keyboard)
NOTE: This system board is only required for computers that are shipped with a single-color keyboard.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the rear cover.
5. Remove the solid-state drive.
6. Remove the wireless card.
7. Remove the memory module.
