Display Assembly
Dell™Inspiron™1300/B120/B130ServiceManual
Removing the Display Assembly
Removing the Display Bezel
Removing the Display Panel
Installing the Display Panel
Removing the Display Assembly
1. Follow the instructions in Before Working Inside Your Computer.
2. Remove the hinge cover. See Removing the Hinge Cover.
3. Remove the keyboard. See Removing the Keyboard.
4. Pull straight up on the pull-tab that is attached to the display-feed flex cable to disconnect the cable from the system board.
5. Disconnect the antenna cable.
6. Close the display.
7. Turn the computer upside down with the back of the computer facing you.

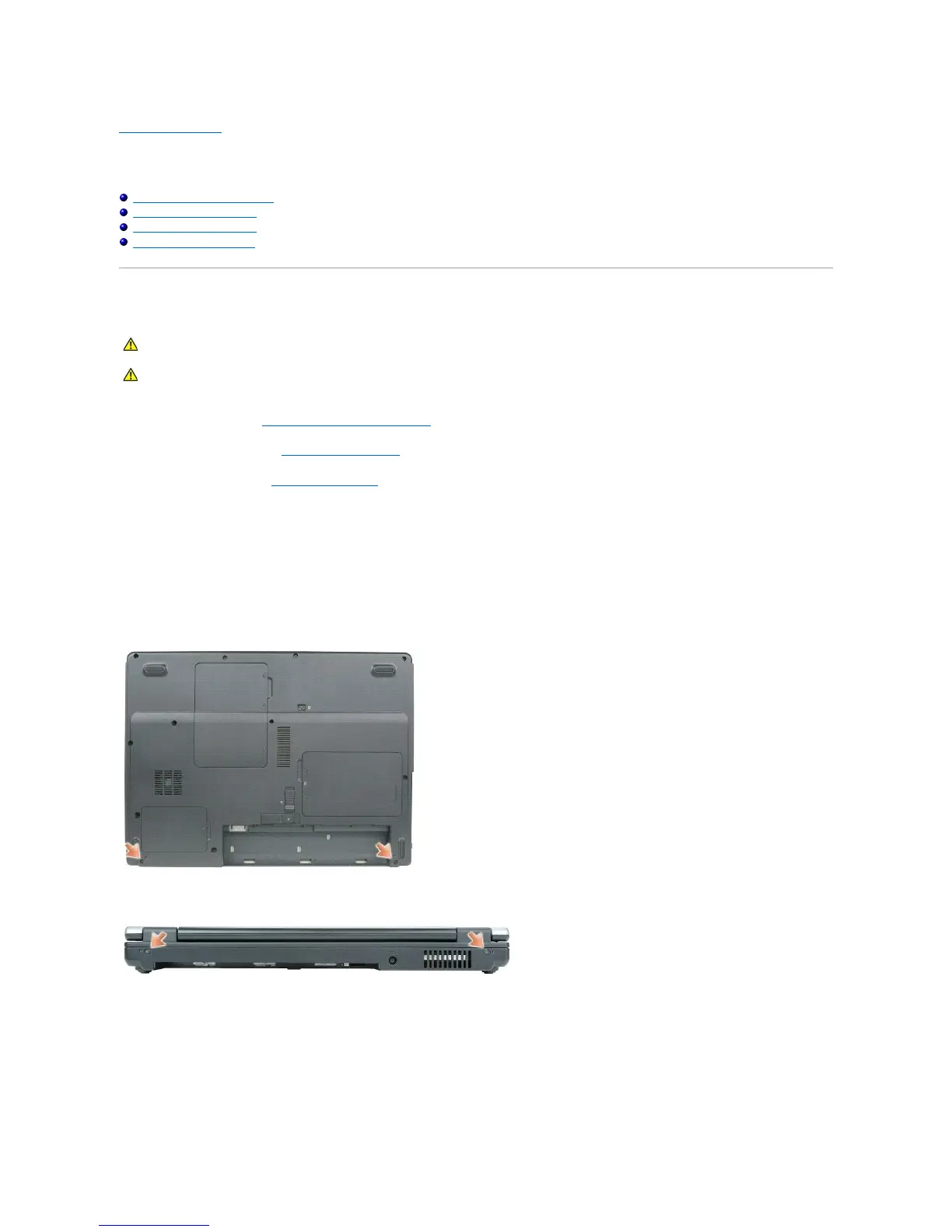

8. From the bottom of the computer, remove the two M2.5 x 8-mm screws labeled "D."
9. From the back of the computer, remove the two M2.5 x 8-mm screws labeled "D."
10. Turn the computer right-side up and open the display.
11. Carefully remove the antenna cable and the display cables from their routing guides.
CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.
