Steps

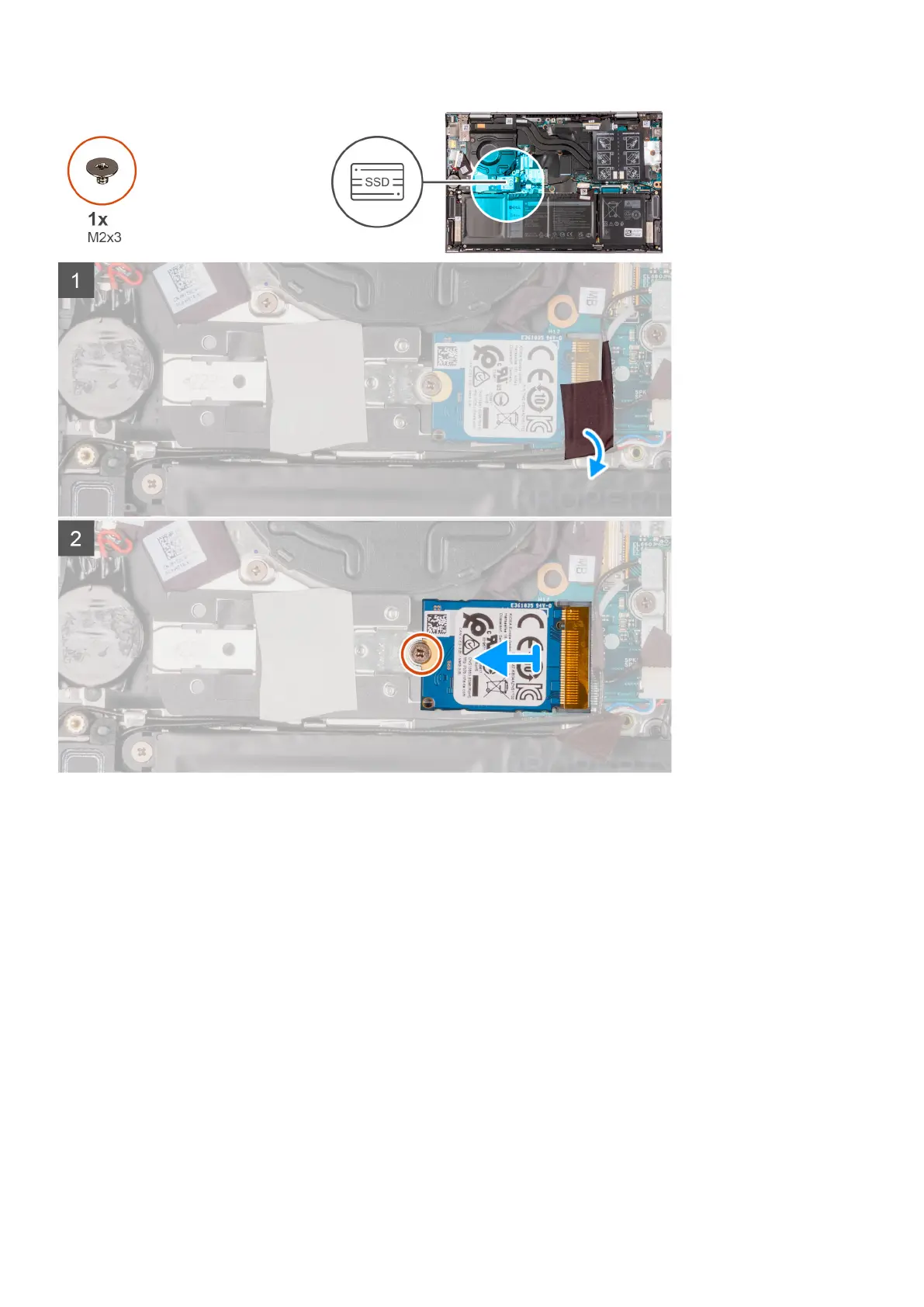

1. Peel the tape that secures the antenna cable to the solid-state drive.
2. Lift the solid-state drive thermal bracket off the palm-rest and keyboard assembly.
3. Remove the screw (M2x3) that secures the solid-state drive to the solid-state drive bracket.
4. Slide and remove the solid-state drive from the solid-state drive slot.
Installing the M.2 2230 solid-state drive
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
This computer supports two solid-state drive form factors.
● M.2 2230
● M.2 2280
If you are replacing the M.2 2230 solid-state drive with an M.2 2280 solid-state drive, the following images indicate where to
install the solid-state drive bracket based on the form factor.
Removing and installing components
31
