Dell Inspiron 7415 2-in-1 User Manual

Steps
1. Remove the two screws (M2.5x3.5) that secure the right display hinge to the I/O board and palm-rest and keyboard
assembly.
2. Open the right display hinge at an angle of 90 degrees.
3. Peel the tape that secures the I/O-board cable to the I/O board.
4. Open the latch, and disconnect the I/O-board cable from the I/O board.
5. Open the latch, and disconnect the fingerprint reader-cable from the I/O board.
6. Disconnect the coin-cell battery cable from the I/O board.
7. Remove the two screws (M2x3) that secure the I/O board to the palm-rest and keyboard assembly.
8. Slide and lift the I/O board off the palm-rest and keyboard assembly.
Installing the I/O board
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

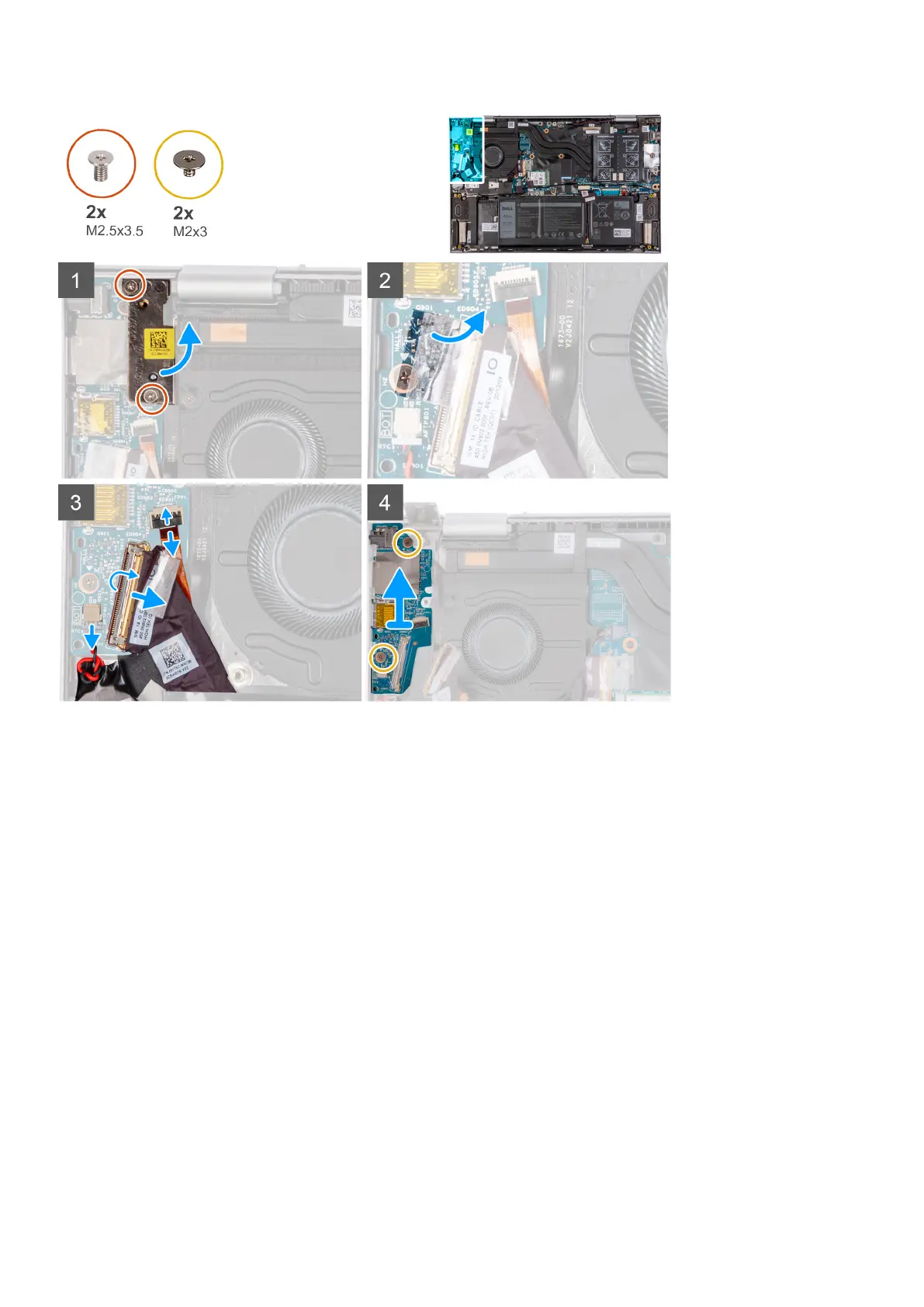

The following image indicates the location of the I/O board and provides a visual representation of the installation procedure.
46
Removing and installing components

Dell Inspiron 7415 2-in-1 Specifications

General

Graphics	AMD Radeon Graphics
Processor	AMD Ryzen 5 5500U
Display	14.0-inch FHD (1920 x 1080)
RAM	8GB DDR4 3200MHz
Storage	256GB M.2 PCIe NVMe SSD
Operating System	Windows 10 Home
Battery	4-Cell, 54WHr Integrated Battery
Ports	2 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 1 Type-C, 1 x HDMI 1.4b, 1 x Headset Jack
Webcam	720p at 30 fps HD camera
Audio	Stereo speakers, Waves MaxxAudio Pro
