Dell Inspiron 7415 2-in-1 User Manual

Steps
After performing the steps in the pre-requisites, you are left with the palm-rest and keyboard assembly.
Installing the palm-rest and keyboard assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

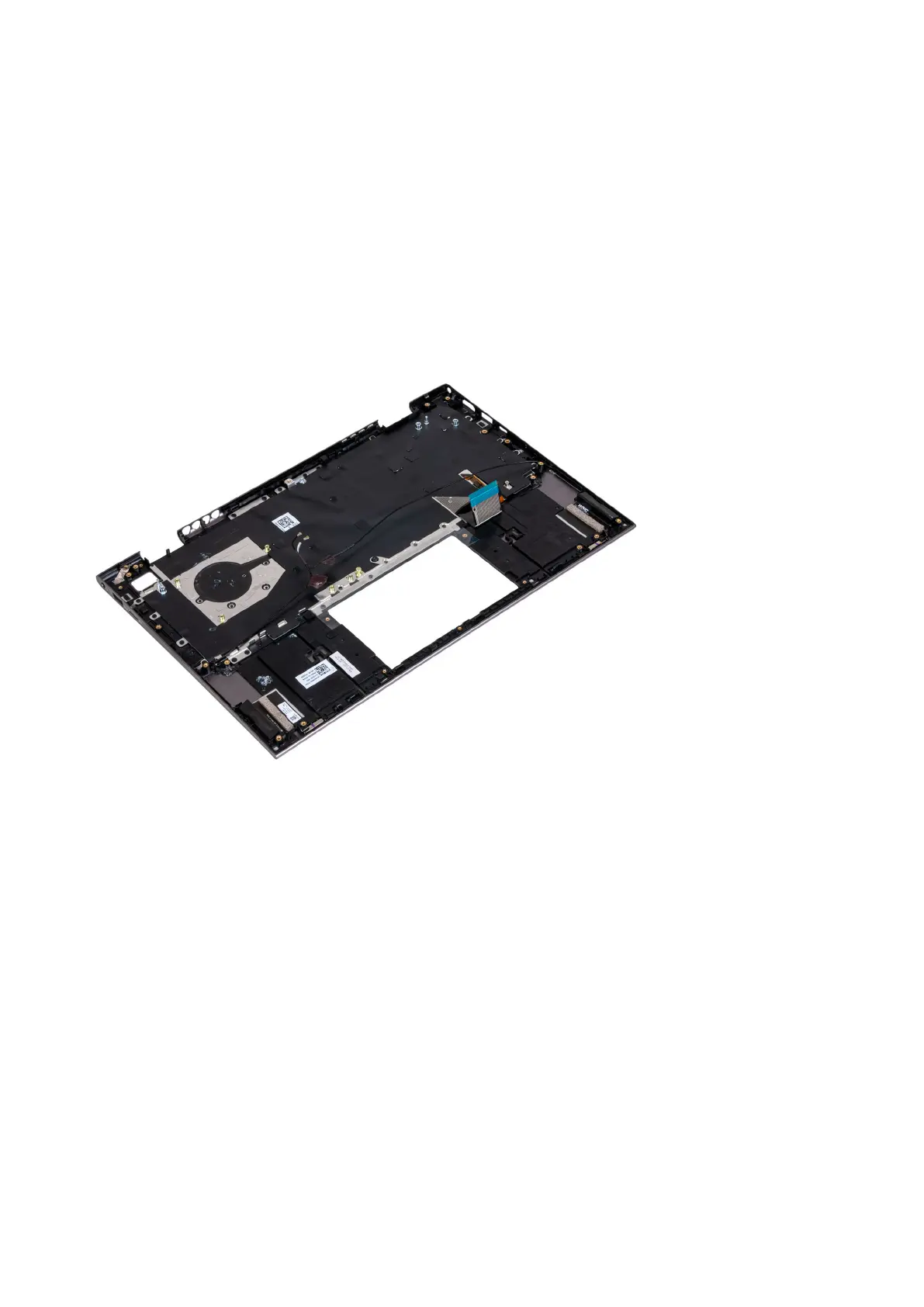

The following image indicates the location of the palm-rest and keyboard assembly and provides a visual representation of the
installation procedure.
Steps
Place the palm-rest and keyboard assembly on a clean and flat surface.
Next steps
1. Install the system board.
2. Install the display assembly.
3. Install the power button or power button with fingerprint reader.
4. Install the touchpad.
5. Install the fan.
6. Install the heat sink.
7. Install the speakers.
8. Install the I/O board.
9. Install the M.2 2230 solid-state drive or M.2 2280 solid-state drive, whichever applicable.
10. Install the wireless card.
11. Install the memory modules.
12. Install the coin-cell battery.
13. Install the battery.
14. Install the base cover.
15. Follow the procedure in After working inside your computer.
Removing and installing components
59

Dell Inspiron 7415 2-in-1 Specifications

General

Graphics	AMD Radeon Graphics
Processor	AMD Ryzen 5 5500U
Display	14.0-inch FHD (1920 x 1080)
RAM	8GB DDR4 3200MHz
Storage	256GB M.2 PCIe NVMe SSD
Operating System	Windows 10 Home
Battery	4-Cell, 54WHr Integrated Battery
Ports	2 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 1 Type-C, 1 x HDMI 1.4b, 1 x Headset Jack
Webcam	720p at 30 fps HD camera
Audio	Stereo speakers, Waves MaxxAudio Pro
