Dell Latitude 7400 User Manual

Power adapter port
Removing the power adapter port
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
3. Remove the battery.

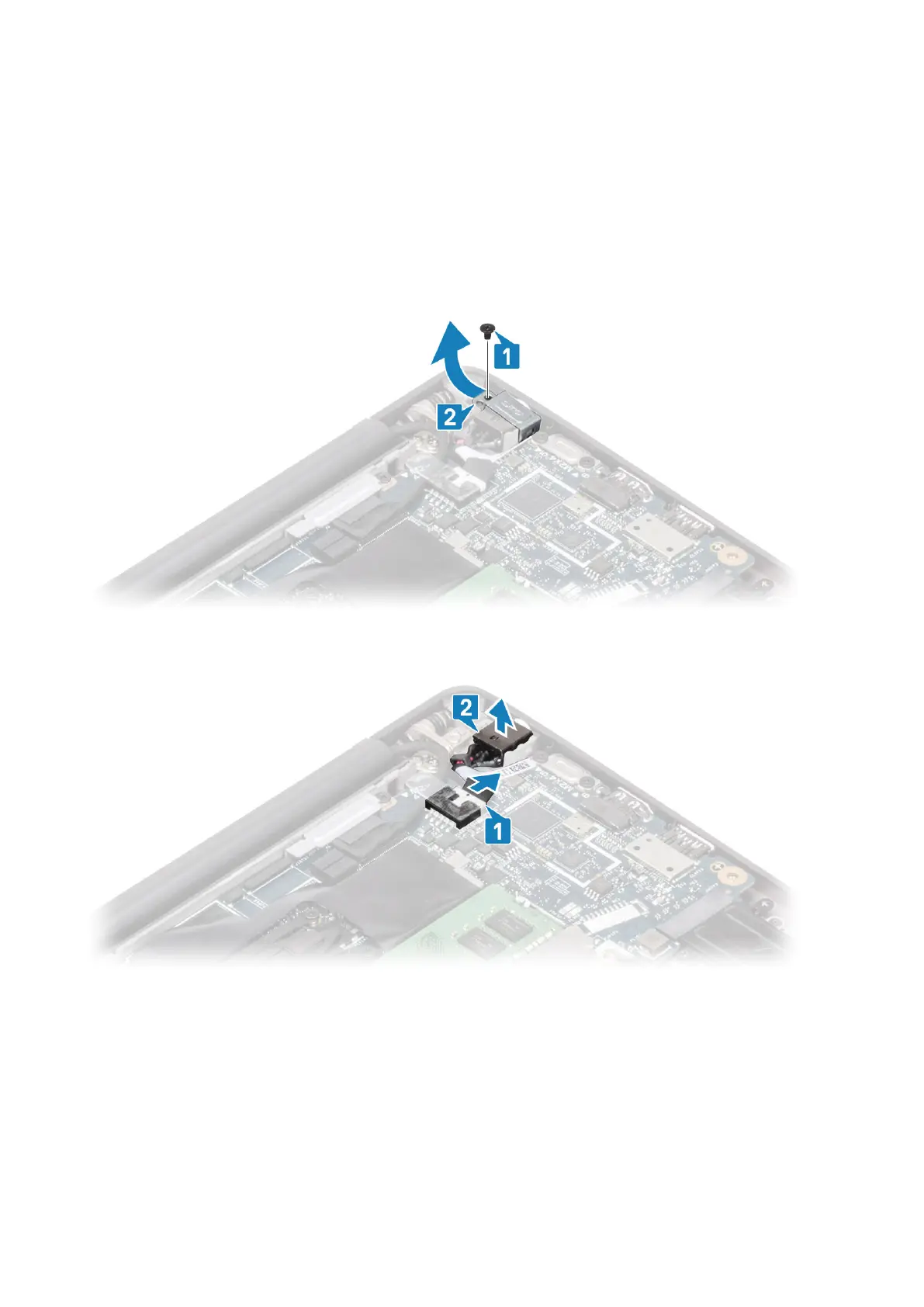

1. Remove the single (M2x3) screw from the metal bracket on the power adapter port [1].
2. Remove the metal bracket that secures the power adapter port [2].
3. Disconnect the power adapter port cable from the system board [1].
4. Lift and remove the power adapter port from its slot in the palmrest [2].
Installing the power adapter port
1. Connect the power adapter port cable to its connector on the system board [1].
2. Place the power adapter port into its slot on the palmrest [2].
Removing and installing components
39

Dell Latitude 7400 Specifications

General

Processor	8th Generation Intel Core i5/i7
Graphics	Intel UHD Graphics 620
Operating System	Windows 10 Pro
Display	14.0-inch FHD (1920 x 1080)
RAM	Up to 16GB DDR4
Storage	Up to 1TB PCIe NVMe SSD
Weight	1.36 kg (3.0lbs)
Ports	HDMI 1.4, microSD card reader
Wireless	Bluetooth 5.0
Webcam	720p HD camera with dual array microphones
