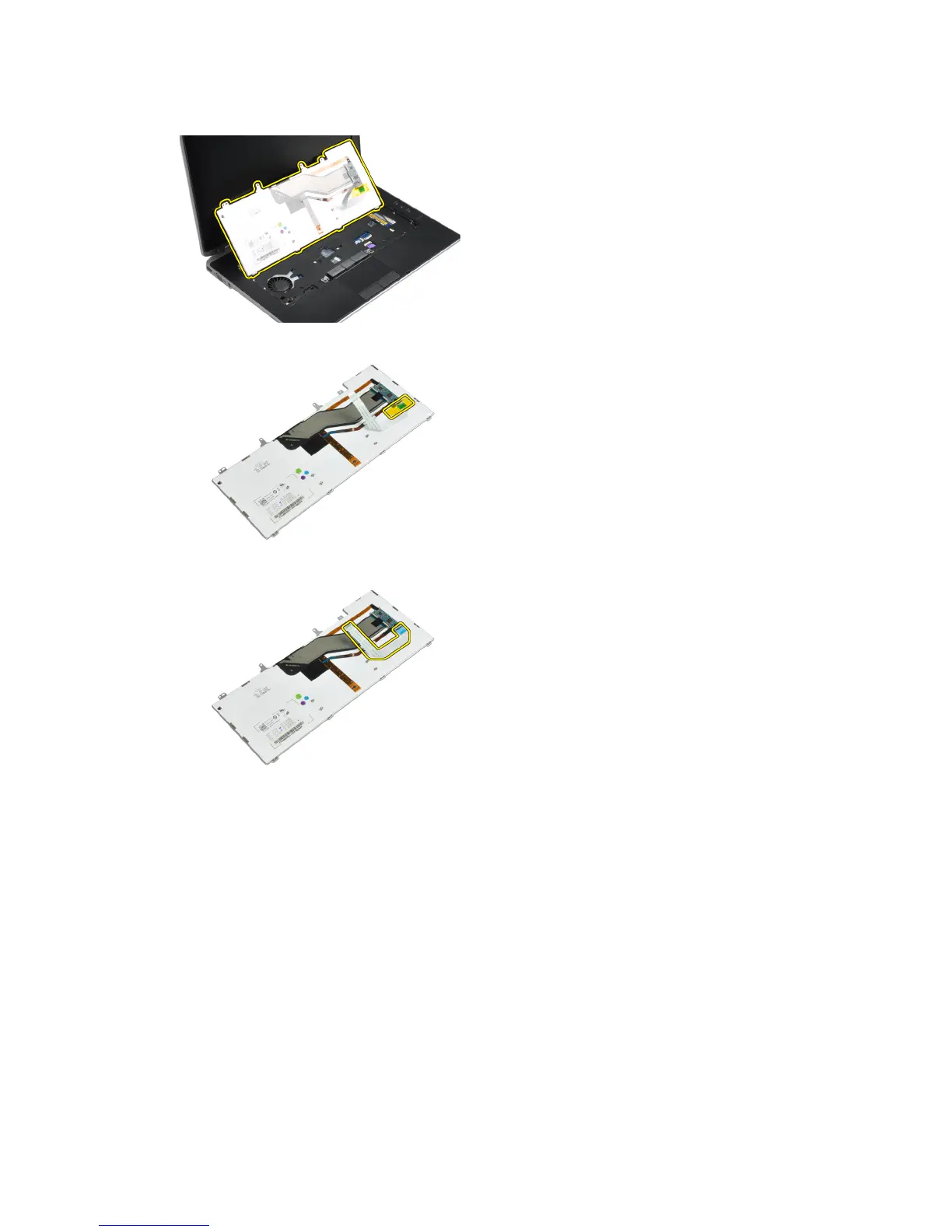

7. Remove the keyboard from the computer.
8. Peel back the adhesive tape securing the keyboard connector.
9. Remove the keyboard cable from the keyboard.
Installing the Keyboard
1. Connect the keyboard cable and secure it to the keyboard using the tape.
2. Connect the keyboard cable to the system board.
3. Slide the keyboard into its compartment and ensure that it clicks into place.
4. Tighten the screws to secure the keyboard on the palmrest.
5. Flip the computer and tighten the screws to secure the keyboard.
6. Install:
a) keyboard trim
b) battery
7. Follow the procedures in
After Working Inside Your Computer
.
