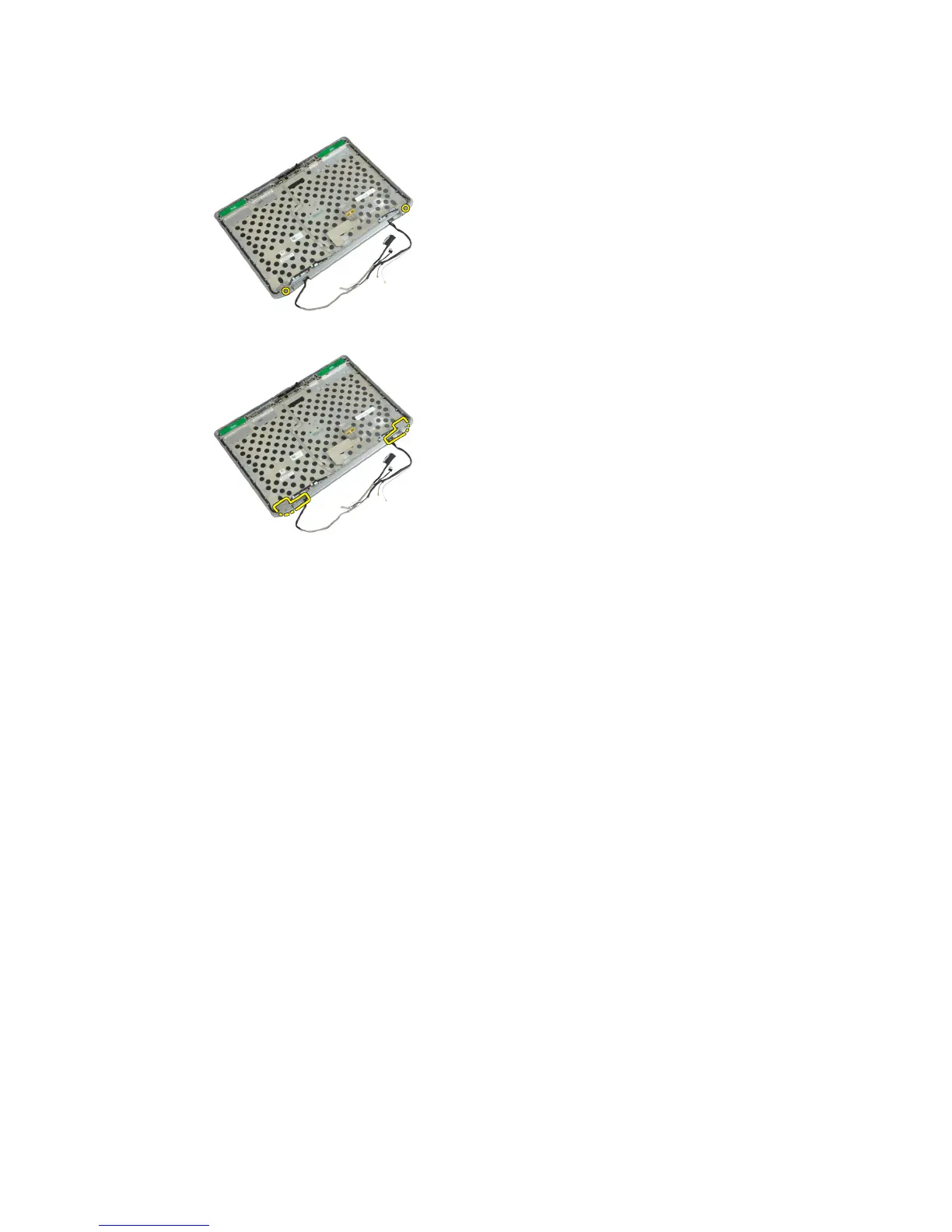

5. Remove the screws that secures the display hinges to the display assembly.
6. Remove the display hinges from the display assembly.
Installing the Display Hinges
1. Place both the display hinges on the panel.
2. Tighten the screws to secure the display hinges to the display assembly.
3. Place the display hinge plates on the hinges.
4. Tighten the screws to secure the display hinge plates to the display assembly.
5. Install:
a) display panel
b) display bezel
c) display assembly
d) keyboard
e) keyboard trim
f) bluetooth card
g) hard drive
h) base cover
i) battery
6. Follow the procedures in
After Working Inside Your Computer
.
55
