5. Remove the LVDS and camera cable from the display assembly.
Installing the LVDS and Camera Cable

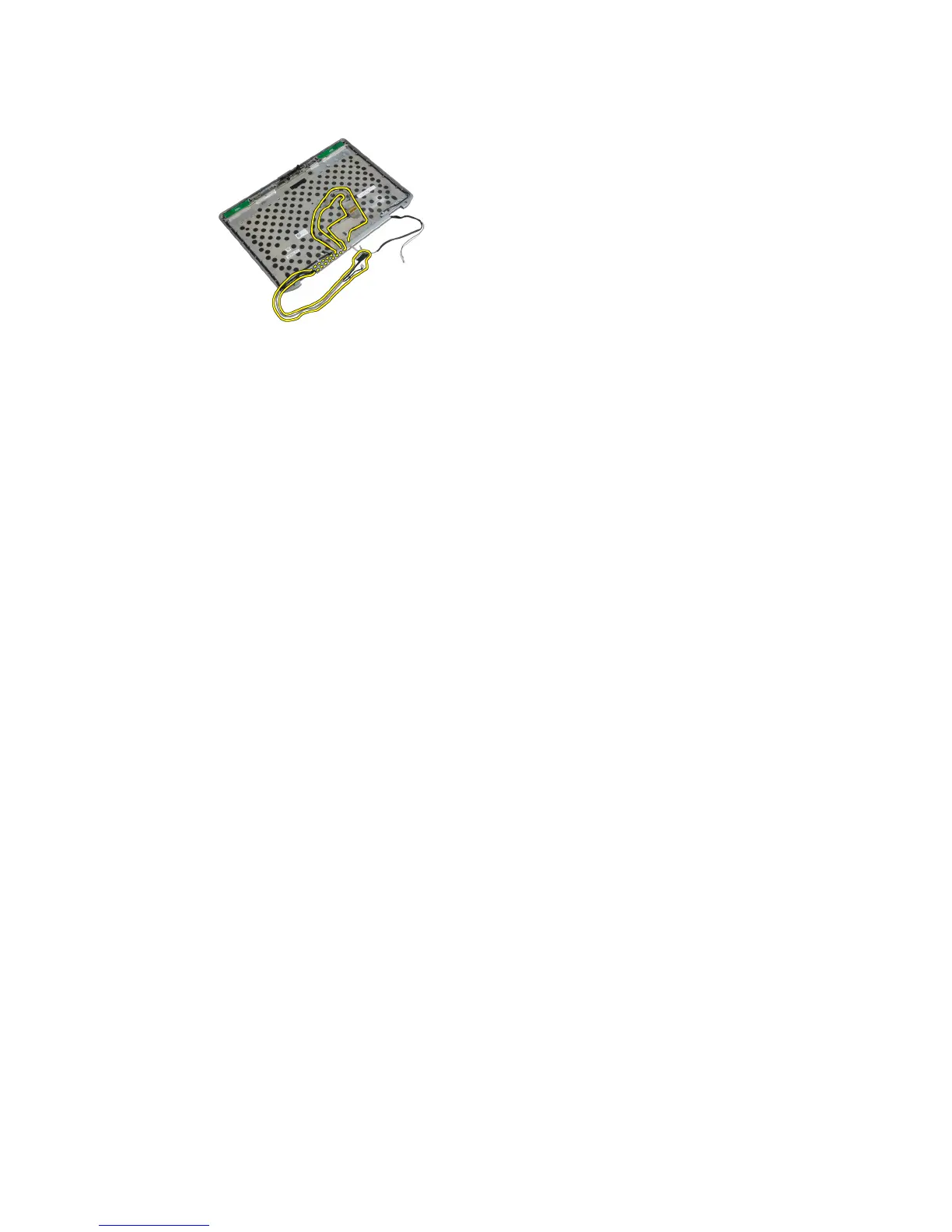

1. Route the LVDS and camera cable on the display assembly.
2. Fix the adhesive the tape to secure the cable.
3. Connect the LVDS and camera cable to the camera.
4. Install:
a) display hinges
b) display panel
c) display bezel
d) display assembly
e) keyboard
f) keyboard trim
g) bluetooth card
h) hard drive
i) base cover
j) battery
5. Follow the procedures in
After Working Inside Your Computer
.
Removing the Speakers
1. Follow the procedures in
Before Working Inside Your Computer
.
2. Remove:
a) battery
b) base cover
c) hard drive
d) keyboard trim
e) keyboard
f) display assembly
g) palmrest
h) media board (available in E6430/E6430 ATG only)
i) ExpressCard cage
j) bluetooth card
k) system board
