Installing the Display Assembly
1. Connect the display assembly to the computer.
2. Flip the computer and tighten the screws to secure the display assembly.
3. Route the antennae through the routing channel.
4. Connect the antennae to the computer.
5. Route the LVDS and the camera through the routing channel.
6. Connect the camera cable to the computer.
7. Connect the LVDS cable to the computer.
8. Install the LVDS support bracket in its position on the computer.
9. Tighten the screw to secure the support bracket to the computer.
10. Install:
a) keyboard
b) keyboard trim
c) base cover
d) battery
11. Follow the procedures in
After Working Inside Your Computer
.
Removing the Display Bezel
1. Follow the procedures in
Before Working Inside Your Computer
.
2. Remove the battery.

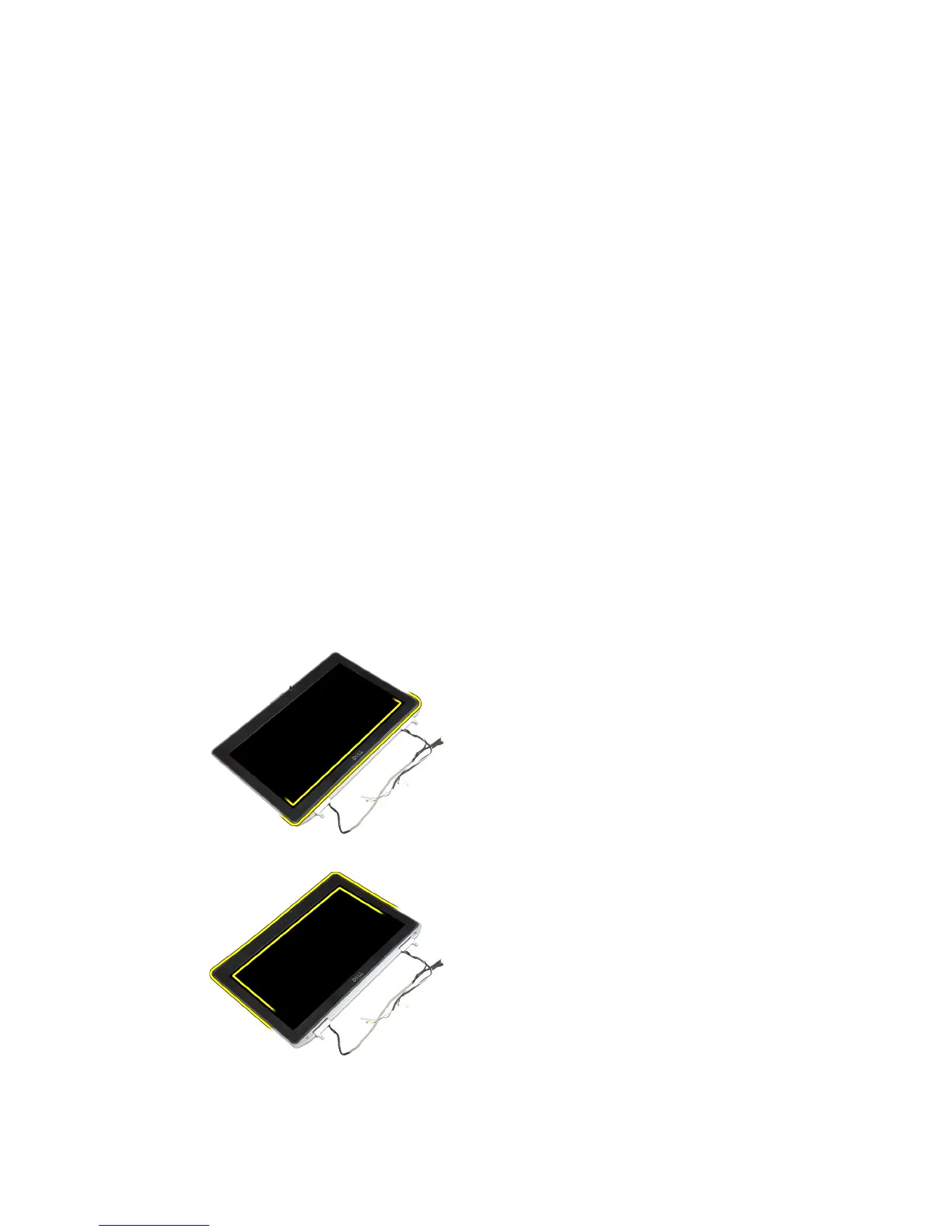

3. Pry up the bottom edge of the display bezel.
4. Pry up the left, right and top edges of the display bezel.
