6. Install:
a) system board
b) ExpressCard cage
c) media board (available in E6430/E6430 ATG only)
d) palmrest
e) display assembly
f) keyboard
g) keyboard trim
h) bluetooth card
i) hard drive
j) base cover
k) battery
7. Follow the procedures in
After Working Inside Your Computer
.
Removing the Input/Output (I/O) Board
1. Follow the procedures in
Before Working Inside Your Computer
.
2. Remove:
a) battery
b) base cover
c) hard drive
d) optical drive
e) bluetooth card
f) keyboard trim
g) keyboard
h) display assembly
i) palmrest
j) media board (available in E6430/E6430 ATG only)
k) ExpressCard cage
l) system board

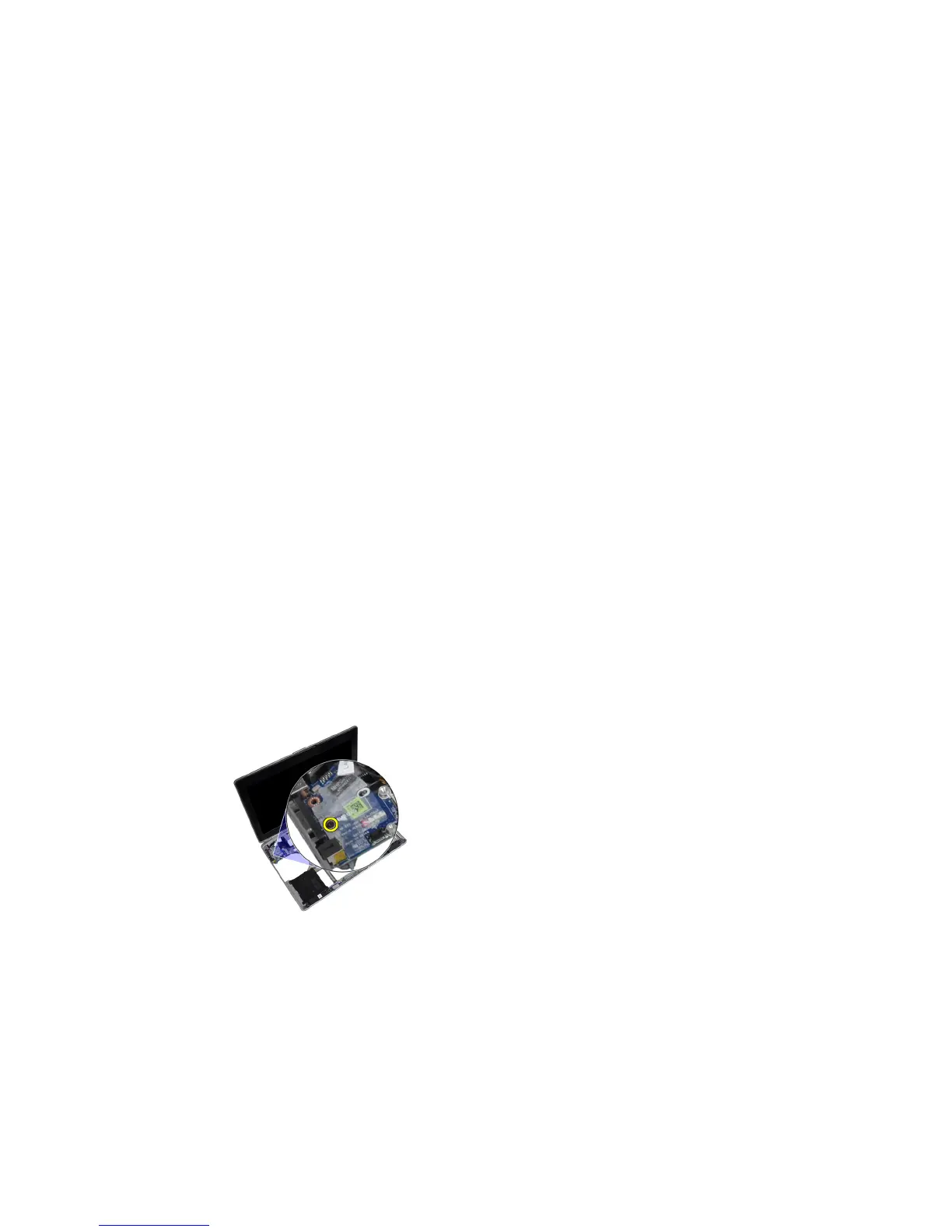

3. Remove the screw that secures the I/O board to the computer.
39
