Installing a Fan Module
1. Take the fan module out of the shipping box.
2. Use the grab handle to slide the fan module into the switch fan slot, as shown below.

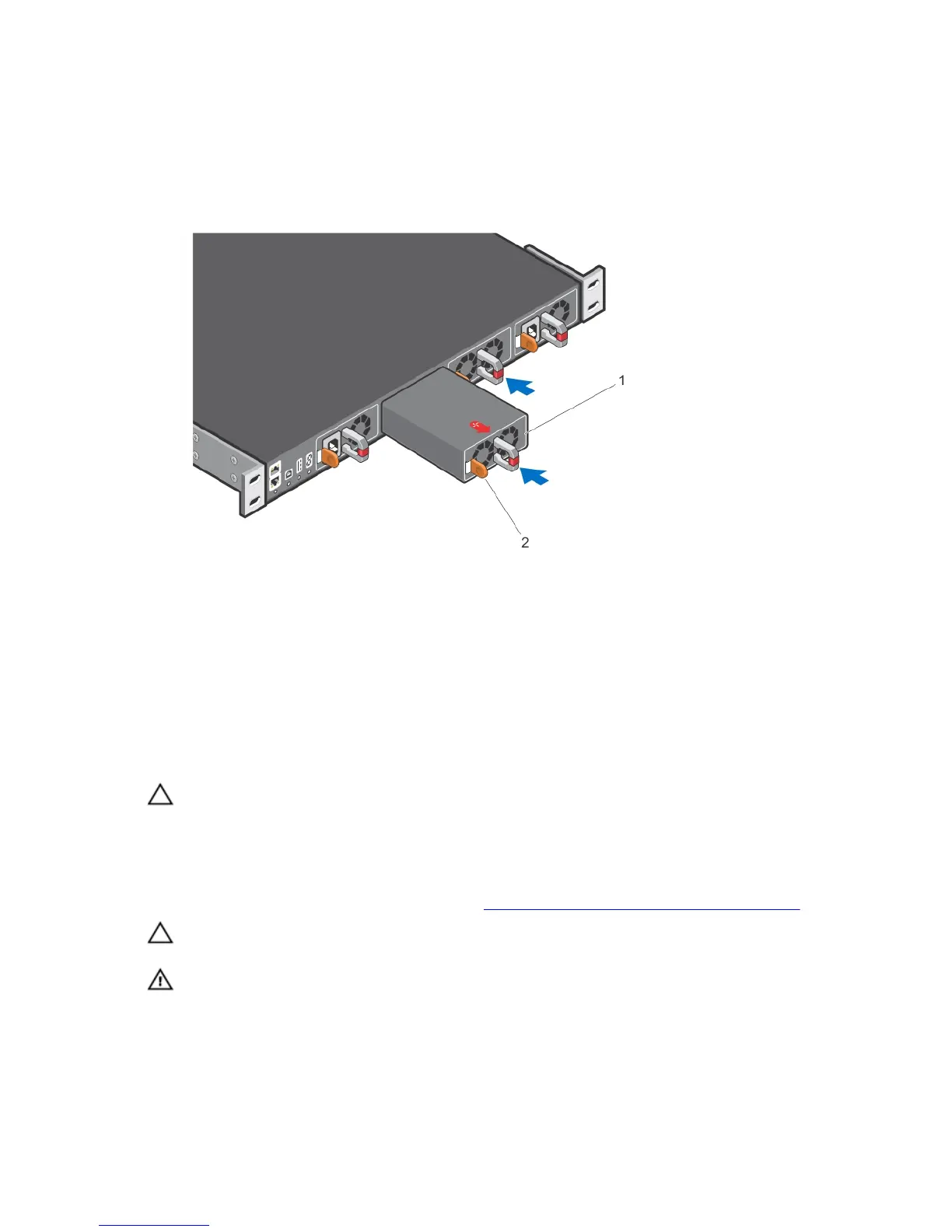

Figure 22. Installing a Fan Module
1. Fan module 0/Slot 1
2. Release latch
Replacing a Fan Module
1. Use the grab handle to slide the fan module out of the switch fan slot.
2. Use the grab handle on the replacement module to slide it into the switch fan slot.
CAUTION: You must complete steps 1 and 2 within one minute or the system powers down.
Installing the SFP+ and QSFP+ Optics
The S5000 has 48 small form-factor pluggable plus (SFP+) optical ports and four QSFP+ optical ports.
For a list of supported optics, refer to the S5000 data sheet: http://www.dell.com/us/enterprise/p/force10-s-series/pd.
CAUTION: ESD damage can occur if the components are mishandled. Always wear an ESD-preventive wrist or
heel ground strap when handling the S5000 and its components.
WARNING: When working with optical fibres, follow all the warning labels and always wear eye protection. Never
look directly into the end of a terminated or unterminated fibre or connector as it may cause eye damage.
1. Position the optic so it is in the correct position. The optic has a key that prevents it from being inserted incorrectly.
2. Insert the optic into the port until it gently snaps into place.
37
