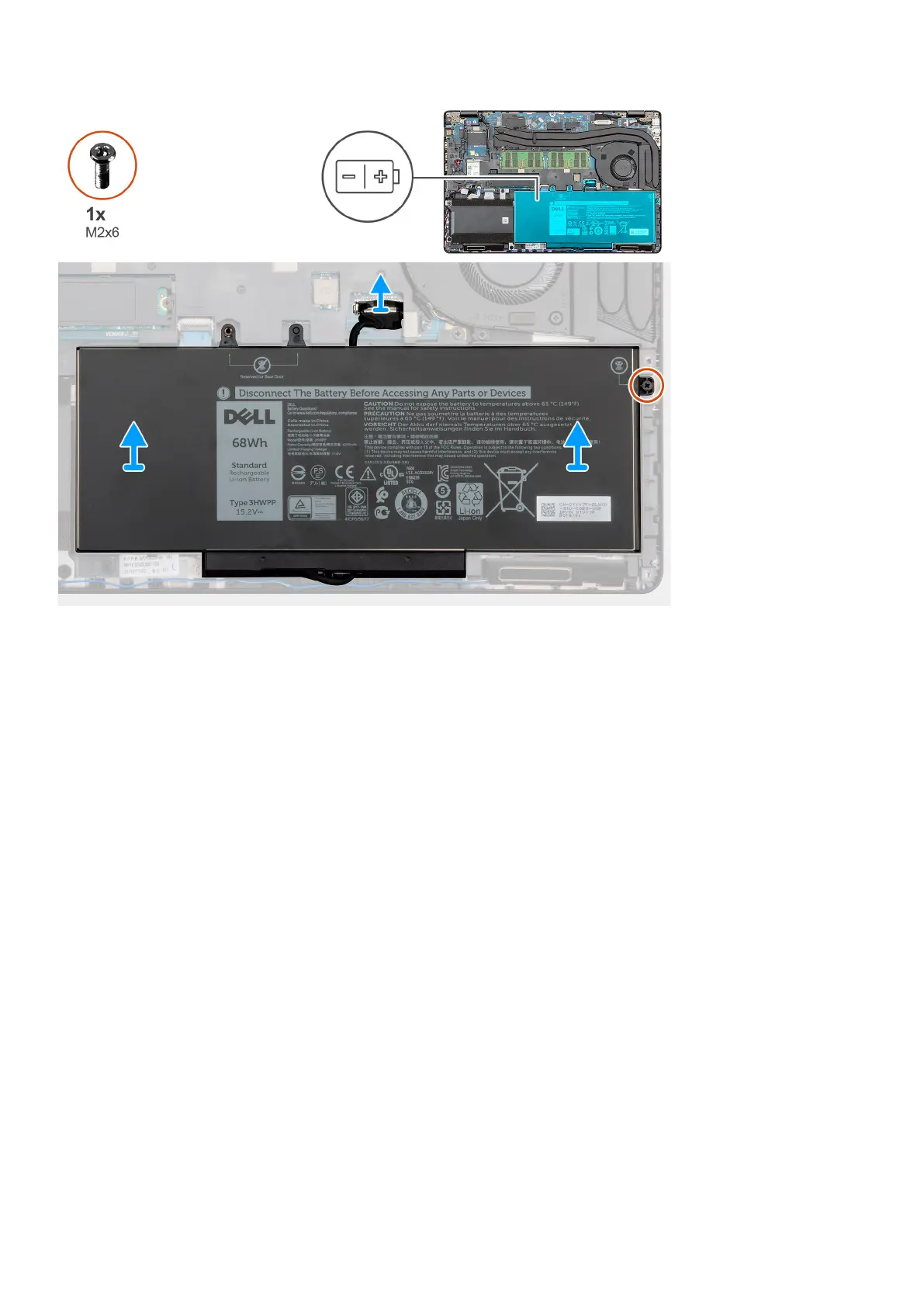

Steps
1. Disconnect the battery cable from the system board.
2. Remove the single (M2x6) captive screw that secures the battery computer.
3. Lift the battery off the computer.
Installing the battery
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The figure indicates the location of the battery and provides a visual representation of the installation procedure.
Disassembly and reassembly
27
