About this task

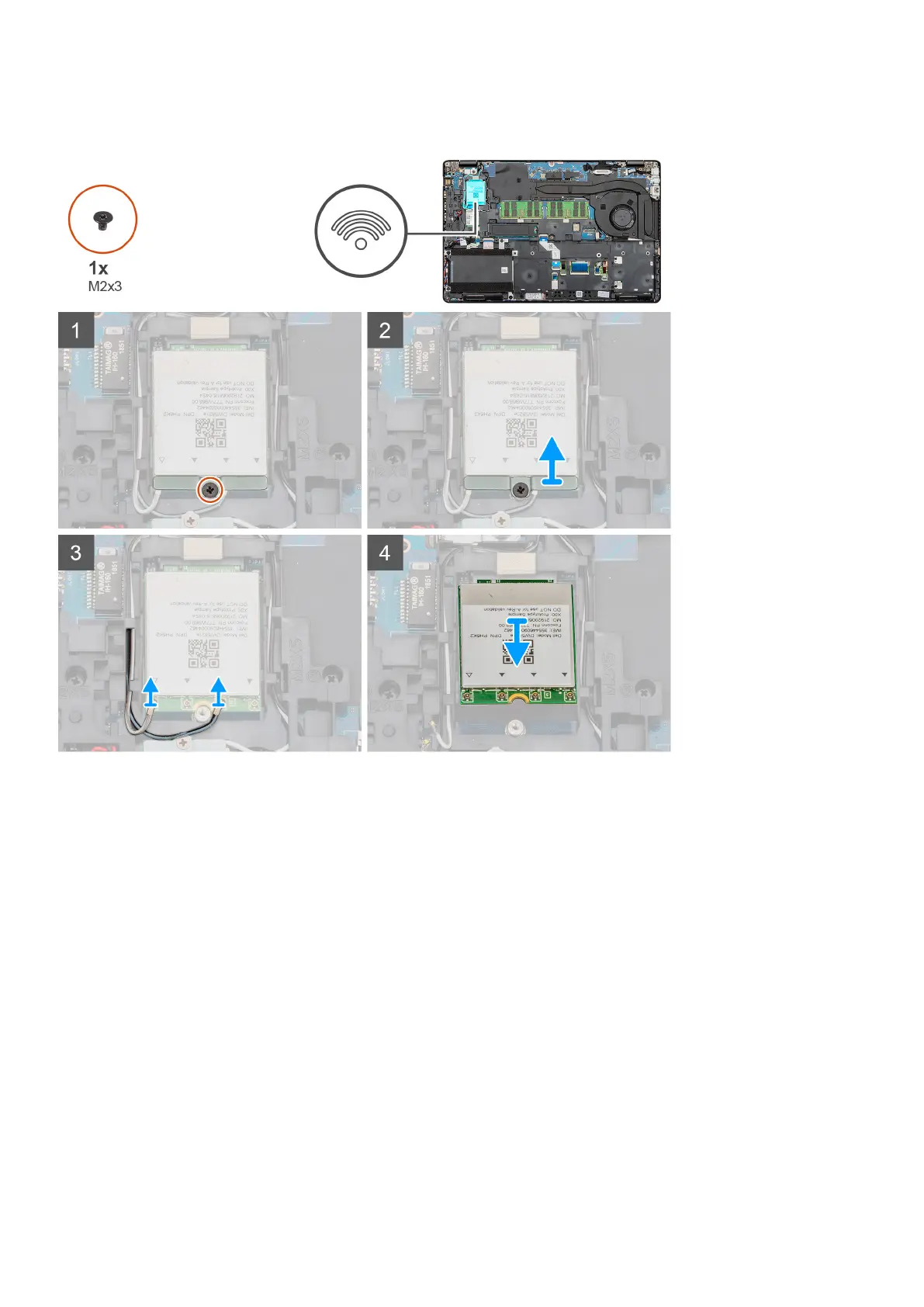

The figure indicates the location of the WWAN card and provides a visual representation of the removal procedure.
Steps
1. Locate the WWAN on your computer.
2. Remove the single (M2x3) screw that secures the WWAN metal bracket to the computer.
3. Lift the WWAN metal bracket away from the computer.
4. Disconnect the WWAN cables from the WWAN card module.
5. Slide the WWAN card out of the system.
Installing the WWAN
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The figure indicates the location of the WWAN card and provides a visual representation of the installation procedure.
Disassembly and reassembly
33
