Power button
Removing the power button with fingerprint reader
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the solid state drive.
5. Remove the HDD.
6. Remove the WLAN card.
7. Remove the WWAN card.
8. Remove the inner frame.
9. Remove the memory module.
10. Remove the system board.
NOTE: The system board can be removed along with the heat sink.
About this task

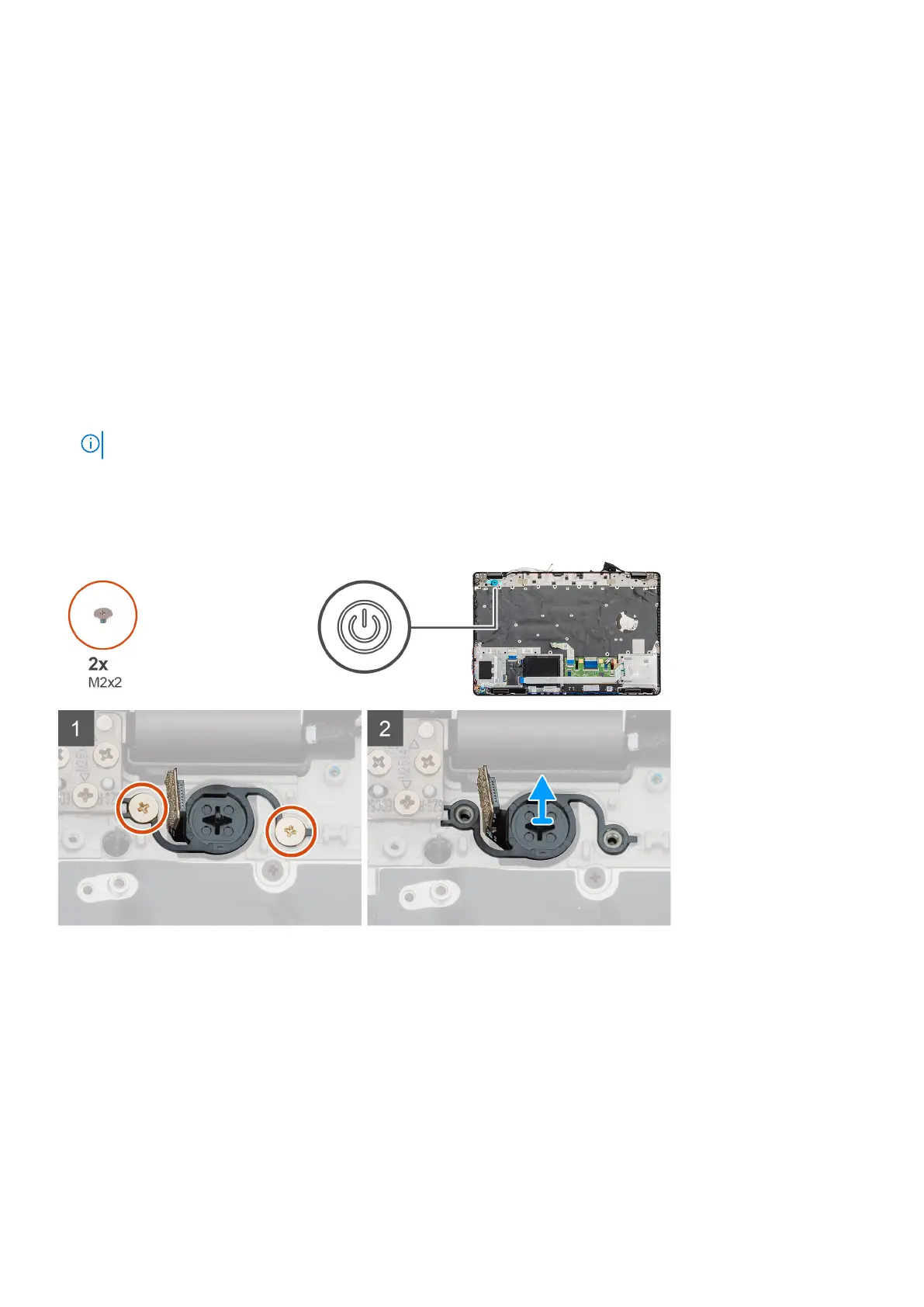

The figure indicates the location of the power button with fingerprint reader and provides a visual representation of the removal
procedure.
Steps
1. Locate the power button with fingerprint reader on your computer.
2. Remove the two (M2x2) screws that secure the power button to chassis of your computer.
3. Lift the power button with fingerprint out of the computer.
Installing the power button with fingerprint
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
Disassembly and reassembly
75
