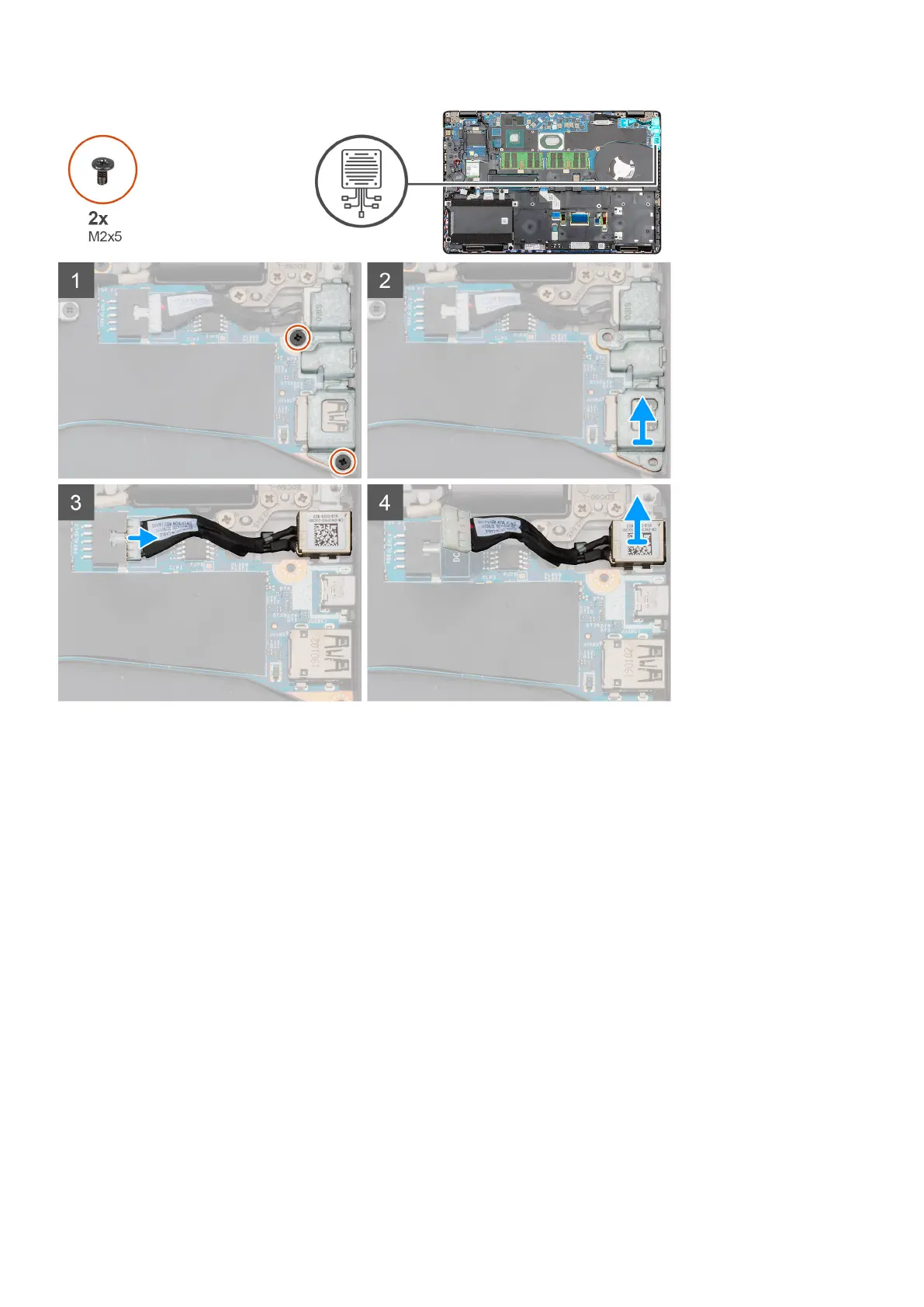

Steps
1. Locate the DC-in port on your computer.
2. Remove the two (M2x5) that secure the DC-in metal bracket.
3. Lift the DC-in metal bracket from the computer.
4. Disconnect the DC-in cable from the system board.
5. Remove the DC-in port from the computer.
Installing the DC-in
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The figure indicates the location of the DC-in and provides a visual representation of the installation procedure.
Disassembly and reassembly
39
