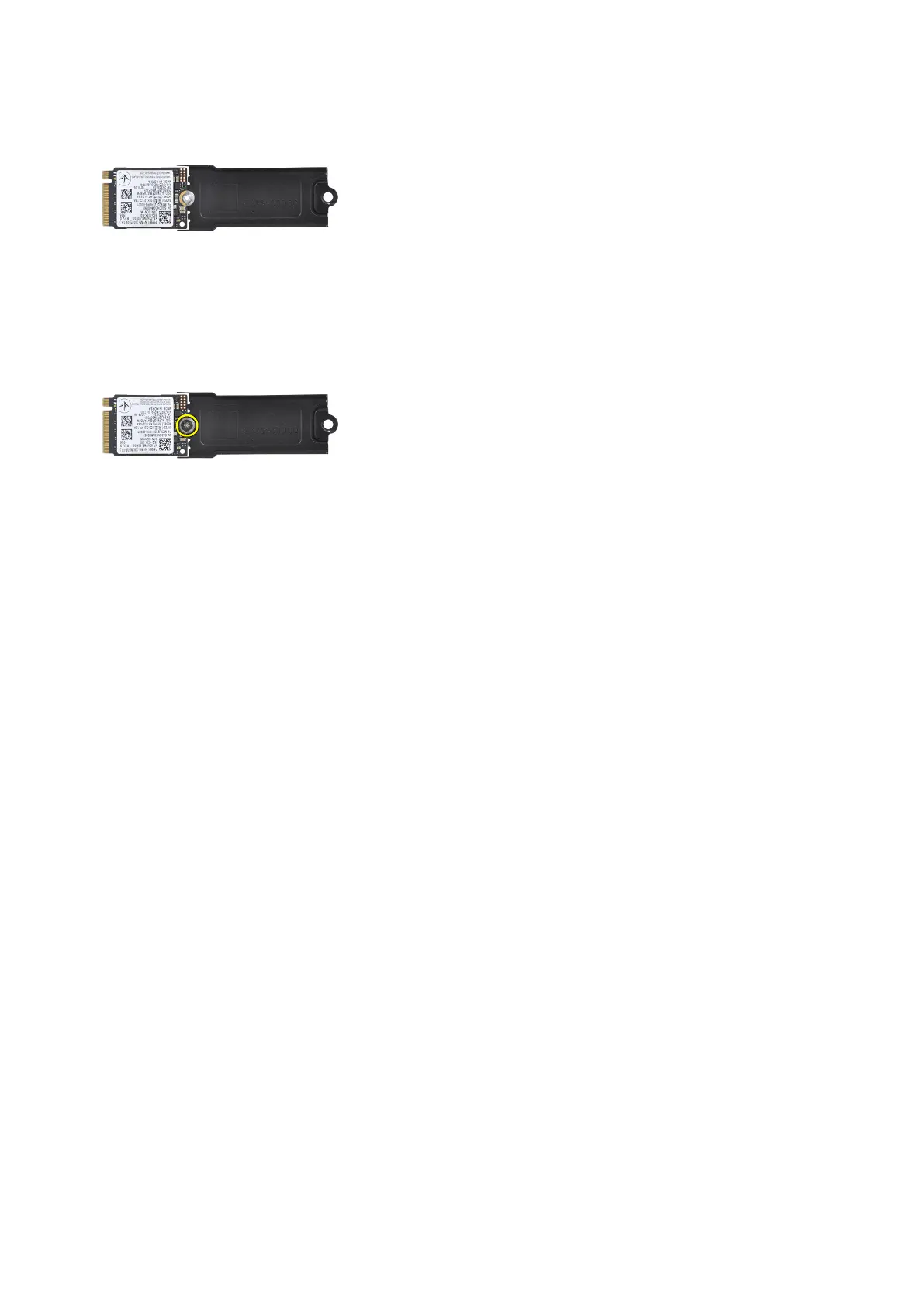

2. Secure the M.2 2230 solid-state drive to the bracket with a M2x2 screw.
3. To install the M.2 2230 solid-state drive card to the solid-state drive card slot1, see installing the solid state drive1. To install
the M.2 2230 solid-state drive card to the solid-state drive card slot2, see installing the solid state drive2.
Fans
Removing the right fan
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
The following images indicate the location of the right fan and provide a visual representation of the removal procedure.
