Steps
1. Carefully lift the actuator to open the LED board connector on the system board.
2. Slide the LED board cable out from the connector on the system board.
3. Gently peel the LED board cable that is adhered to the palm-rest and keyboard assembly.
4. Remove the LED board from the computer.
Installing the LED board
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

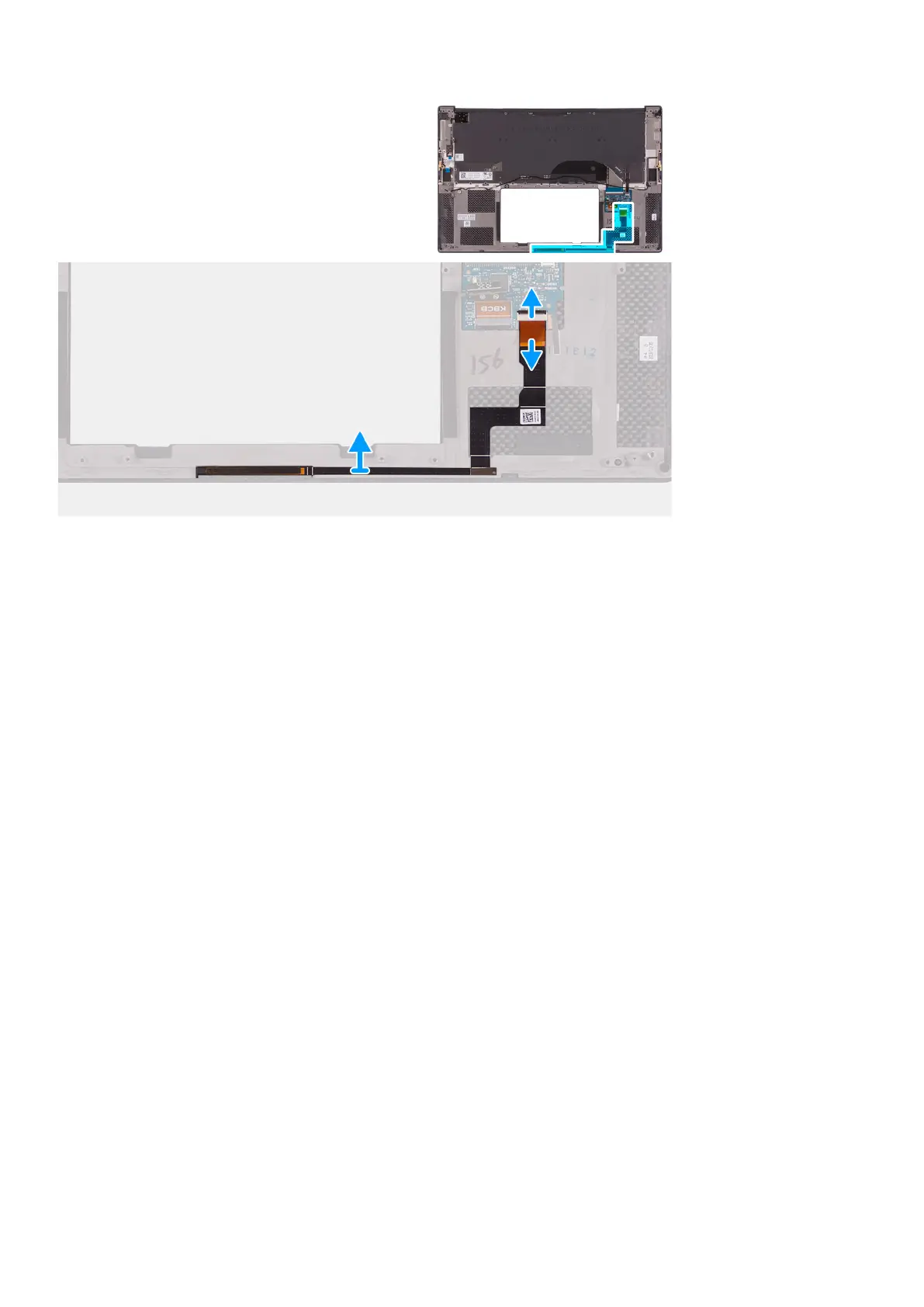

The following images indicate the location of the LED board and provide a visual representation of the installation procedure.
Removing and installing components
35
