Post-requisites
Replace the base cover.
Enable the Intel Optane memory after you replace the Intel Optane memory module. For more information about enabling the Intel
Op
tane memory, see
Enabling Intel Optane memory.
Procedure to move the screw mount
This computer supports two solid-state drive/Intel Optane memory module form factors:
• M.2 2230
• M.2 2280
If you are replacing the solid-state drive/Intel Optane memory module with another that has a dier
ent form factor, perform the following
procedure to move the screw mount to another location that accommodates the form factor.

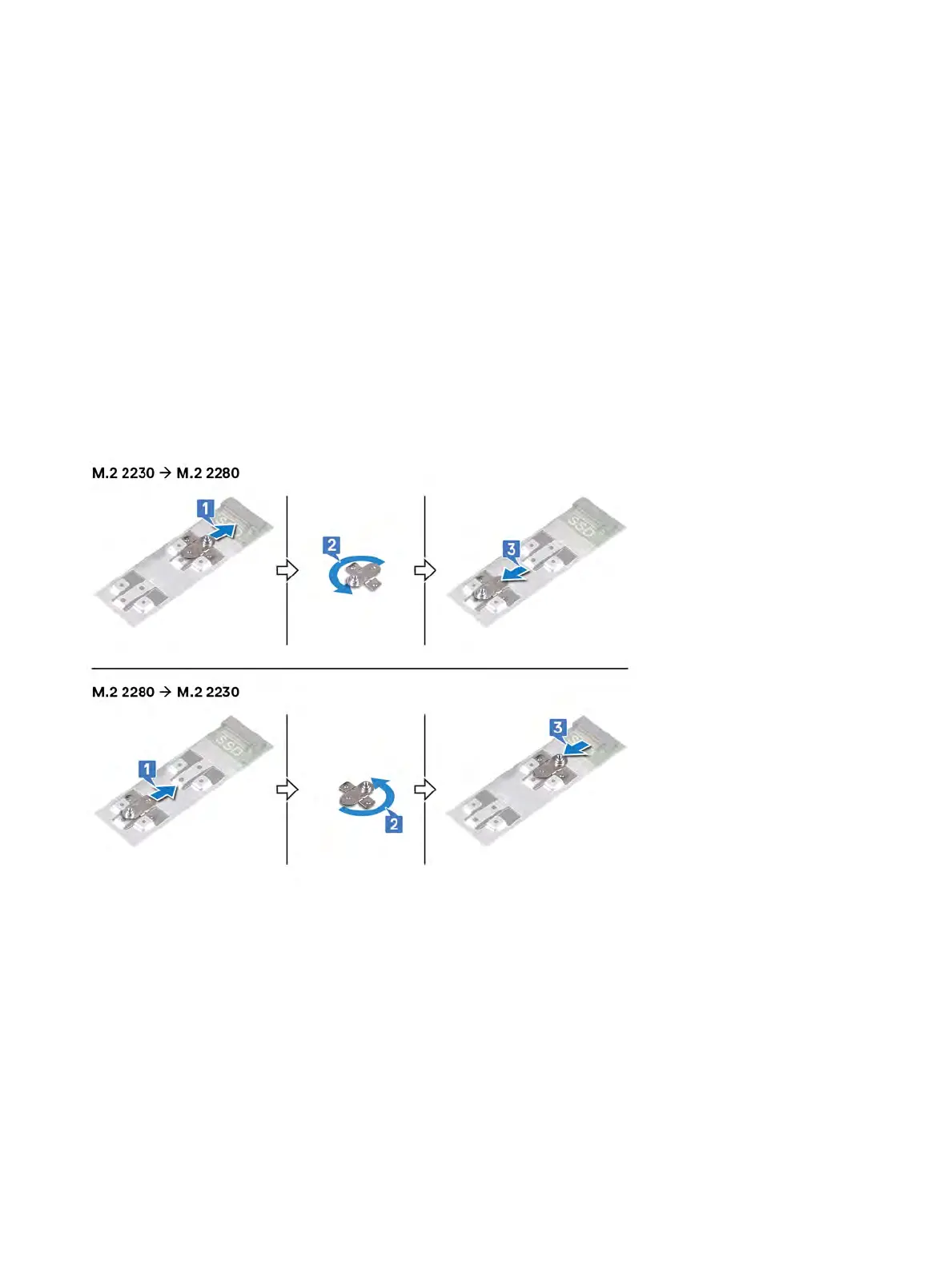

1 Slide the screw mount out of the screw mount slot on the palm-rest and keyboard assembly.
2 Turn the screw mount 180 degrees.
3 Insert the screw mount into the other screw mount slot on the palm-rest and keyboard assembly.
4 Align the notch on the solid-state drive/Intel Optane memory module with the tab on the solid-state drive/Intel Optane memory
module slo
t.
5 Slide the solid-state drive/Intel Optane memory module rmly in
to the solid-state drive/Intel Optane memory module slot at an angle.
6 Press the other end of the solid-state drive/Intel Optane memory module and replace the screw (M2x3) that secures the solid-state
driv
e/Intel Optane memory module to the palm-rest and keyboard assembly.
34 Replacing the solid-state drive/Intel Optane memory module
