Dell P93G User Manual

Replacing the heat sink
NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow
the steps in Before working inside your computer. After working inside your computer, follow the instructions in After
working inside your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
CAUTION: Incorrect alignment of the heat sink can damage the system board and processor.
NOTE: If either the system board or the heat sink is replaced, use the thermal pad/paste provided in the kit to ensure that
thermal conductivity is achieved.
Procedure

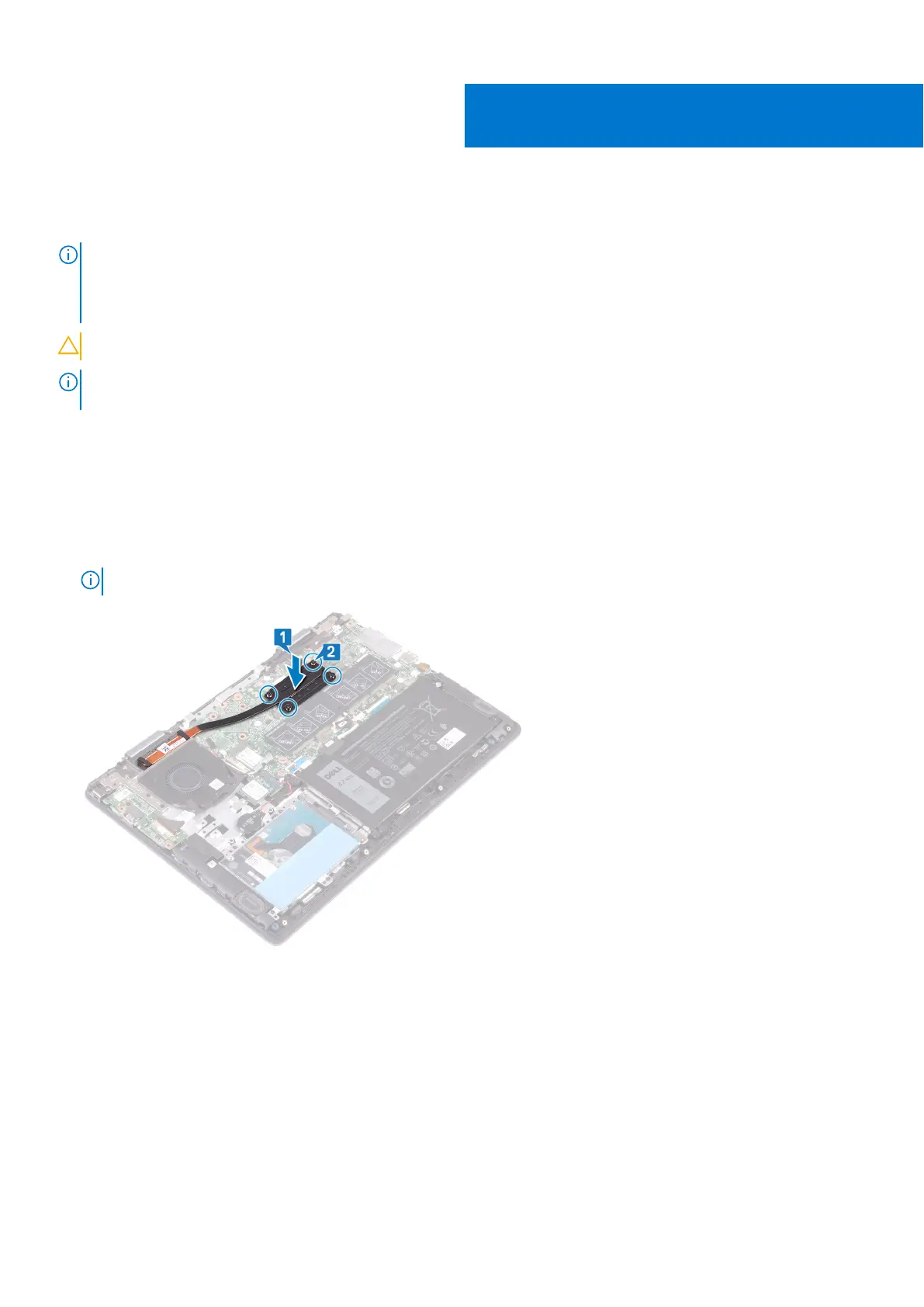

1. Place the heat sink on the system board as illustrated, aligning the screw holes on the heat sink with the screw holes on the
system board.
2. In sequential order (as indicated on the heat-sink), tighten the four captive screws that secure the heat sink to the system
board.
NOTE: The number of screws may vary depending on the configuration ordered.
Post-requisites
Replace the base cover.
19
42 Replacing the heat sink

Dell P93G Specifications

General

Model Name	Dell P93G
Category	Laptop
Operating System	Windows 10
Graphics	Intel UHD Graphics
Ports	1x Headphone/Microphone Combo Jack
Wireless	Bluetooth
