102 Installing System Components

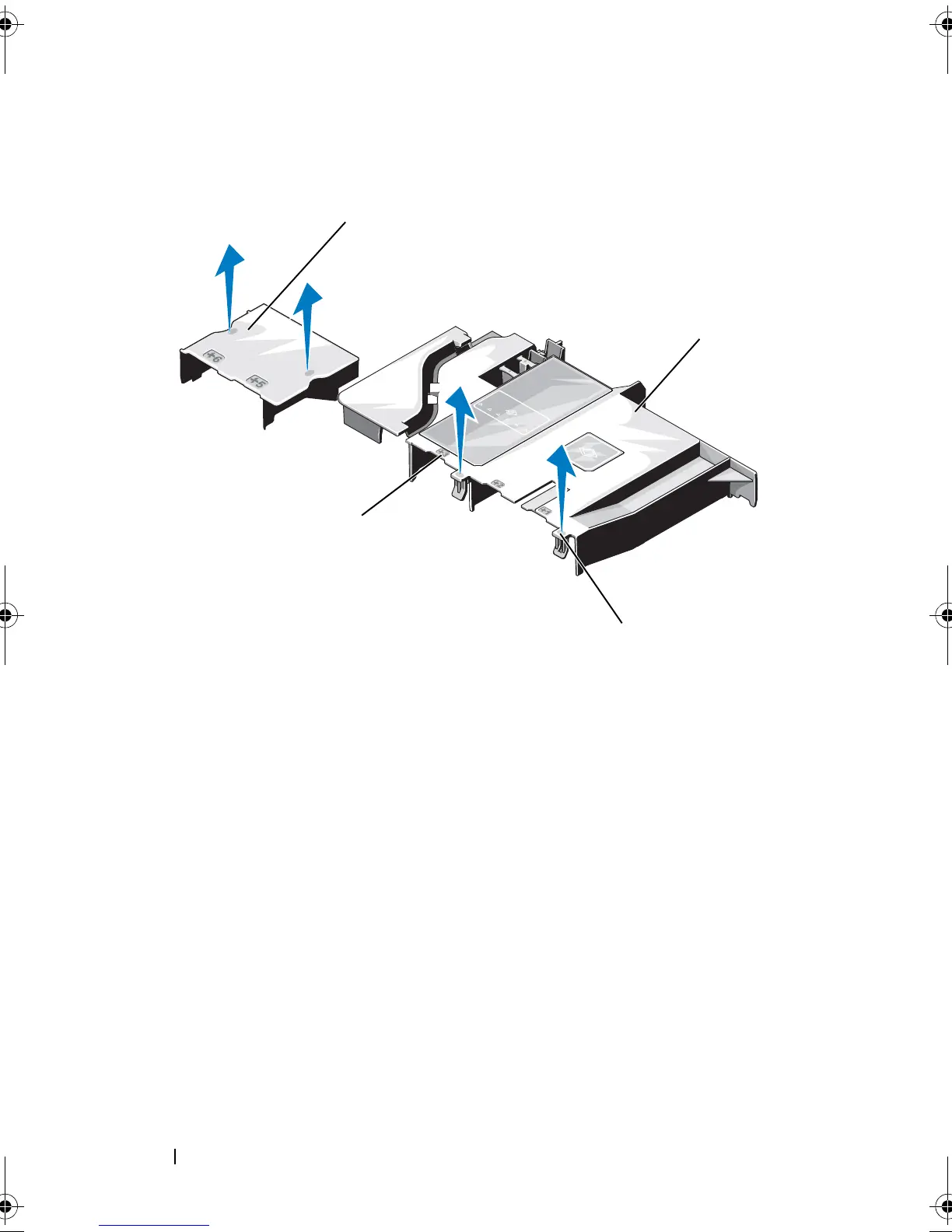

Figure 3-13. Installing and Removing the Cooling Shroud
Installing the Cooling Shroud
1
Orient the cooling shroud with the numbered fan bays as a guide.
2
Align the cooling shroud posts with the slots on the system board.
3
Push the
cooling shroud
down until all edges are secured to the system
board.
4
Close the system. See "Opening and Closing the System" on page 78.
1 power distribution board shroud 2 system board shroud
3 tabs (2) 4 fan bay numbers
