Installing System Components 77
Front Bezel (Optional)
1 Unlock the keylock at the left end of the bezel.
2 Lift up the release latch next to the key lock.
3 Rotate the left end of the bezel away from the front panel.
4 Unhook the right end of the bezel and pull the bezel away from
the system.

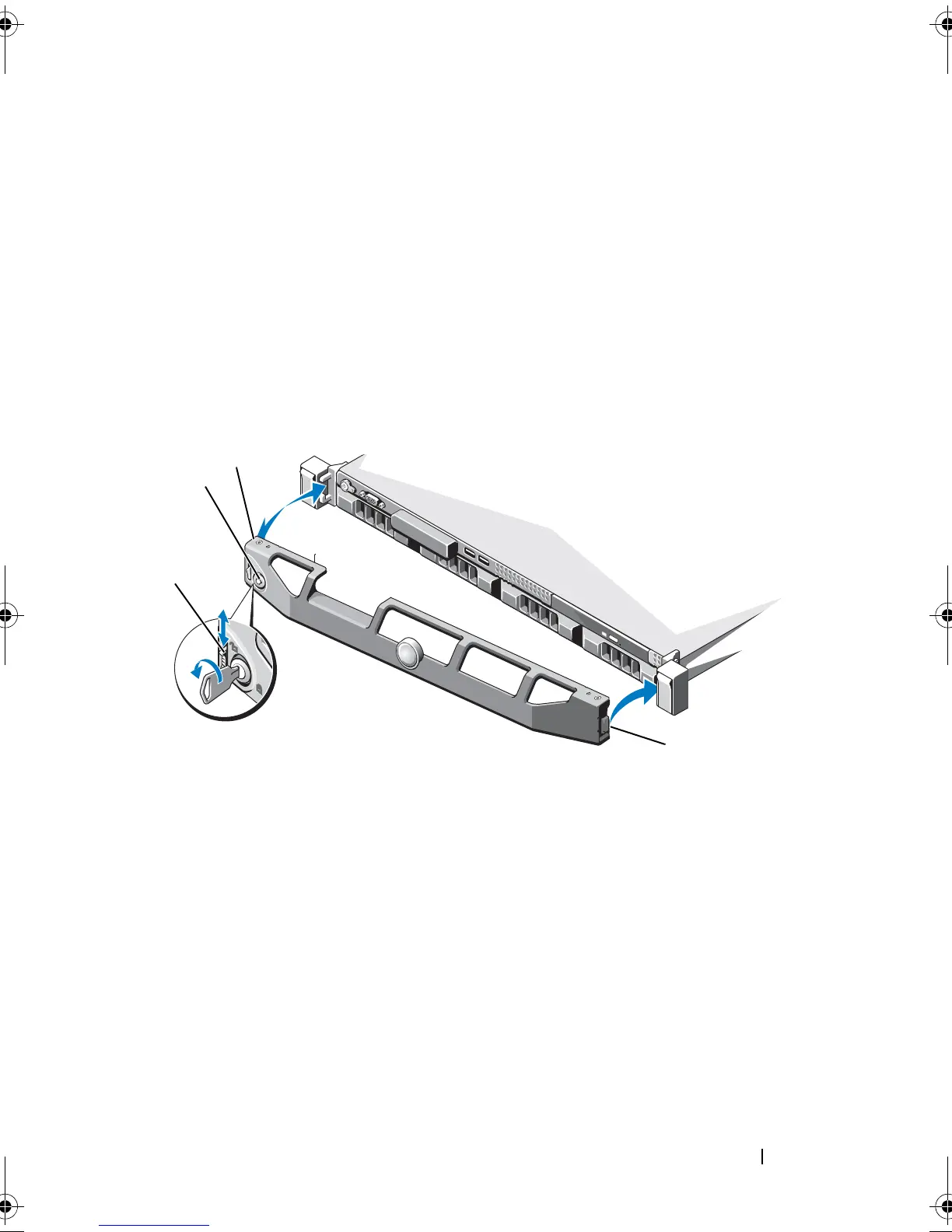

Figure 3-2. Removing and Replacing the Optional Front Bezel
To replace the optional bezel, hook the right end of the bezel onto the chassis,
then fit the free end of the bezel onto the system. Secure the bezel with the
keylock. See Figure 3-2.
1 release latch 2 keylock
3 front bezel 4 hinge tab
3
2
1
4
