3
Installing System Components
Recommended Tools
You may need the following items to perform the procedures in this section:
• Key to the system keylock
• #2 Phillips screwdriver
• T10 and T15 Torx screwdrivers
• Wrist grounding strap connected to ground
Front Bezel (Optional)
Installing The Front Bezel
1. Hook the right end of the bezel onto the chassis.
2. Fit the free end of the bezel onto the system.
3. Secure the bezel with the keylock.

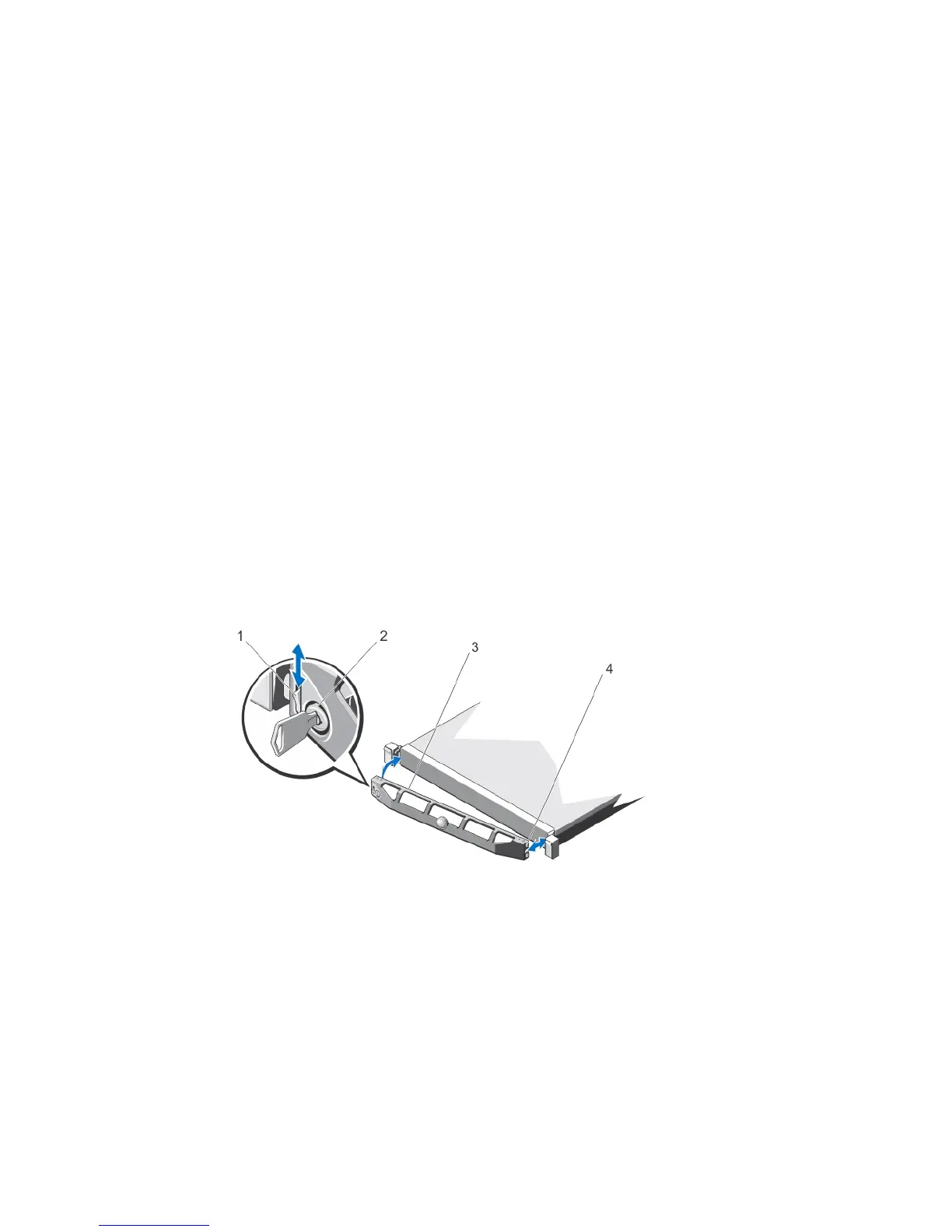

Figure 9. Installing and Removing the Front Bezel
1. release latch
2. keylock
3. front bezel
4. locking hook
37
