16 PowerEdge R720 and R720xd Technical Guide

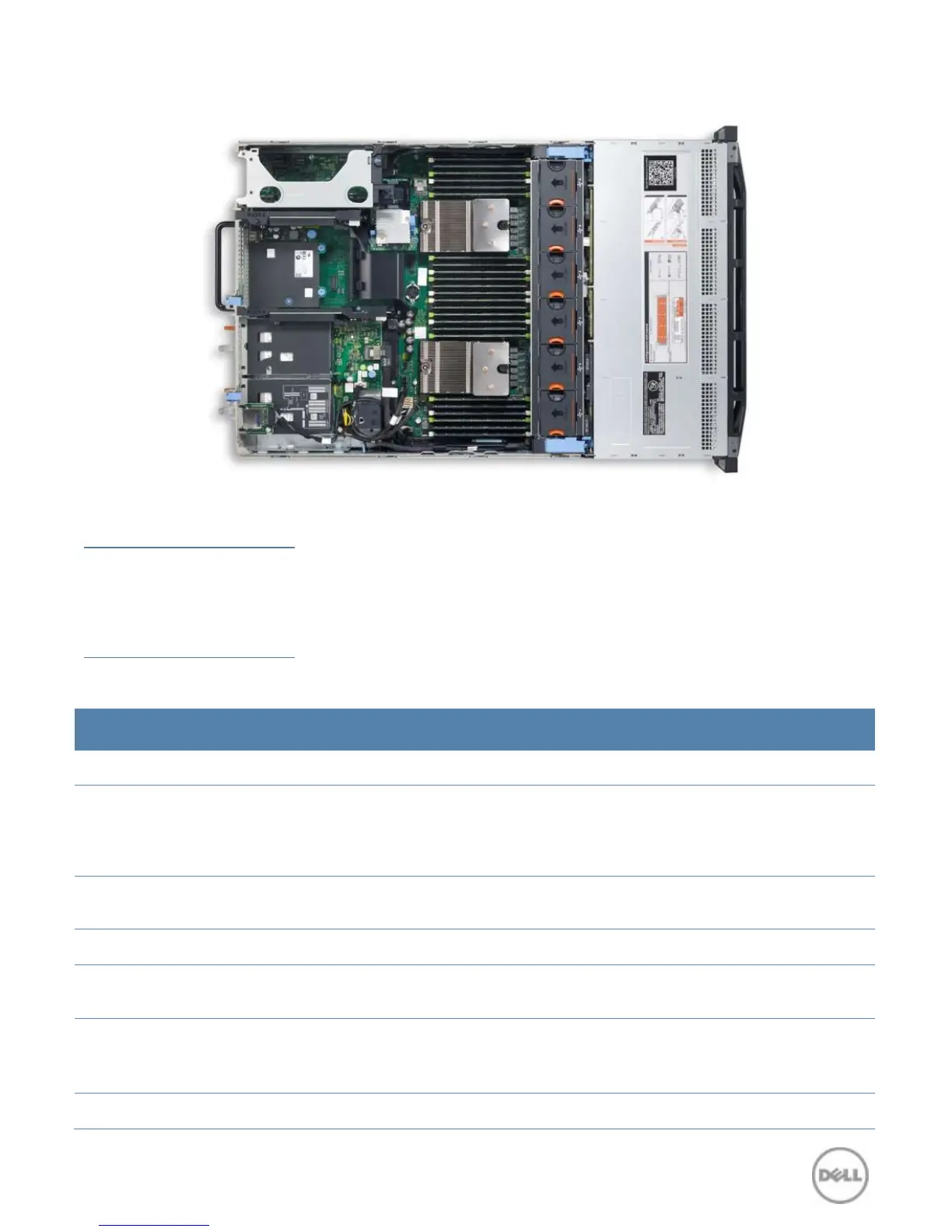

Figure 8. R720xd internal chassis view
For additional system views, see the
Dell PowerEdge R720 and R720xd Owner’s Manual
on
Dell.com/Support/Manuals.
Chassis features
Table 4 lists the chassis features for the R720 and R720xd systems. For additional information on
these features, see the
Dell PowerEdge R720 and R720xd Owner’s Manual
on
Dell.com/Support/Manuals.
Table 4. Chassis features
Power button and indicator
ACPI-complaint power button with an integrated green power LED
Recessed non-maskable interrupt (NMI) button used to troubleshoot
software and device driver errors; use only if directed to do so by
qualified support personnel or by the operating system's
documentation
System identification button
Buttons on the back and front of a system to help identify the unit in a
data center environment
Indicate the status and activity of the hard drives
Two (R720) or one (R720xd) front, two back, and one internal USB
connector
Supports one vFlash media card (the R720 slot is located in the front of
the system and the R720x slot is located in the back); functionality is
activated only when iDRAC7 Enterprise is enabled
Connects a monitor to the system
