43 PowerEdge R720 and R720xd Technical Guide
9 Rack rails and cable management
The rack rail systems for the Dell PowerEdge R720 and R720xd provide tool-less support for
4-post racks with square or unthreaded round mounting holes, including all generations of Dell
racks. Compared to the predecessor R710 sliding rails that required the use of adapter brackets, the
sliding rails for the R720 and R720xd now offer native support for threaded-hole racks with the new
ReadyRails II mounting interface.
The optional cable management arm (CMA) can be mounted on either the left or right side of the
sliding rails without the use of tools for fast and easy deployment.
Sliding and static rail systems
The R720 and R720xd support both sliding rails and static rails. Both rails have a new slim rail design
that supports the wide system chassis.
The sliding rails (shown in Figure 14) allow the system to be fully extended out of the rack for service
and are available with or without the optional CMA.

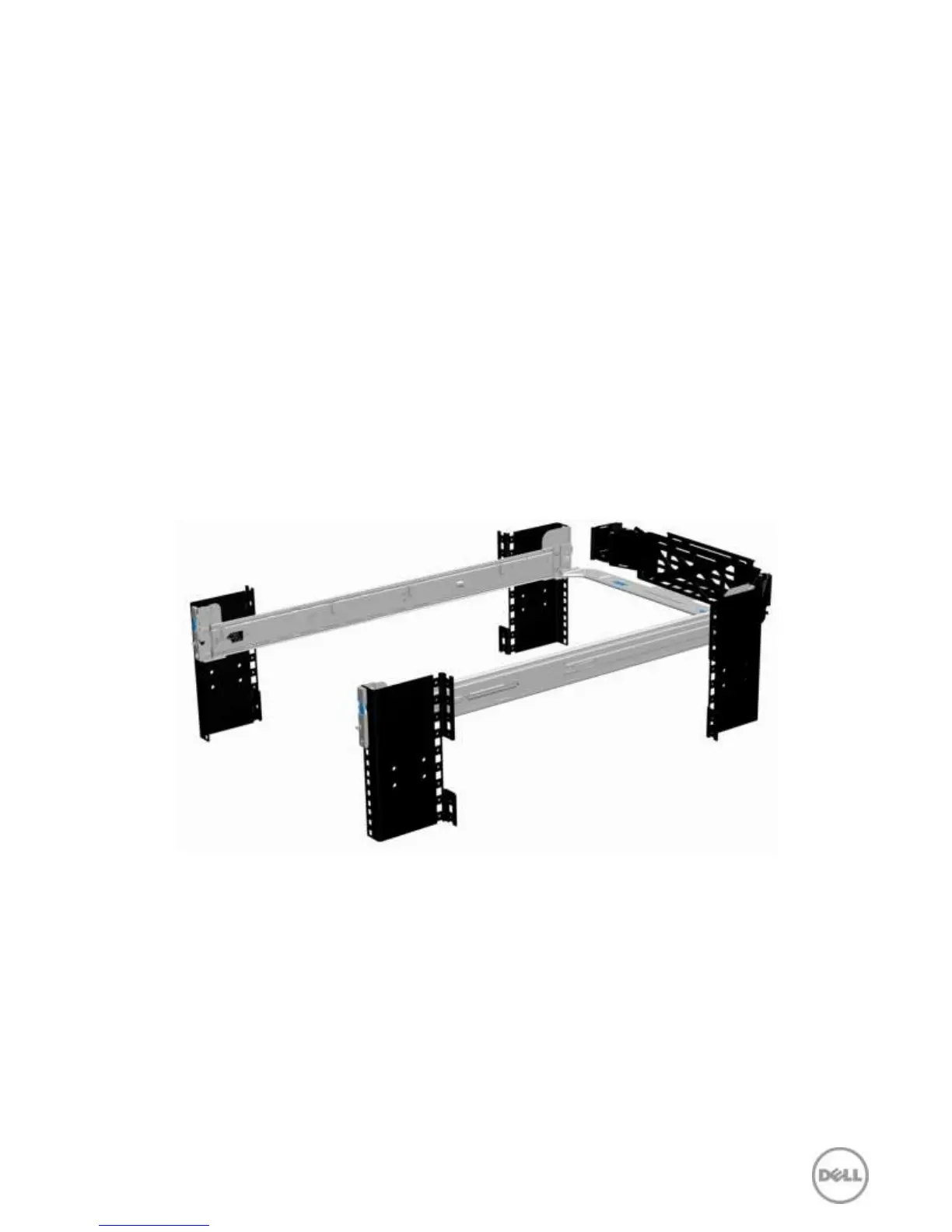

Figure 14. Sliding rails with optional CMA

Dell PowerEdge R720 Specifications

General

Tcase	77.4 °C
Bus type	QPI
Stepping	C2
FSB Parity	No
Scalability	2S
Processor cache	15 MB
Processor cores	6
Processor model	E5-2620
System bus rate	7.2 GT/s
Processor series	Intel Xeon E5-2600
Processor socket	LGA 2011 (Socket R)
Processor threads	12
Processor codename	Sandy Bridge EP
Motherboard chipset	Intel C600
Number of QPI links	2
Processor frequency	2 GHz
Processor cache type	Smart Cache
Processor manufacturer	Intel
Processor package size	52.5 x 45.0 mm
Processor front side bus	- MHz
Processor boost frequency	2.5 GHz
Processor operating modes	64-bit
ECC supported by processor	Yes
Graphics & IMC lithography	32 nm
PCI Express configurations	x4, x8, x16
Supported instruction sets	AVX
Thermal Design Power (TDP)	95 W
Number of processors installed	1
CPU multiplier (bus/core ratio)	25
Physical Address Extension (PAE)	46 bit
Maximum number of PCI Express lanes	40
Memory types supported by processor	DDR3-SDRAM
Memory channels supported by processor	Quad
Memory clock speeds supported by processor	800, 1066, 1333 MHz
Memory bandwidth supported by processor (max)	42.6 GB/s
Maximum internal memory supported by processor	750 GB
HDD size	2.5 \
Optical drive type	DVD-RW
Total storage capacity	- GB
Maximum storage capacity	32 TB
Number of HDDs installed	-
Number of HDDs supported	8
Memory slots	24x DIMM
Internal memory	8 GB
Memory clock speed	1333 MHz
Maximum internal memory	768 GB
Cabling technology	10/100/1000Base-T(X)
USB 2.0 ports quantity	4
PCI Express slots version	3.0
Power supply	750 W
Compatible operating systems	Microsoft Windows Server 2012 \\r Microsoft Windows Server 2012 Essentials\\r Microsoft Windows Server 2008 R2 \\r Novell SUSE Linux Enterprise Server\\r Red Hat Enterprise Linux
Sustainability certificates	ENERGY STAR
Chassis type	Rack (2U)
Processor ARK ID	64594
Intel® Turbo Boost Technology	1.0
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	0.00

Weight and Dimensions

Width	- mm
