Dell Precision 3540 User Manual

Next steps
1. Install the camera.
2. Install the display panel.
3. Install the display hinges.
4. Install the hinge caps.
5. Install the display bezel.
6. Install the display assembly.
7. Install the battery.
8. Install the base cover.
9. Install the microSD card.
10. Follow the procedure in after working inside your computer.
Display back cover assembly

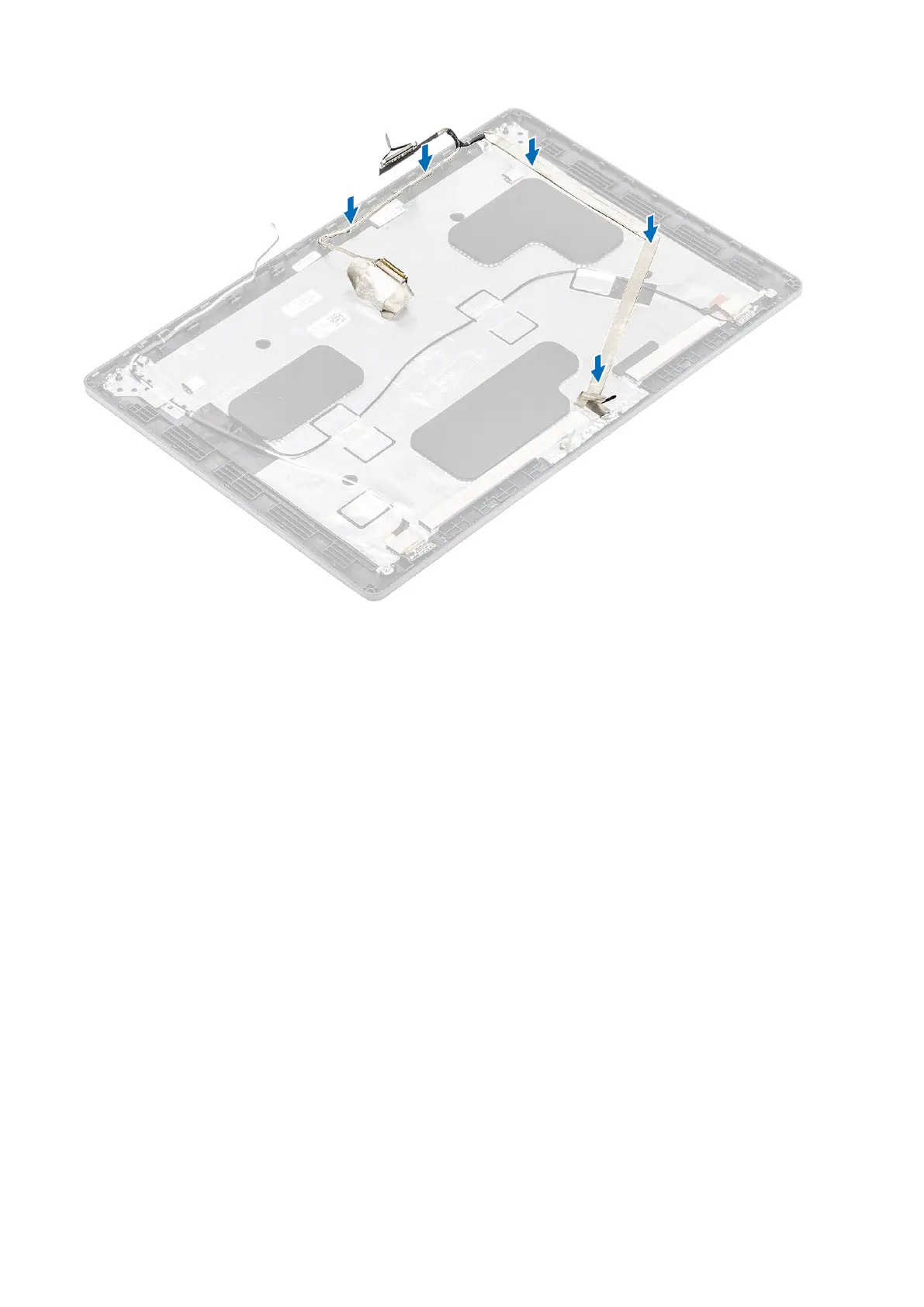

Replacing the display back cover
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the microSD card.
3. Remove the base cover.
4. Remove the battery.
5. Remove the display assembly
6. Remove the display bezel.
7. Remove the hinge caps.
8. Remove the display hinges.
9. Remove the display panel.
Disassembly and reassembly
111

Dell Precision 3540 Specifications

General

Operating System	Windows 10 Pro
Graphics	AMD Radeon Pro WX 2100
Display	15.6-inch FHD (1920 x 1080)
RAM	DDR4
Storage	SSD
Battery	4-cell 68Whr
Ports	HDMI, RJ-45, SD card reader
Wireless	Intel Dual Band Wireless AC 9560
Processor	8th Generation Intel Core i5/i7/i9
