Dell Precision 3540 User Manual

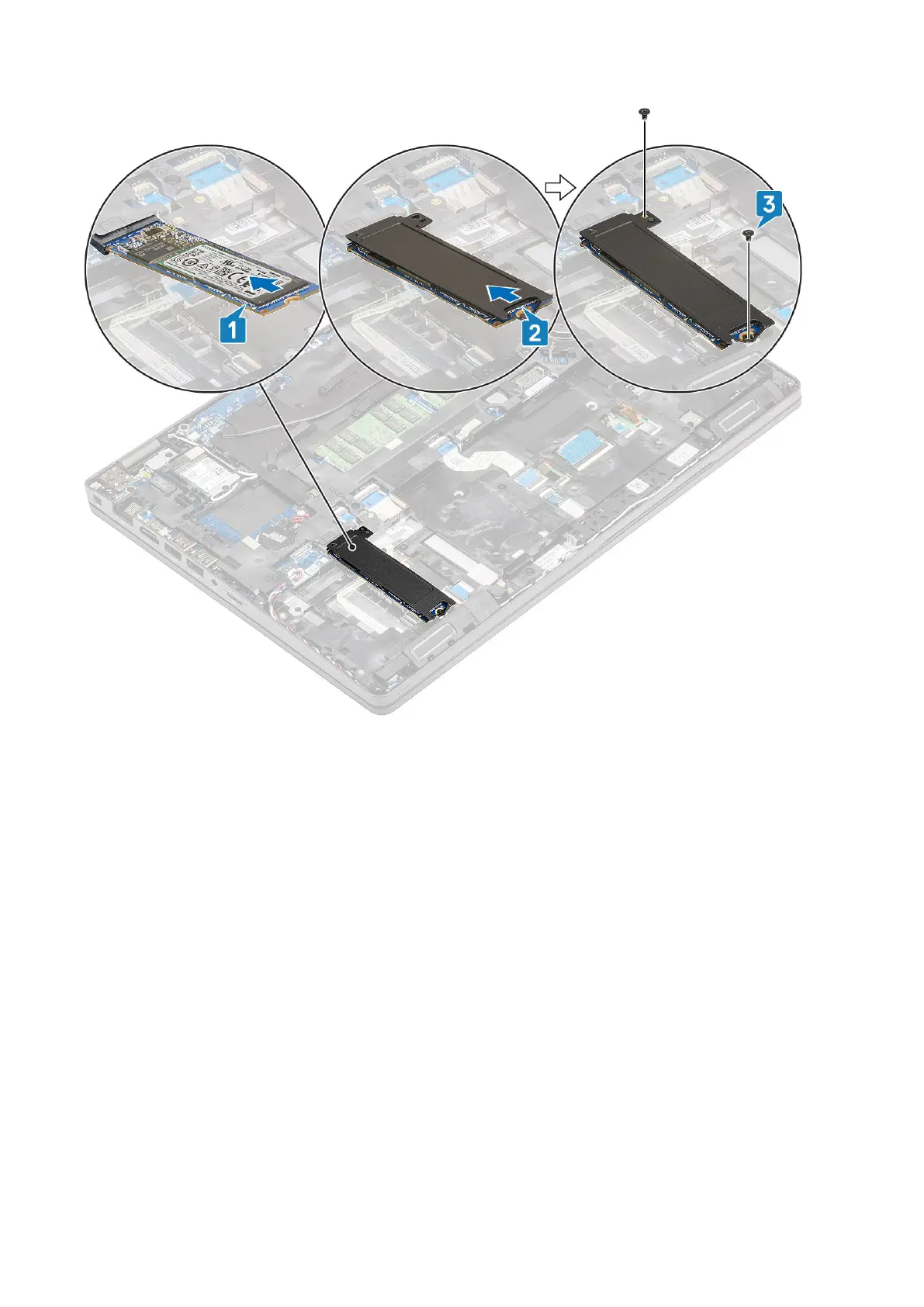

Next steps
1. Install the battery.
2. Install the base cover.
3. Install the microSD card.
4. Follow the procedure in after working inside your computer.
Solid state drive bracket
Removing the solid state drive bracket
Prerequisites
1. Follow the procedure in before working inside your computer
2. Remove the microSD card.
3. Remove the base cover.
4. Remove the battery.
5. Remove the ssd.
Steps
Remove the single screw that secures the bracket to the computer [1] and lift it out of the computer [2].
36
Disassembly and reassembly

Dell Precision 3540 Specifications

General

Operating System	Windows 10 Pro
Graphics	AMD Radeon Pro WX 2100
Display	15.6-inch FHD (1920 x 1080)
RAM	DDR4
Storage	SSD
Battery	4-cell 68Whr
Ports	HDMI, RJ-45, SD card reader
Wireless	Intel Dual Band Wireless AC 9560
Processor	8th Generation Intel Core i5/i7/i9
