Dell Precision Mobile Workstation M4800 User Manual

Installing the Processor Fan

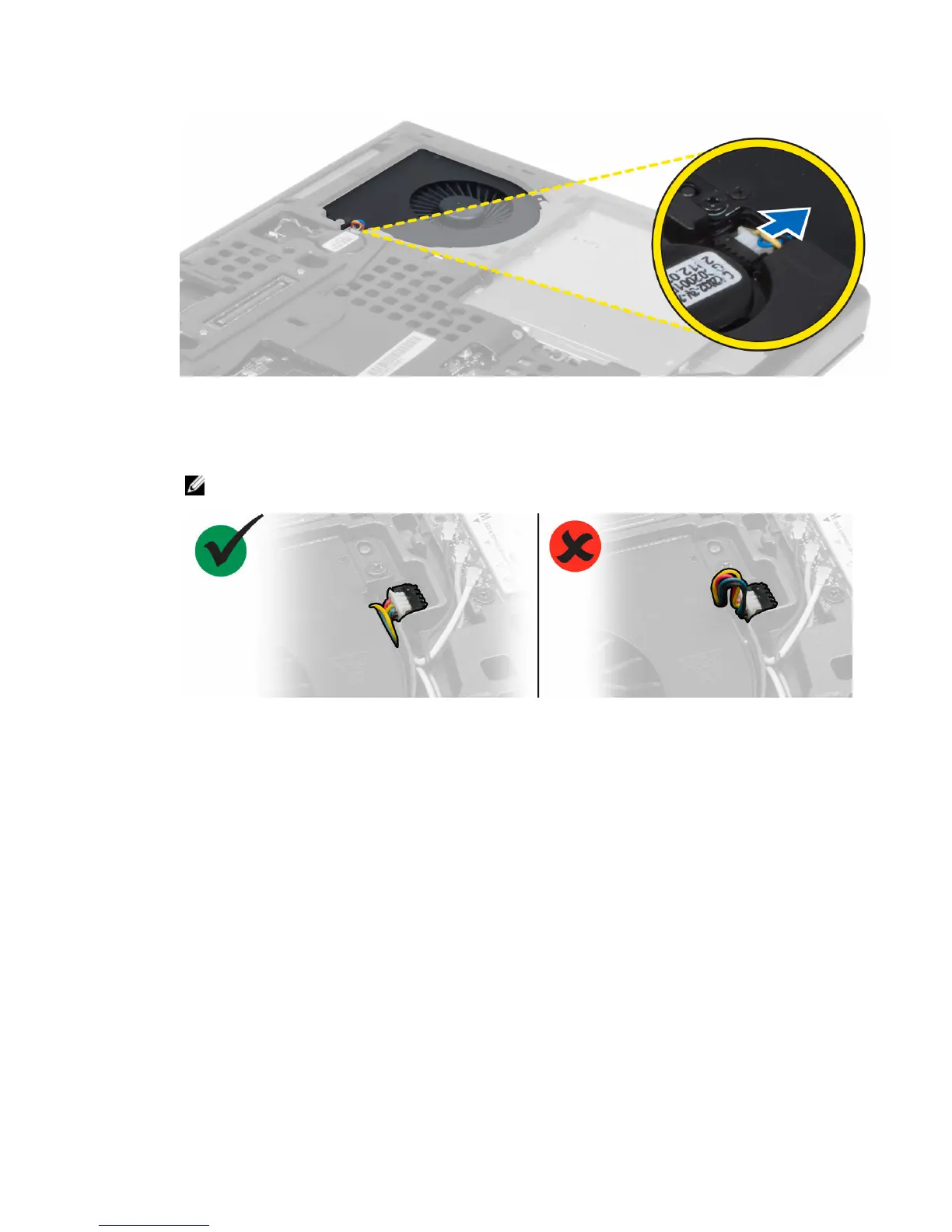

1. Connect the processor-fan cable.
NOTE: Ensure that the processor-fan cable does not protrude outside its compartment.
2. Insert the processor fan into its slot in the computer.
3. Tighten the screws that secure the processor fan to the computer.
4. Install the:
a. base cover
b. battery
5. Follow the procedures in After Working Inside Your Computer.
Removing the Video-Card Fan
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the:
a. battery
b. base cover
3. Perform the following steps to remove the video-card fan.
a. Disconnect the video-card fan cable.
b. Remove the screws that secure the video-card fan to the computer.
c. Remove the video-card fan from the computer.
26

Dell Precision Mobile Workstation M4800 Specifications

General

Screen Size	15.6 inches
Graphics	NVIDIA Quadro K2100M
Display	15.6" FHD (1920x1080)
Memory	Up to 32GB DDR3L at 1600MHz
Storage	Up to 512GB SSD
Operating System	Windows 7 Professional, Windows 8.1 Pro
Weight	Starting at 2.88 kg
CPU	Intel Core i7-4800MQ (2.7GHz, up to 3.7GHz, 6MB cache)
GPU	NVIDIA Quadro K1100M, K2100M; AMD FirePro M5100
Ports	4 x USB 3.0, HDMI, VGA, RJ-45, headphone/microphone combo
Wireless	Intel Dual Band Wireless-AC 7260, Bluetooth 4.0
Battery	9-cell (97Whr) lithium-ion
Security	Smart card reader, fingerprint reader
Optical Drive	DVD-ROM, DVD+/-RW
Processor	4th Generation Intel Core i5 and Core i7 Processor Options
