Dell Precision Mobile Workstation M4800 User Manual

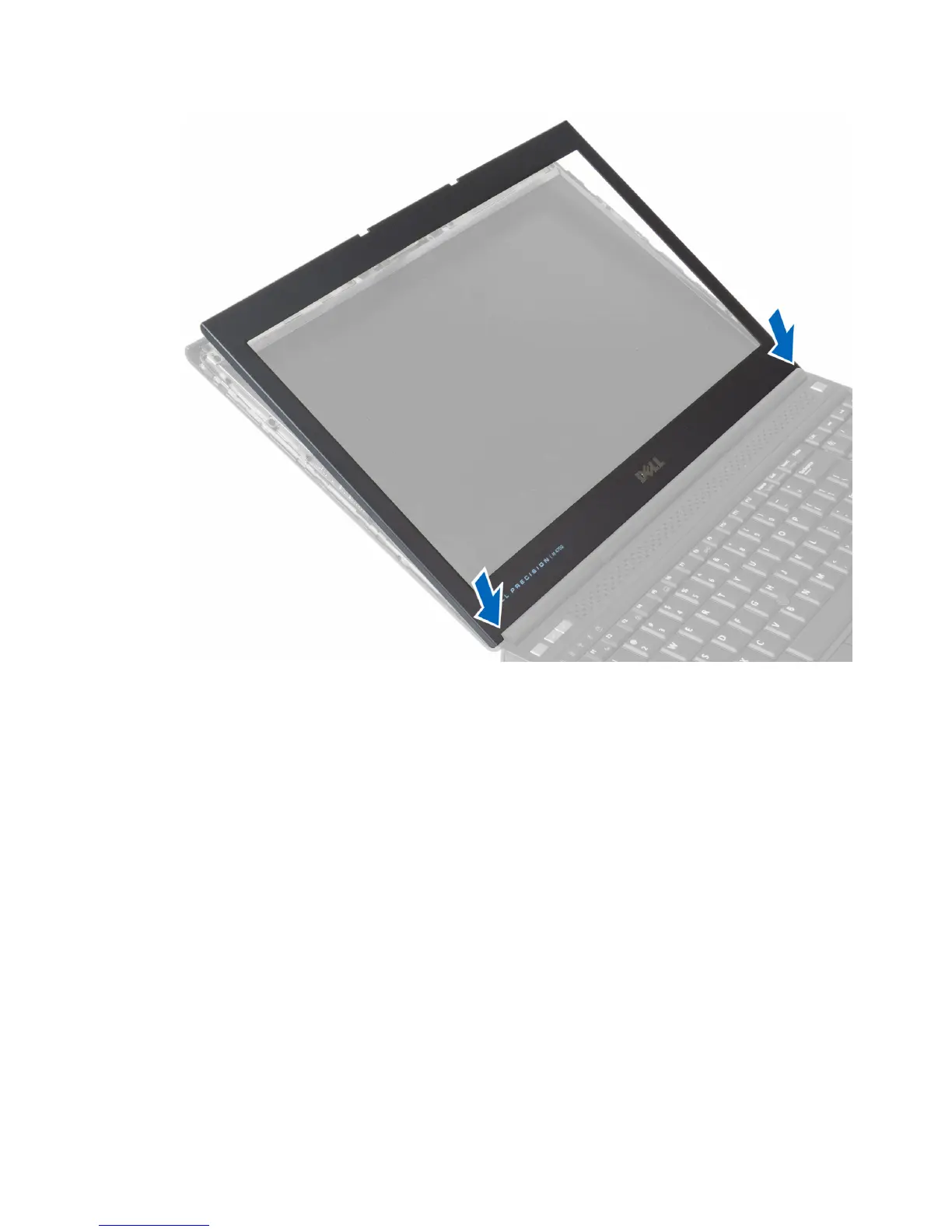

2. Work around the entire bezel until it snaps onto the display assembly.
3. Install the battery.
4. Follow the procedures in After Working Inside Your Computer.
Removing the Display Panel
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the:
a. battery
b. display bezel
3. Remove the screw that secures the display panel to the display assembly. Flip the display panel over.
51

Dell Precision Mobile Workstation M4800 Specifications

General

Screen Size	15.6 inches
Graphics	NVIDIA Quadro K2100M
Display	15.6" FHD (1920x1080)
Memory	Up to 32GB DDR3L at 1600MHz
Storage	Up to 512GB SSD
Operating System	Windows 7 Professional, Windows 8.1 Pro
Weight	Starting at 2.88 kg
CPU	Intel Core i7-4800MQ (2.7GHz, up to 3.7GHz, 6MB cache)
GPU	NVIDIA Quadro K1100M, K2100M; AMD FirePro M5100
Ports	4 x USB 3.0, HDMI, VGA, RJ-45, headphone/microphone combo
Wireless	Intel Dual Band Wireless-AC 7260, Bluetooth 4.0
Battery	9-cell (97Whr) lithium-ion
Security	Smart card reader, fingerprint reader
Optical Drive	DVD-ROM, DVD+/-RW
Processor	4th Generation Intel Core i5 and Core i7 Processor Options
