Dell Precision Mobile Workstation M4800 User Manual

Installing the Switch Board
1. Align the switch board to its original position on the computer.
2. Tighten the screws to secure the switch board to the computer.
3. Connect the switch-board cable to the system board and secure it through the routing channel.
4. Install the:
a. palmrest
b. hard drive
c. optical drive
d. keyboard
e. keyboard trim
f. base cover
g. battery
5. Follow the procedures in After Working Inside Your Computer.
Removing the Unified Security Hub (USH) Board
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the:
a. battery
b. base cover
c. keyboard trim
d. keyboard
e. optical drive
f. hard drive
g. palmrest

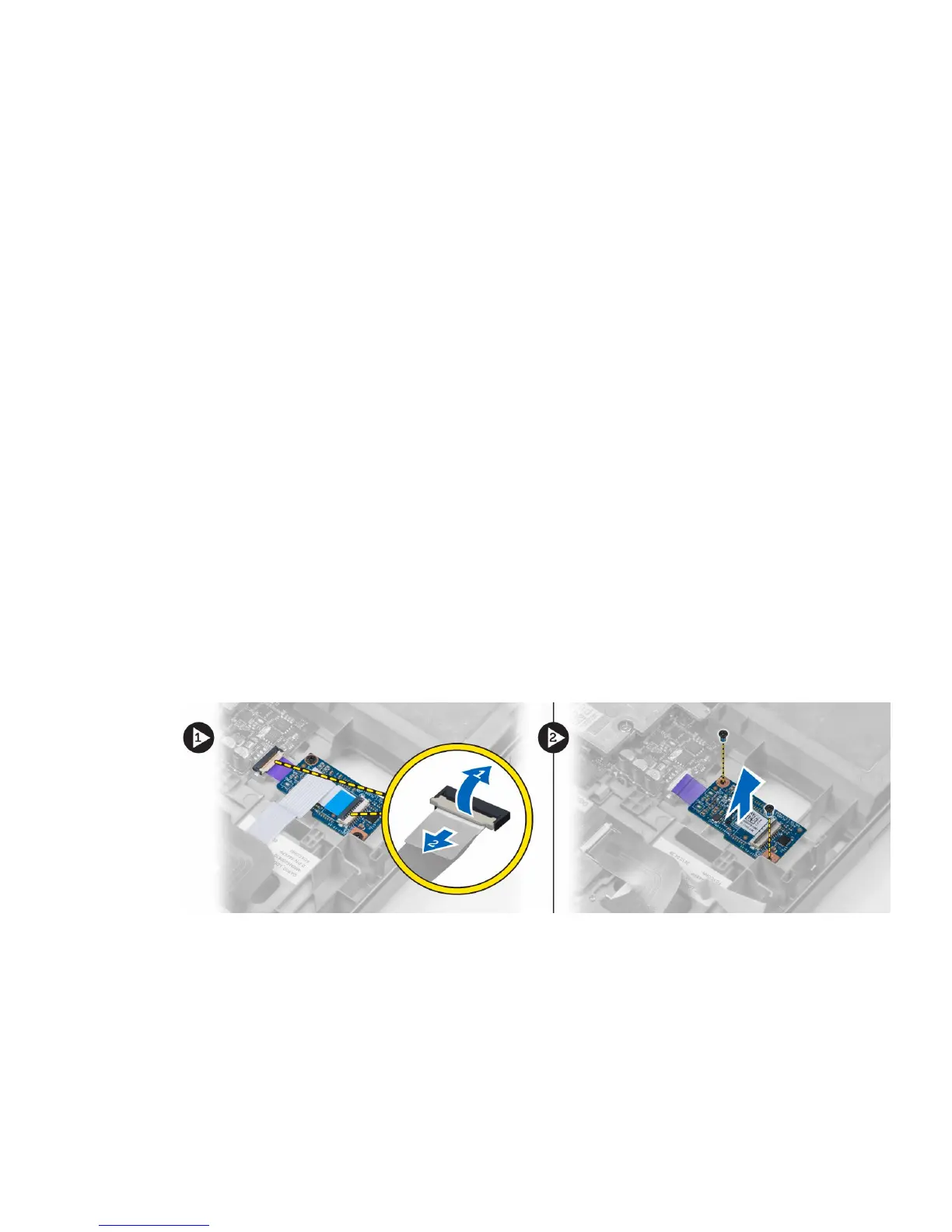

3. Disconnect the smart-card and the USH cable from the system board. Remove the screws that
secure the USH board to the computer and remove it from the computer.
Installing the USH Board
1. Align the USH board to its original position on the computer.
2. Tighten the screws to secure the USH board to the computer.
3. Connect the smart-card and the USH board cables to the system board.
40

Dell Precision Mobile Workstation M4800 Specifications

General

Screen Size	15.6 inches
Graphics	NVIDIA Quadro K2100M
Display	15.6" FHD (1920x1080)
Memory	Up to 32GB DDR3L at 1600MHz
Storage	Up to 512GB SSD
Operating System	Windows 7 Professional, Windows 8.1 Pro
Weight	Starting at 2.88 kg
CPU	Intel Core i7-4800MQ (2.7GHz, up to 3.7GHz, 6MB cache)
GPU	NVIDIA Quadro K1100M, K2100M; AMD FirePro M5100
Ports	4 x USB 3.0, HDMI, VGA, RJ-45, headphone/microphone combo
Wireless	Intel Dual Band Wireless-AC 7260, Bluetooth 4.0
Battery	9-cell (97Whr) lithium-ion
Security	Smart card reader, fingerprint reader
Optical Drive	DVD-ROM, DVD+/-RW
Processor	4th Generation Intel Core i5 and Core i7 Processor Options
