Dell Precision Mobile Workstation M4800 User Manual

Installing the Display Panel
1. Align the display brackets to the display panel.
2. Tighten the screws to secure the display brackets to the display panel.
3. Connect the LVDS cable and affix the adhesive tape.
4. Align the display panel in its original position on the computer.
5. Tighten the screws to secure the display panel to the display assembly.
6. Install the:
a. display bezel
b. battery
7. Follow the procedures in After Working Inside Your Computer.
Removing the Camera
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the:
a. battery
b. display bezel

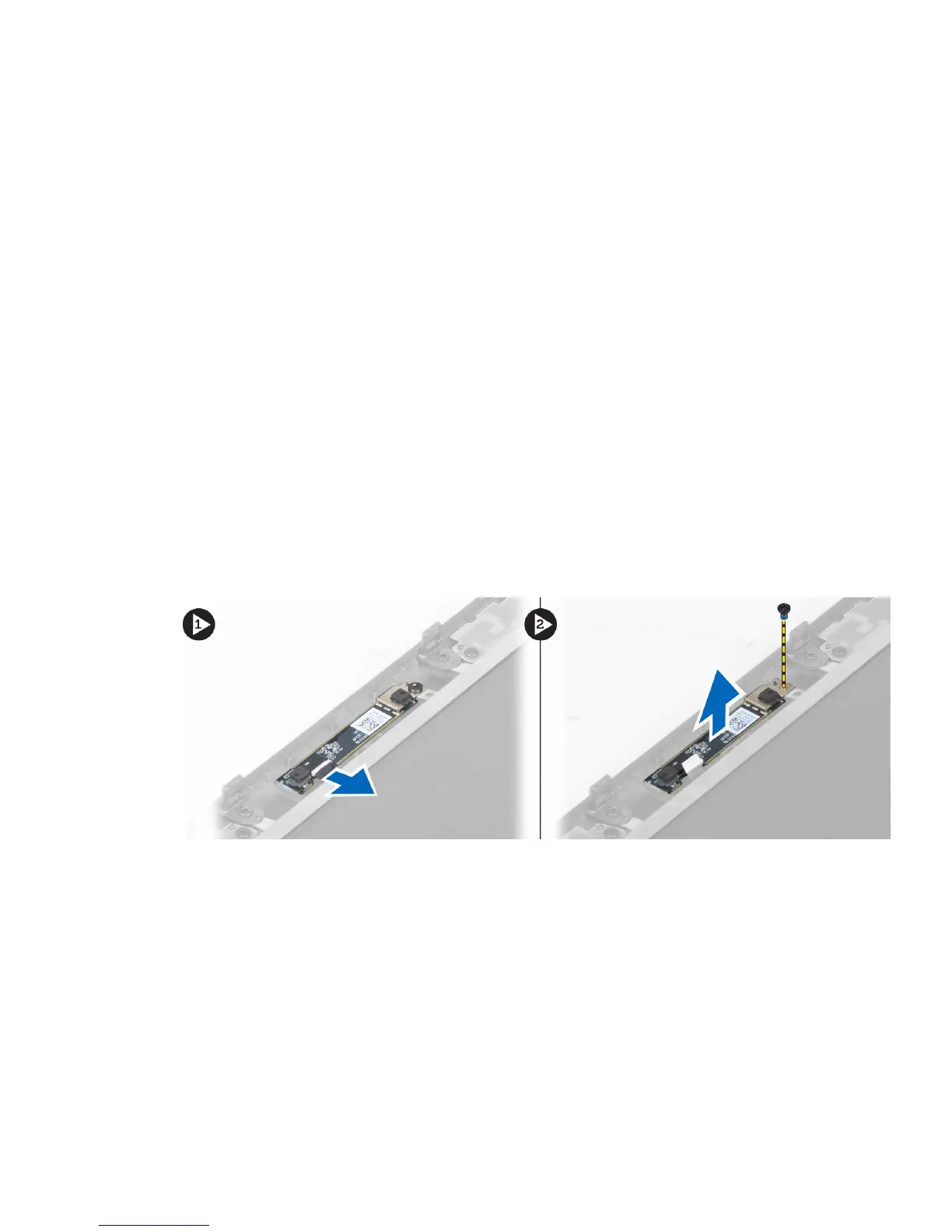

3. Perform the following steps to remove the camera:
a. Disconnect the camera cable.
b. Remove the screw that secures the camera module to the computer.
c. Remove the camera module from the computer.
Installing the Camera
1. Connect the camera cable.
2. Place the camera module in its slot on the computer.
3. Tighten the screw to secure the camera module to the computer.
4. Install the:
a. display bezel
b. battery
5. Follow the procedures in After Working Inside Your Computer.
54

Dell Precision Mobile Workstation M4800 Specifications

General

Screen Size	15.6 inches
Graphics	NVIDIA Quadro K2100M
Display	15.6" FHD (1920x1080)
Memory	Up to 32GB DDR3L at 1600MHz
Storage	Up to 512GB SSD
Operating System	Windows 7 Professional, Windows 8.1 Pro
Weight	Starting at 2.88 kg
CPU	Intel Core i7-4800MQ (2.7GHz, up to 3.7GHz, 6MB cache)
GPU	NVIDIA Quadro K1100M, K2100M; AMD FirePro M5100
Ports	4 x USB 3.0, HDMI, VGA, RJ-45, headphone/microphone combo
Wireless	Intel Dual Band Wireless-AC 7260, Bluetooth 4.0
Battery	9-cell (97Whr) lithium-ion
Security	Smart card reader, fingerprint reader
Optical Drive	DVD-ROM, DVD+/-RW
Processor	4th Generation Intel Core i5 and Core i7 Processor Options
