Dell W19B001 User Manual

Replacing the media-card reader
WARNING: Before working inside your computer, read the safety
information that shipped with your computer and follow the steps in Before
working inside your computer. After working inside your computer, follow
the instructions in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at
www.dell.com/
regulatory_compliance.
Procedure
1 Place the media-card reader board on the display-assembly base.
2 Using the alignment post, align the screw hole on the media-card reader board
with the screw hole on the display-assembly base.
3 Replace the screw (M3x5) that secures the media-card reader board to the
display-assembly base.
4 Place the media-card reader shield on the media-card board and align the screw
hole on the media-card reader shield with the screw hole on the display-assembly
base.
5 Replace the screw (M3x5) that secures the media-card reader shield to the
display-assembly base.
6 Adhere the media-card reader cable to the display-assembly base.

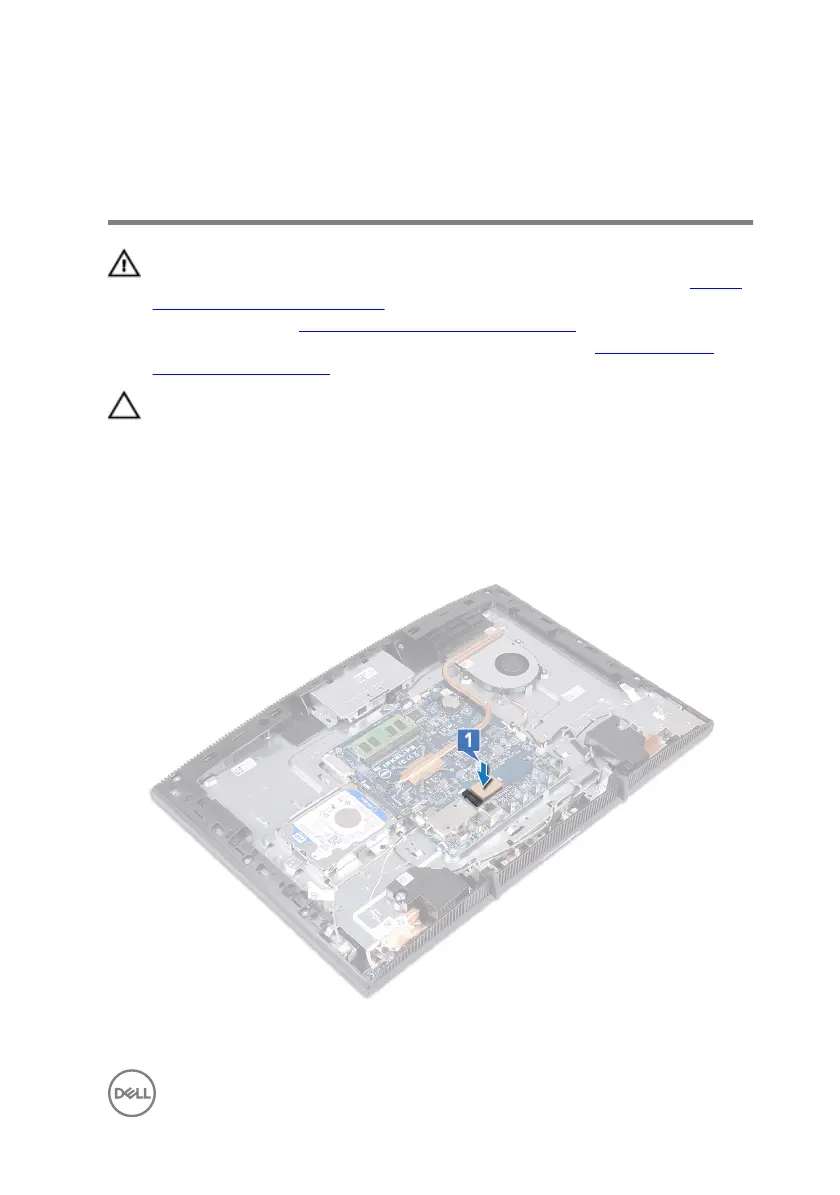

7 Connect the media-card reader cable to the system board.
Post-requisites
1 Replace the system-board shield.
2 Replace the back cover.
3 Replace the stand.
41
