120 Removing and Installing Parts
5

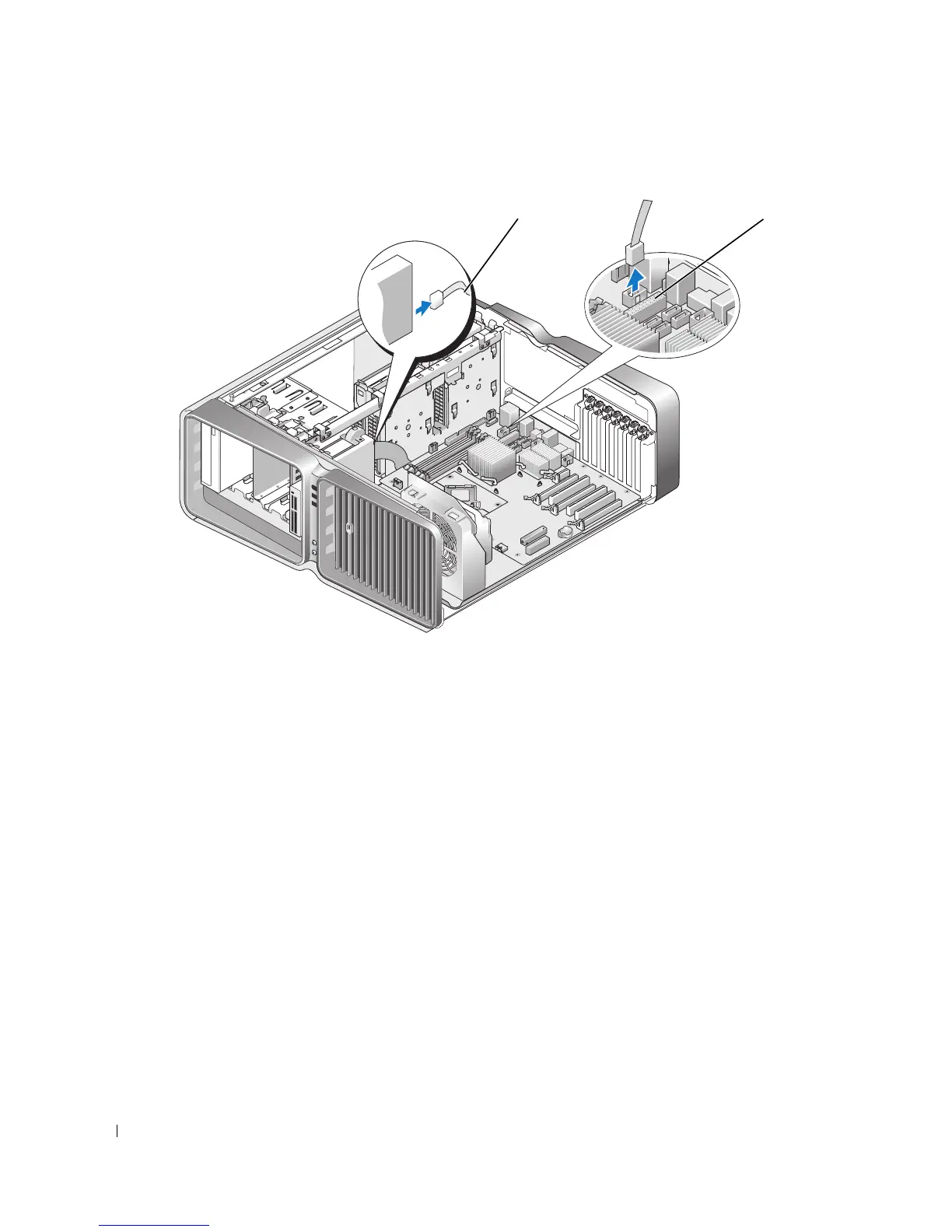

Slide the drive release latch towards the base of the computer to release the shoulder screw, and then
slide the media card reader out of the drive bay.
1 media card reader power
cable
2 system board connector
1
2
