CTA USER MANUAL
© DELTA ELECTRONICS, INC. ALL RIGHTS RESERVED - 13 - 2007-05-09

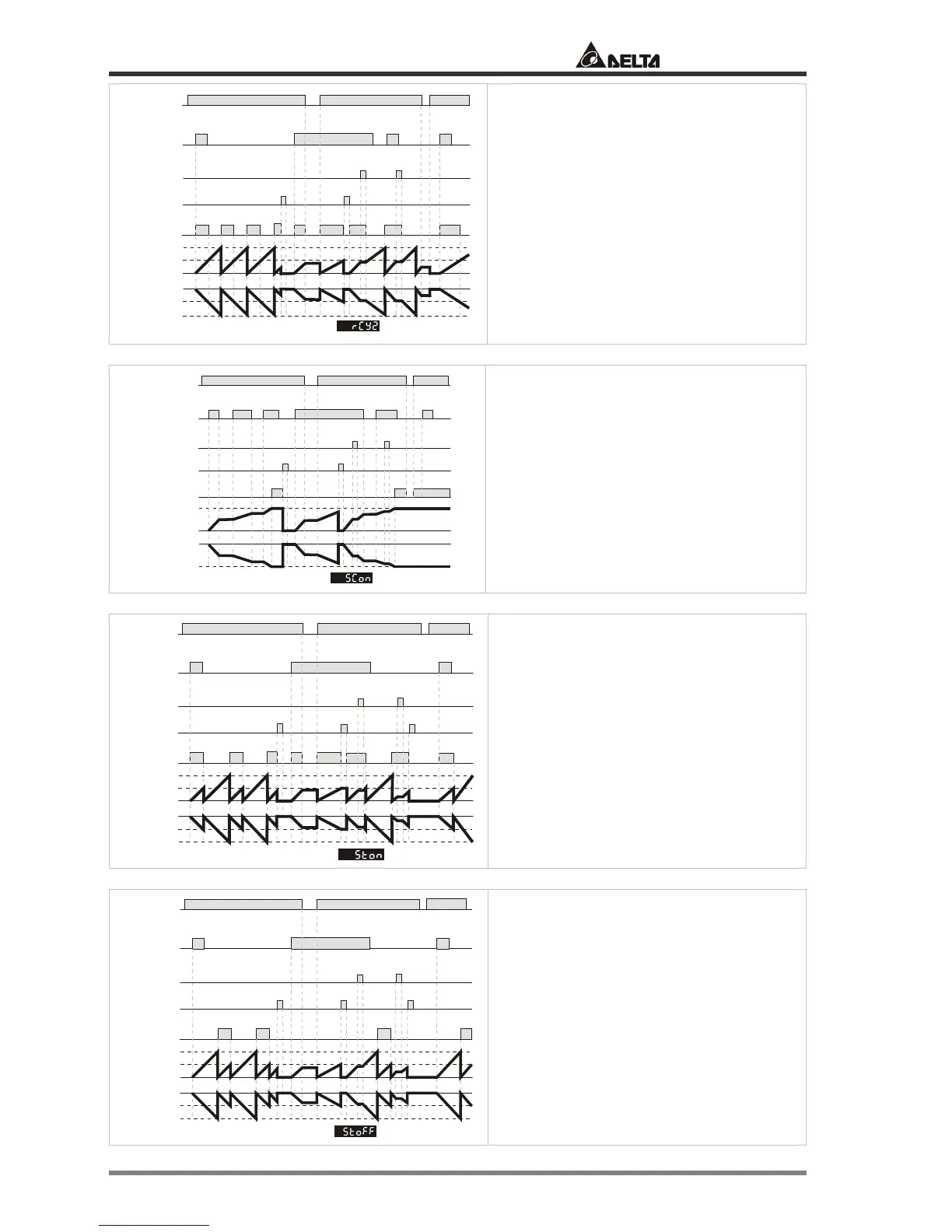

Power signal
Start signal
Pause signal
Clear signal
Output signal
Up
Down
SV1
SV1
SV2
SV2
0
0
Repeat Cycle 2
Repeat Cycle2 (RCY2)
Output in cycle.
The start signal starts to time and output when
the rising edge is triggered and the clear signal
is not executed. When the set time SV2 is
reached, the output will be disabled and the
timer continue to time until the set time SV1 is
reached and the timer will start the timing
again.
Power signal
Start signal
Pause signal
Clear signal
Output signal
Up
Down
0
SV
SV
0
Signal Cumulate
Signal Cumulate (SCON)
Latched cumulate timer.
When the start signal is enabled (Hi), th
e timing
will start until the set time is reached for
output. During the execution of clear signal, the
timer is reset and waits for the start signal to be
enabled (Hi) again. CTA will resume the timing.
Power signal
Start signal
Pause signal
Clear signal
Output signal
Up
Down
SV1
SV2
SV1
0
0
SV2
Signal Twin ON-Start
Signal Twin ON-Start (STON)
Output in cycle.
The start signal starts to time and output when
the rising edge is triggered and the clear signal
is not executed. When the set time SV2 is
reached, the output will be disabled and the
timer will restart the timing from 0 until it
reaches the set time SV1 and turn Off.
Power signal
Start signal
Pause signal
Clear signal
Output signal
Up
Down
SV1
SV1
SV2
SV2
0
0
Signal Twin OFF-Start
Signal Twin Off-Start (STOFF)
Output in cycle.
The start signal starts to time when the rising
edge is triggered and the clear signal is not
executed. When the set time SV1 is reached,
the output will
be On and the timer will restart
the timing from 0 until it reaches the set time
SV2. The timer will then start the timing again
and disable the output.
