Delta ASD-A2 Series User Manual

Chapter 3 Wiring ASDA-A2
3-42 Revision February, 2017
3.4.3 Wiring Diagrams (CN1)
The valid voltage of speed analog command and torque analog command is between -10V and
+10V. The command value can be set via relevant parameters. The input impedance is 10K.

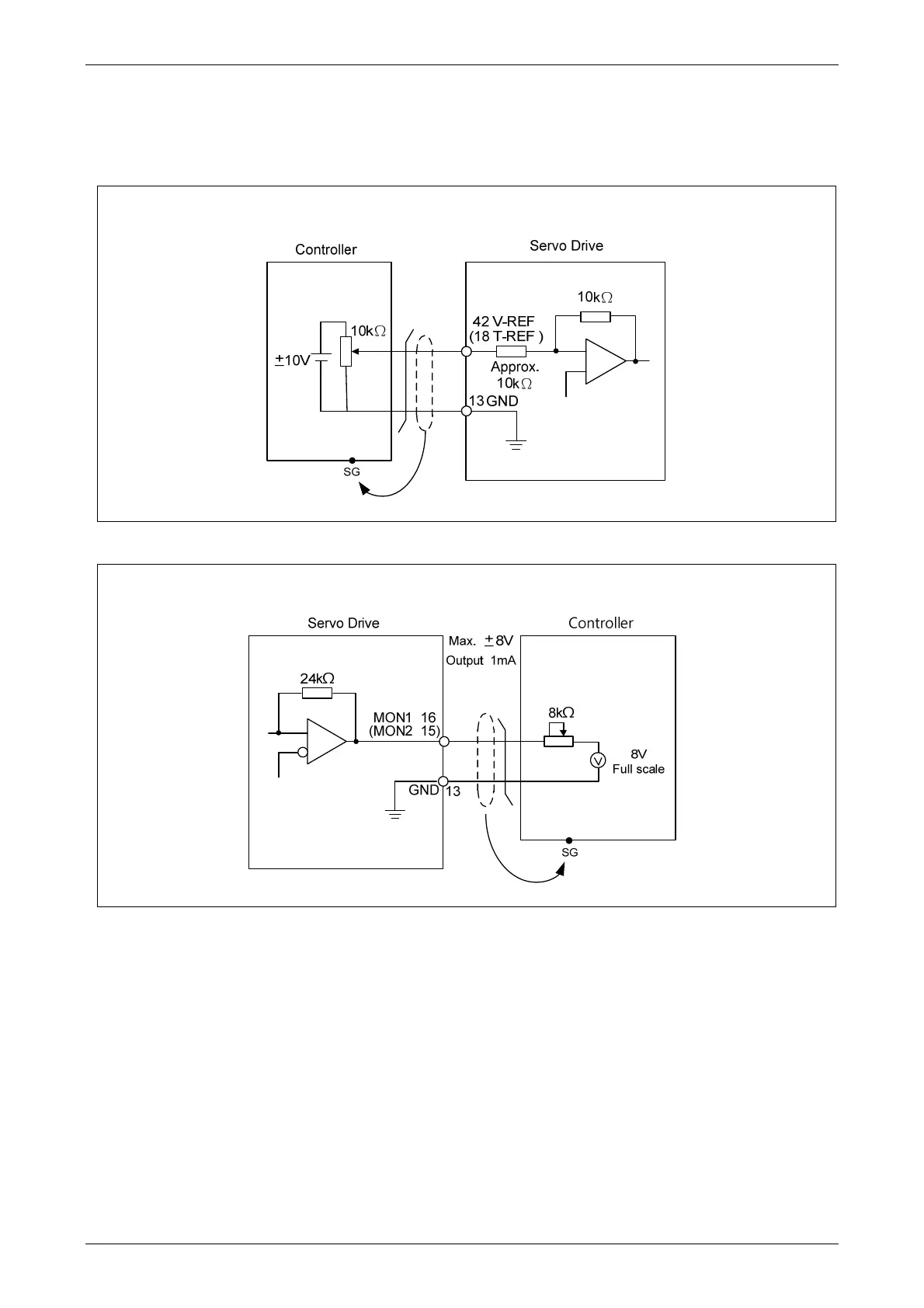

C1: Speed, Input of Torque Analog Command
C2: Analog Monitor Output MON1 ,MON2

Delta ASD-A2 Series Specifications

General

Control Mode	Position, Speed, Torque
Feedback	Incremental encoder, Absolute encoder
Rated Output Power	0.1 kW to 15 kW
Power Supply	200-230V AC
Communication Interface	RS-485, CANopen
Protection Features	Overload, Overvoltage, Overcurrent, Overheat
