Quick installation guide for solar inverters RPI M6A M8A M10A EU V4 EN 5013221703 00 2017-11-16

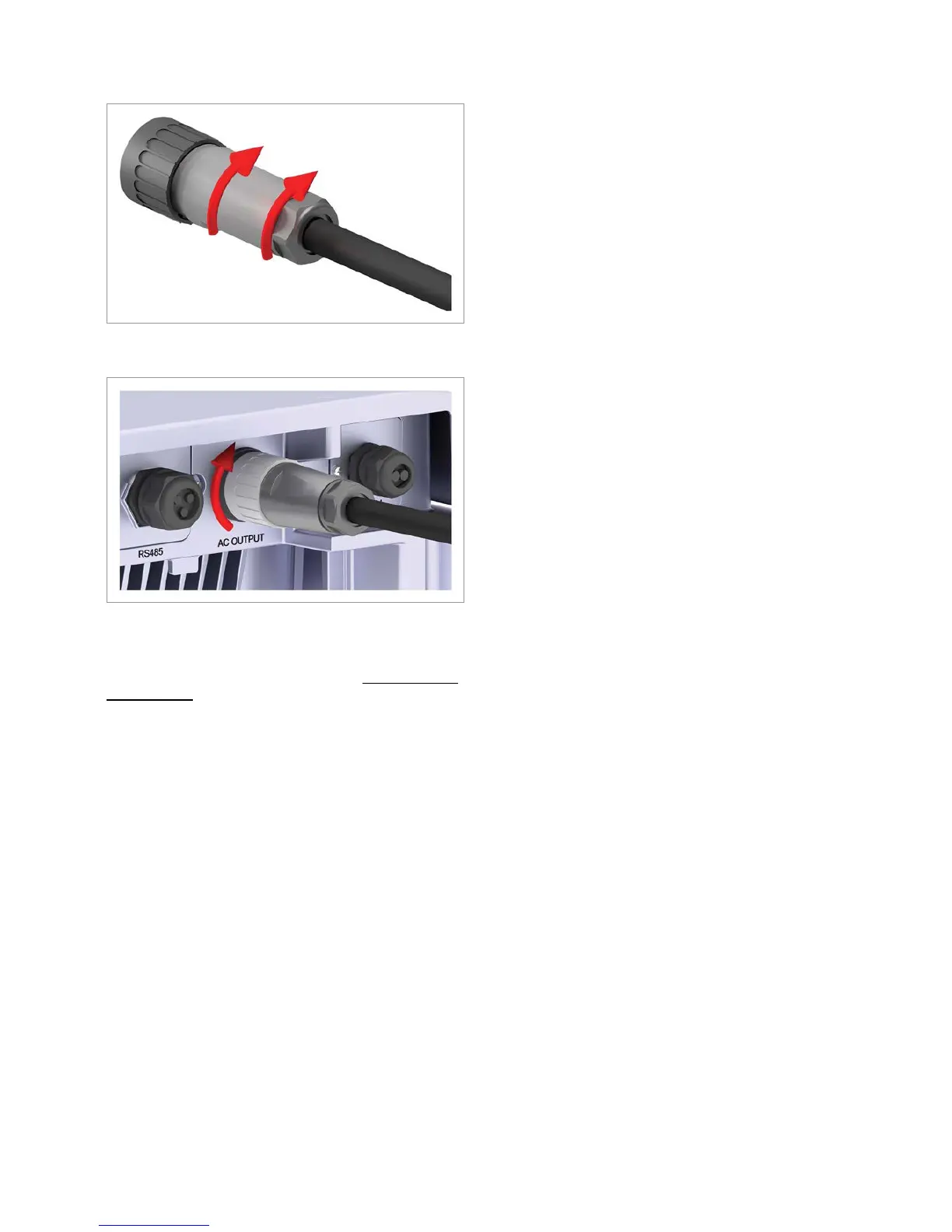

8. Plug the AC plug into the AC connection on the inverter and
tighten.
9. Fasten the AC cable with a strain relief element.
10. If the inverter is connected to a grid without a neutral con-
ductor, the AC connection type must be changed using the
display to 3P3W after commissioning, see “AC connection
type”, page 23.
Connecting the mains (AC)
