Chapter 1 Introduction  VFD-EL-W
1-11

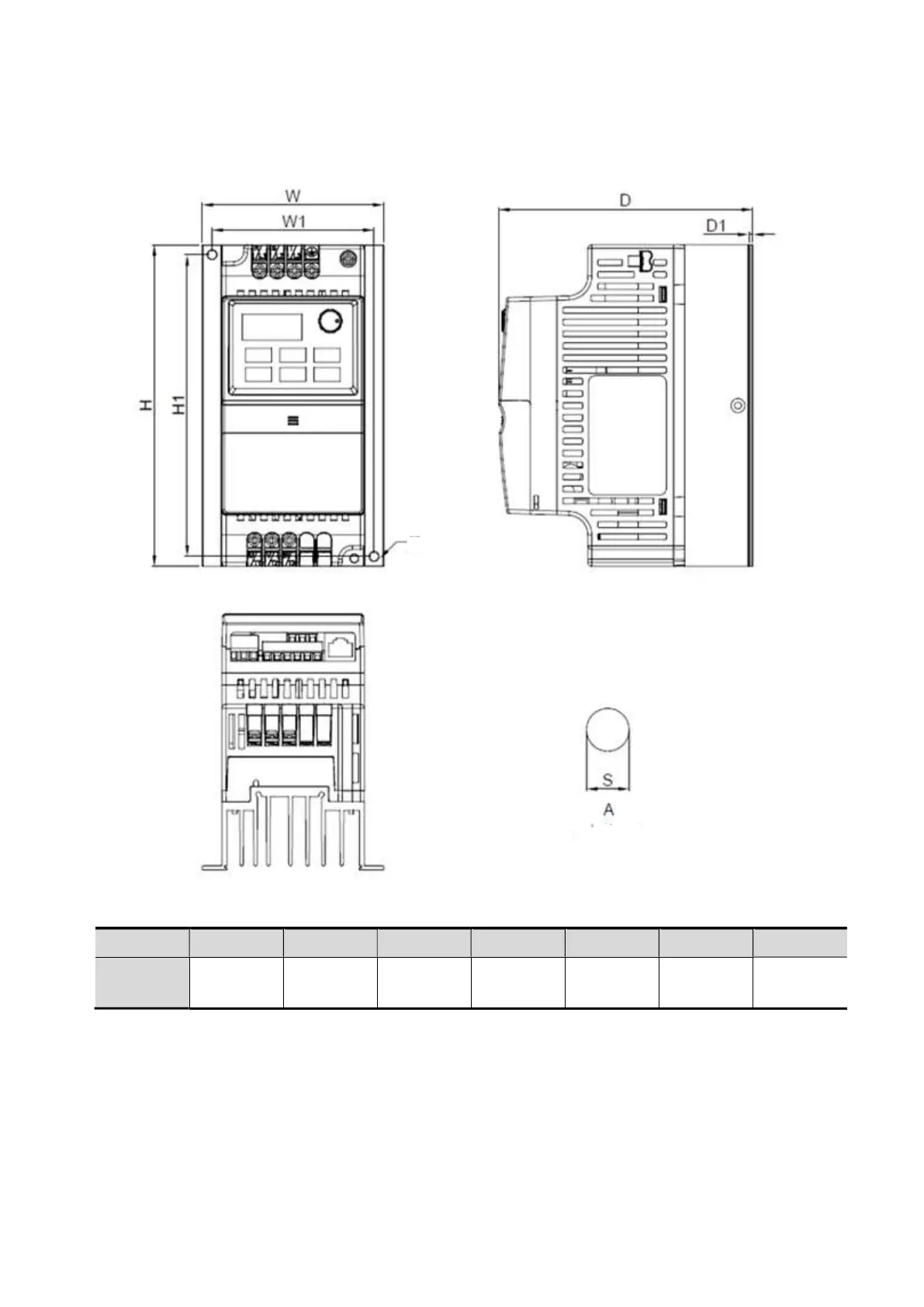

1.3 Dimensions
Frame A1
VFD002EL21W(-1), VFD004EL21W(-1), VFD004EL43W(-1), VFD007EL21W(-1), VFD007EL43W(-1)
See A
(mounting hole)
Unit: mm [inch]
Frame W W1 H H1 D D1 S1
A1
92.0
[3.62]
82.0
[3.23]
162.0
[6.38]
152
[5.98]
128.7
[5.07]
5.4
[0.21]
5.4
[0.21]
