Chapter 4 Parameters  VFD-EL-W
4-48
Case 1: Pr.03.12
Case 2: Pr.03.12
Pr. 03.11
Frequency
Output
Time
Run/Stop
Case 1: Pr.03.00=21
Case 2: Pr.03.00=21

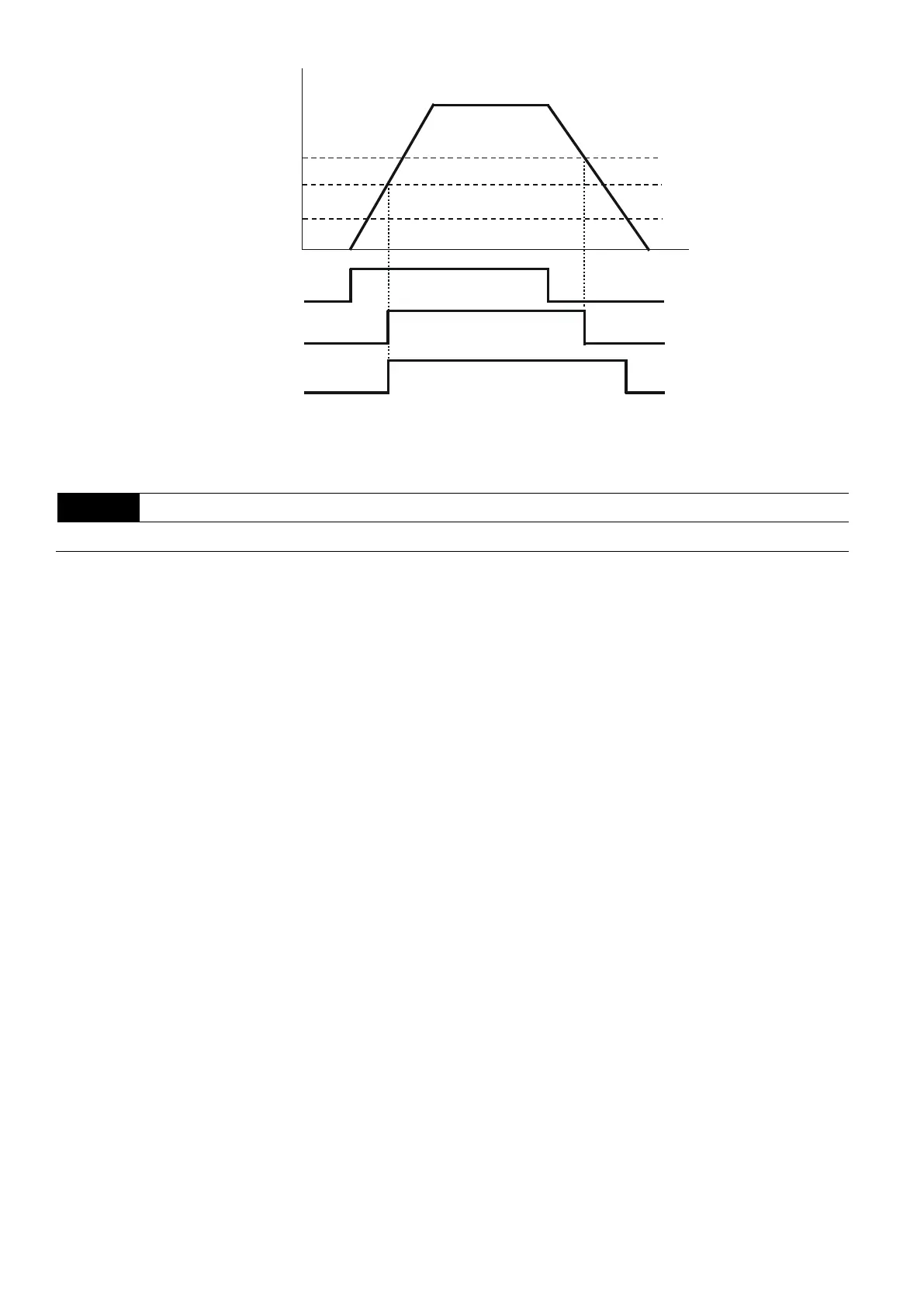

 Pr.03.00 multi-function output terminal 21 (Mechanical Brake Control): When the output frequency reaches
Pr.03.11 (Mechanical Brake Release Frequency), the multi-function output terminal is closed. When the output
frequency reaches Pr.03.12 (Mechanical Brake Engage Frequency), the multi-function output terminal is open.
03.13 Display the Status of the Multi-function Output Terminals
Settings Read Only Default: Read Only
 For the standard AC motor drive, the multi-function output terminals are falling-edge triggered.
 0: Relay is ON; 1: Relay is OFF.
