Chapter 2 Installation and Wiring
VFD-EL-W
2-2
2.1 Wiring

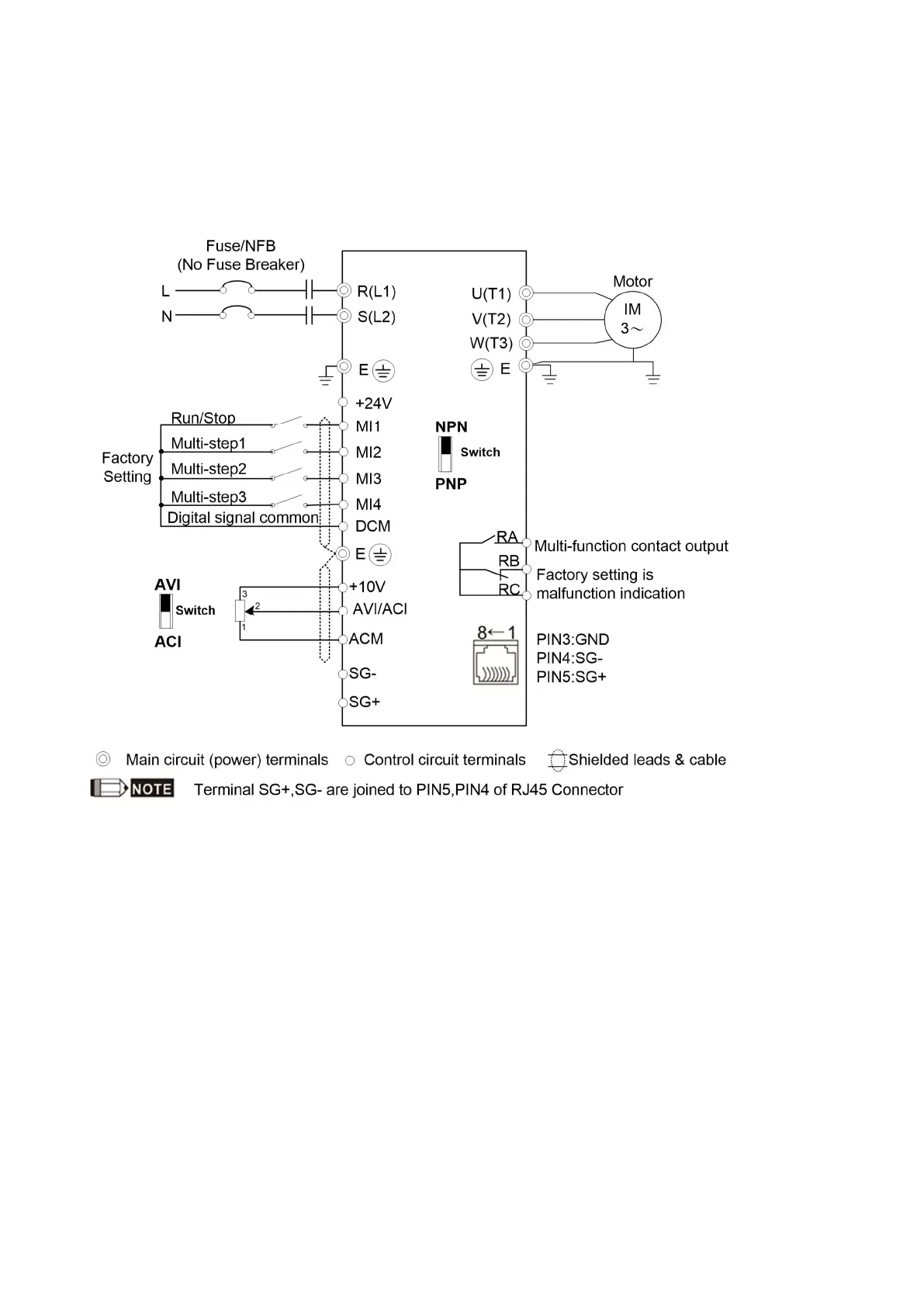

There are wirings for main circuits and control circuits. You must wire according to the following wiring diagrams.
230V One-phase
VFD002EL21W(-1), VFD004EL21W(-1), VFD007EL21W(-1), VFD015EL21W(-1), VFD022EL21W(-1)
