19

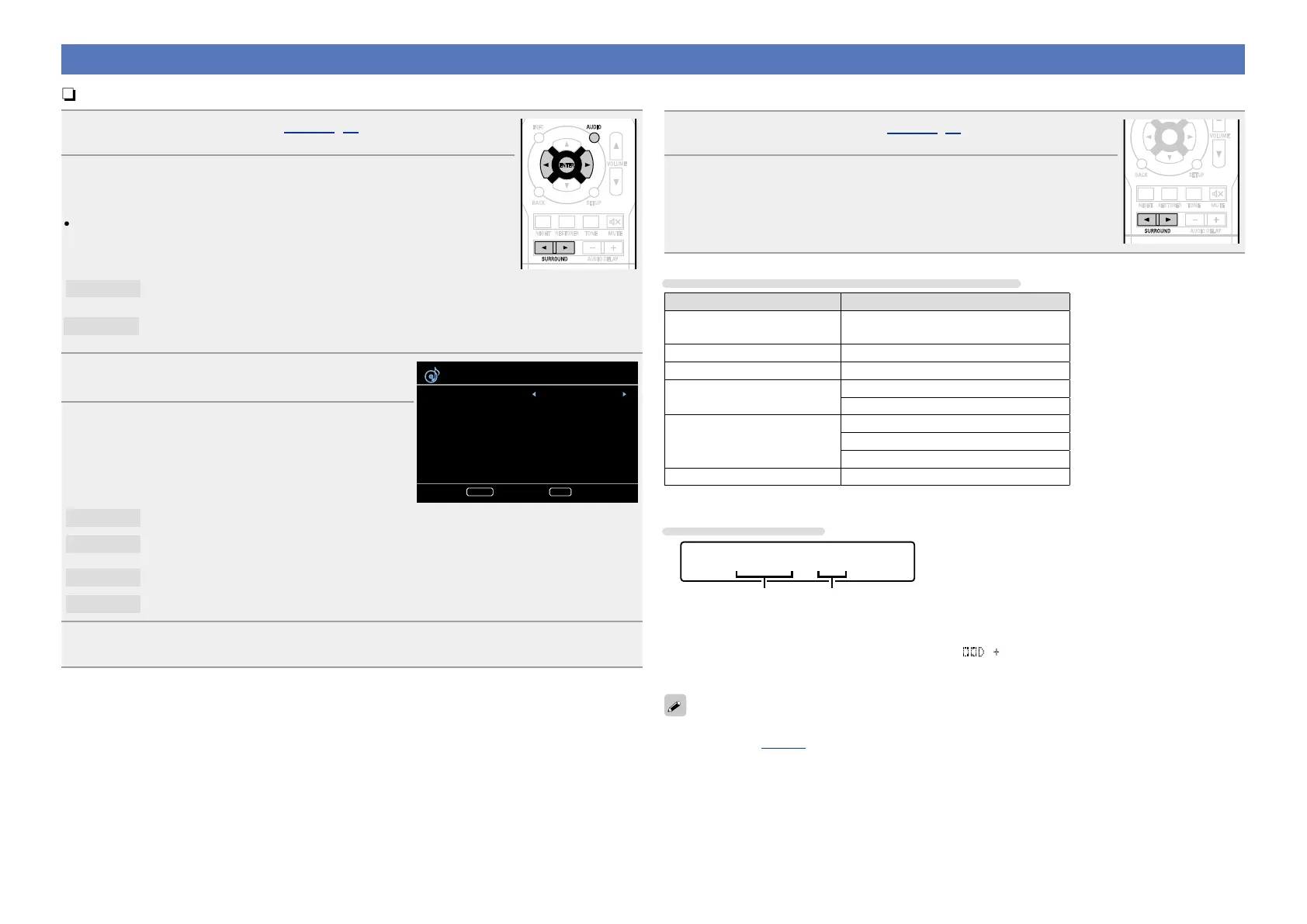

Standard playback
n Surround playback of 2-channel sources
1
Play the selected device (vpage 15, 16).
CH LEVEL SLEEP DIMMER SEARCH
MODESHIFT
BANDMEMORYCBL /SAT
Blu-ray
DVD
GAME
AUX
VOLUME
INFO
AUDIO
BACK SETUP
MUTETONERESTORERNIGHT
RC-1170
SURROUND
AUDIO DELAY
TV AUDIO
CHANNEL
TUNE
TUNER
POWER
QUICK SELECT
ENTER
21 3 4
2
Press SURROUND 0 or SURROUND 1 to select the surround
decoder to play back multichannel sound.
Select the surround mode while viewing the display on the TV screen.
•Which decoder can be selected depends on the settings of C page 5 “Speaker
Config.”.
DOLBY PLg
This mode is for 5.1-channel surround playback.
•“PLg Cinema”, “PLg Music”, “PLg Game” or “Pro Logic” is displayed.
DTS NEO:6
This mode is for 5.1-channel surround playback.
•“DTS NEO:6 Cinema” or “DTS NEO:6 Music” is displayed.
3
Press AUDIO and then press ENTER .
Enter ReturnENTER BACK
Audio Adjust
Mode
Default
Cinema
NoYes
4
Use o p to select the mode according to the
content to be played and then press ENTER.
Cinema This mode is suited for movie sources.
Music
This mode is suited for music sources. More sound is sent to the front speakers than in
“Cinema” mode.
Game This mode is suited for games.
Pro Logic This mode is suitable for playback of 2-channel sources recorded with Dolby Pro Logic.
5
Press AUDIO.
The menu display disappears.
n Surround playback of multi-channel sources (Dolby Digital, DTS etc.)
1
Play the selected device (vpage 15, 16).
CH LEVEL SLEEP DIMMER SEARCH
MODESHIFT
BANDMEMORYCBL /SAT
Blu-ray
DVD
GAME
AUX
VOLUME
INFO
AUDIO
BACK SETUP
MUTETONERESTORERNIGHT
RC-1170
SURROUND
AUDIO DELAY
TV AUDIO
CHANNEL
TUNE
TUNER
POWER
QUICK SELECT
ENTER
21 3 4
2
Press SURROUND 0 or SURROUND 1 to select the surround
decoder to play back multichannel sound.
Select the surround mode while viewing the display on the TV screen.
•Which decoder can be selected depends on the input signal, the settings of
C page 5 “Speaker Config.”.
Displaying the currently playing surround mode
Input signal Surround mode
DOLBY DIGITAL
(other than 2ch)
DOLBY DIGITAL
DOLBY DIGITAL Plus DOLBY DIGITAL Plus
DOLBY TrueHD DOLBY TrueHD
DTS (5.1ch) /
DTS 96/24
DTS SURROUND
DTS 96/24
z
DTS-HD
DTS-HD HI RES
DTS-HD MSTR
DTS Express
PCM (multi ch) MULTI CH IN
z This is displayed when the input signal is “DTS 96/24”.
Views on the display
DOLBY D DVD
q w
q Shows a decoder to be used.
•A DOLBY DIGITAL decoder is displayed as “DOLBY D”.
•A DOLBY DIGITAL Plus decoder is displayed as “ ”.
w Shows the name of the input source being played back.
For an input signal that can be reproduced in each surround mode, see “Surround modes and surround
parameters” (vpage46).
Basic version
Advanced version
Information
Basic version

Denon AVR-1513 Specifications

General

Receiver type	-
Audio output channels	5.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Power output per channel (1KHz@6 Ohm)	110 W
Power output per channel (20-20KHz@8 Ohm)	75 W
HDMI in	4
Composite video in	2
Digital audio optical in	1
Connectivity technology	Wired
Ethernet LAN	No
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Radio Data System (RDS)	Yes
Preset stations quantity	56
Supported video modes	1080p, 720p
Analog signal format system	NTSC, PAL
Display	LCD
Product color	Black
Audio decoders	Dolby Pro Logic II, Dolby TrueHD, DTS 96/24, DTS Neo:6, DTS-HD
Apple docking compatibility	Not supported
Graphical user interface (GUI) language	English
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Depth	319 mm
Width	434 mm
Height	151 mm
Weight	7800 g
