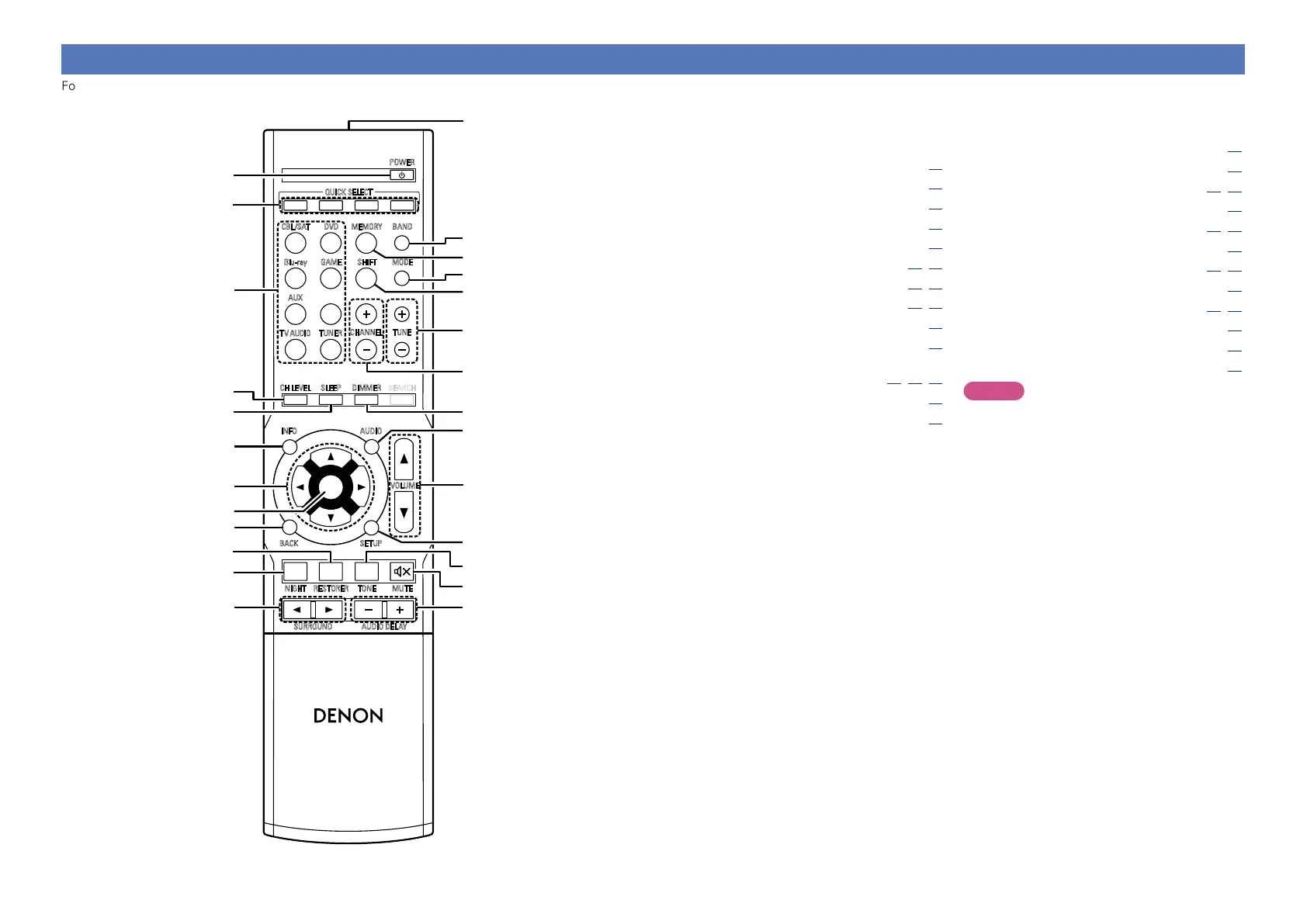

Remote control unit
For buttons not explained here, see the page indicated in parentheses ( ).
q
r
t
e
w
Q0
y
u
i
o
Q1
Q2
W0
W2
W6
W5
W4
Q7
Q5
Q8
Q4
Q6
Q9
W1
W3
Q3
CH LEVEL SLEEP DIMMER SEARCH
MODESHIFT
BANDMEMORYCBL/SAT
Blu-ray
DVD
GAME
AUX
VOLUME
INFO
AUDIO
BACK SETUP
MUTETONERESTORERNIGHT
RC-1170
SURROUND
AUDIO DELAY
TV AUDIO
CHANNEL
TUNE
TUNER
POWER
QUICK SELECT
ENTER
21 3 4
q POWER button (X) ··················· (C 4, C 8)
w QUICK SELECT buttons (1 – 4) ·················· (26)
e Input source select buttons ······················· (14)
r Channel level button (CH LEVEL) ············· (25)
t SLEEP button ·············································· (26)
y Information button (INFO) ························· (38)
u Cursor buttons (uio p) ····················· (28, 29)
i ENTER button ······································· (28, 29)
o BACK button ········································· (28, 29)
Q0 RESTORER button ······································ (37)
Q1 NIGHT button ············································· (36)
Q2 SURROUND buttons
(0 1) ··············································· (18, 19, 20)
Q3 Remote control signal transmitter ··········· (44)
Q4 BAND button ·············································· (16)
Q5 MEMORY button ········································ (16)
Q6 MODE button ·············································· (16)
Q7 SHIFT button ········································· (16, 17)
Q8 Tuning buttons (TUNE +, –) ······················· (16)
Q9 CHANNEL buttons (+, –) ······················ (16, 17)
W0 DIMMER button ·········································· (15)
W1 AUDIO button ······································ (19, 34)
W2 VOLUME buttons (df) ······························ (14)
W3 SETUP button ······································· (28, 29)
W4 TONE button ··············································· (36)
W5 MUTE button (:) ····································· (14)
W6 AUDIO DELAY buttons (+, –) ····················· (37)
NOTE
The SEARCH button cannot be used.
Basic version
Advanced version
InformationInformation
vSee overleaf

Denon AVR-1513 Specifications

General

Receiver type	-
Audio output channels	5.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Power output per channel (1KHz@6 Ohm)	110 W
Power output per channel (20-20KHz@8 Ohm)	75 W
HDMI in	4
Composite video in	2
Digital audio optical in	1
Connectivity technology	Wired
Ethernet LAN	No
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Radio Data System (RDS)	Yes
Preset stations quantity	56
Supported video modes	1080p, 720p
Analog signal format system	NTSC, PAL
Display	LCD
Product color	Black
Audio decoders	Dolby Pro Logic II, Dolby TrueHD, DTS 96/24, DTS Neo:6, DTS-HD
Apple docking compatibility	Not supported
Graphical user interface (GUI) language	English
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Depth	319 mm
Width	434 mm
Height	151 mm
Weight	7800 g
