Denon AVR-1513 User Manual

40

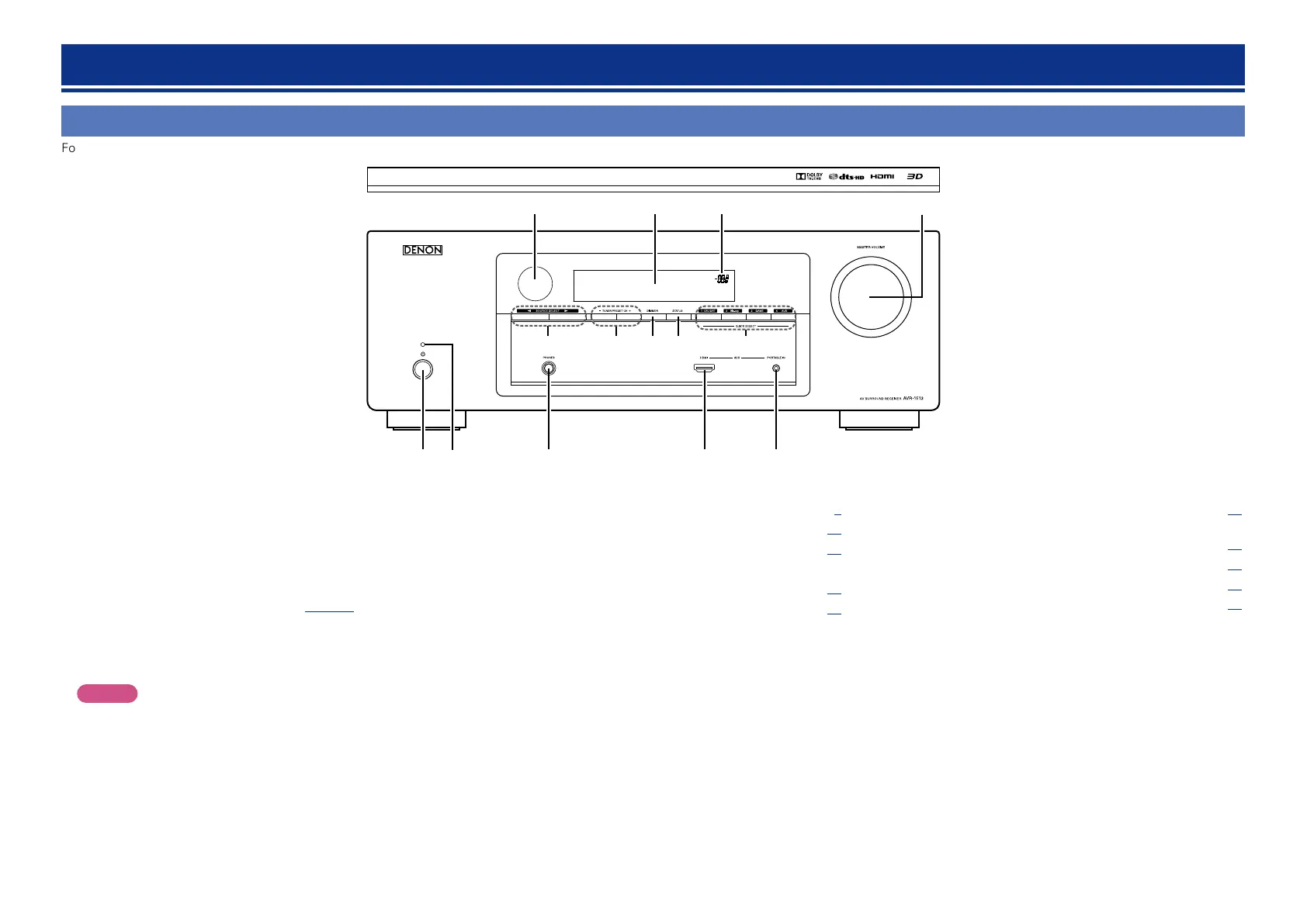

Front panel
For buttons not explained here, see the page indicated in parentheses ( ).
o i
u y
Q2Q1 Q4Q0 Q3
r tewq
q Power operation button (X) ··································(C 4, C 8)
Turns power to this unit on and off (standby).
w Power indicator ······················································(C 4, C 8)
GPower indicator statusH
•Power on : Green
•Normal standby : Off
•Standby when “Standby Pass” (vpage 33) is not set to
“OFF” : Red
e Headphones jack (PHONES)
When the headphones are plugged into this jack, audio will no
longer be output from the connected speakers.
NOTE
To prevent hearing loss, do not raise the volume level excessively
when using headphones.
Q0 SOURCE SELECT buttons (0 1) ··········································· (14)
Q1 Tuner preset channel buttons
(TUNER PRESET CH +, –) ························································ (17)
Q2 DIMMER button ······································································· (15)
Q3 STATUS button ······································································· (38)
Q4 QUICK SELECT buttons ·························································· (26)
r AUX HDMI connector ································································ (7)
t AUX PORTABLE IN jack ·························································· (13)
y MASTER VOLUME control knob ············································ (14)
u Master volume indicator
i Display ······················································································ (41)
o Remote control sensor ··························································· (44)
Part names and functions
Basic version
Advanced version
InformationInformation

Denon AVR-1513 Specifications

General

Receiver type	-
Audio output channels	5.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Power output per channel (1KHz@6 Ohm)	110 W
Power output per channel (20-20KHz@8 Ohm)	75 W
HDMI in	4
Composite video in	2
Digital audio optical in	1
Connectivity technology	Wired
Ethernet LAN	No
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Radio Data System (RDS)	Yes
Preset stations quantity	56
Supported video modes	1080p, 720p
Analog signal format system	NTSC, PAL
Display	LCD
Product color	Black
Audio decoders	Dolby Pro Logic II, Dolby TrueHD, DTS 96/24, DTS Neo:6, DTS-HD
Apple docking compatibility	Not supported
Graphical user interface (GUI) language	English
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Depth	319 mm
Width	434 mm
Height	151 mm
Weight	7800 g
