Denon AVR-1513 User Manual

30
Input Setup
Setting items Setting details
OPTICAL
Set this to change the
optical input connectors
assigned to the input
sources.
Blu-ray DVD
TV AUDIO CBL/SAT
GAME AUX
Blu-ray / DVD / TV AUDIO / CBL/SAT / GAME / AUX
OFF : Do not assign a optical input connector to the selected input source.
COAXIAL
Set this to change the
coaxial input connectors
assigned to the input
sources.
Blu-ray DVD
TV AUDIO CBL/SAT
GAME AUX
Blu-ray / DVD / TV AUDIO / CBL/SAT / GAME / AUX
OFF : Do not assign a coaxial input connector to the selected input source.
Default
The “Input Assign” settings
are returned to the default
settings.
Yes : Reset to the defaults.
No : Do not reset to the defaults.
If you select “Default” and press ENTER, the
message “Return settings to the default?”
is displayed. Select “Yes” or “No”, and then
press ENTER.
CH LEVEL SLEEP DIMMER SEARCH
MODESHIFT
BANDMEMORYCBL /SAT
Blu-ray
DVD
GAME
AUX
VOLUME
INFO
AUDIO
BACK SETUP
MUTETONERESTORERNIGHT
RC-1170
SURROUND
AUDIO DELAY
TV AUDIO
CHANNEL
TUNE
TUNER
POWER
QUICK SELECT
ENTER
21 3 4

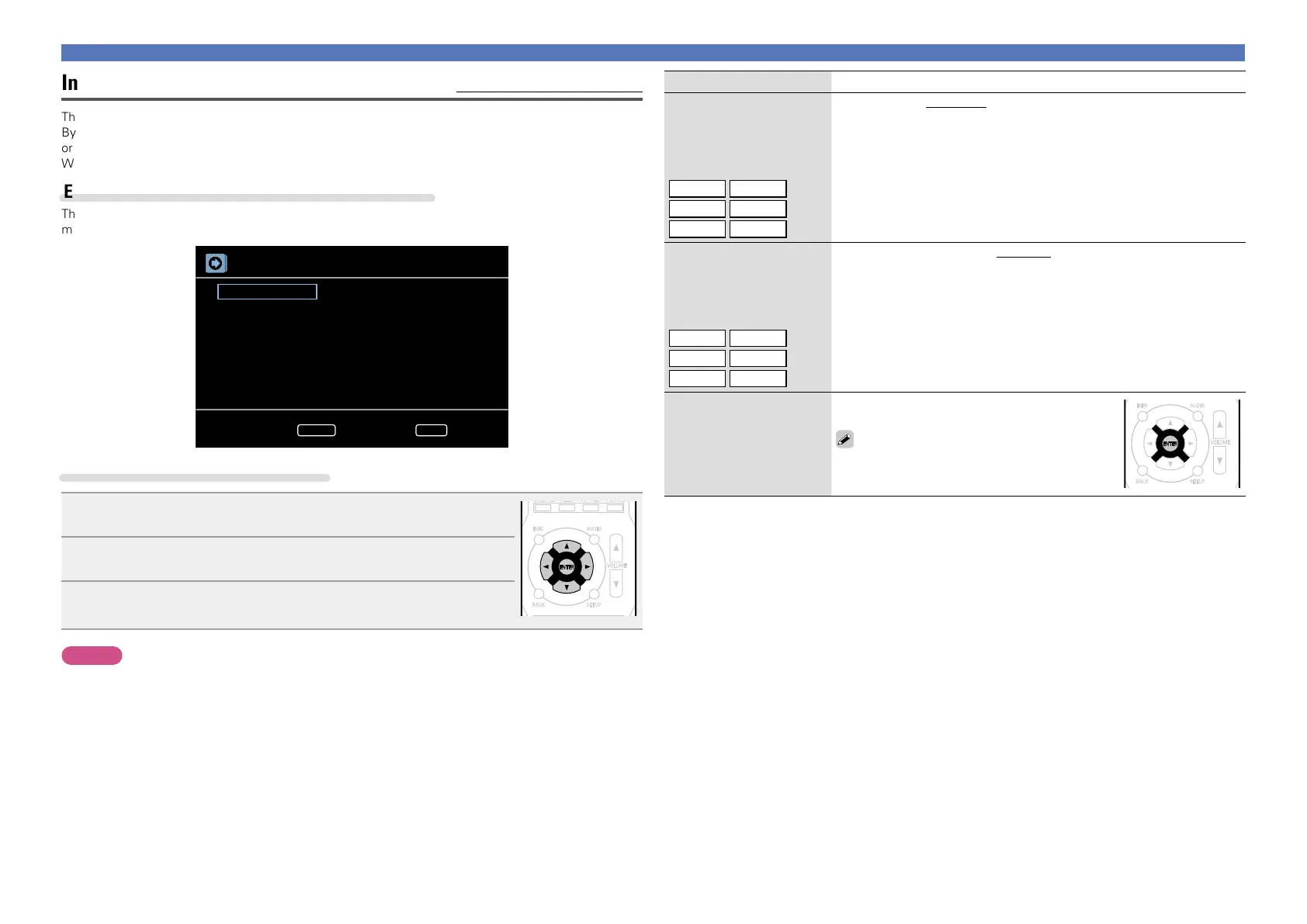

Input Assign Default settings are underlined.
This unit has certain input sources such as “CBL/SAT” assigned to audio and video connectors by default.
By making the default connections, you can simply press an input source select button to play back audio
or video from the connected device with ease.
When making connections other than the default settings, you must change settings in this section.
Examples of “Input Assign” menu screen displays
This screen appears when the “Input Setup” – “Input Assign” menu is selected. Use the “Input Assign”
menu to change the digital input connectors that are assigned to the input sources in default settings.
Input Setup
Input Assign
Video Source
Input Mode
Source Level
OPTICAL
COAXIAL
Enter ReturnENTER BACK
Input assignments menu operations
1
Use ui to select “Input Assign”, and then press ENTER.
CH LEVEL SLEEP DIMMER SEARCH
MODESHIFT
BANDMEMORYCBL /SAT
Blu-ray
DVD
GAME
AUX
VOLUME
INFO
AUDIO
BACK SETUP
MUTETONERESTORERNIGHT
RC-1170
SURROUND
AUDIO DELAY
TV AUDIO
CHANNEL
TUNE
TUNER
POWER
QUICK SELECT
ENTER
21 3 4
2
Use uio p to select the input connector to be assigned.
3
Press ENTER to enter the setting.
NOTE
•If all “OPTICAL” and “COAXIAL” assignment of the TV source are set to “OFF”, TV source cannot be
selected with the input source selection.
•The unit supports 3 types of digital audio connection (HDMI, OPTICAL, and COAXIAL). Do not make
multiple digital audio connections with a single device. However, you can make both analog and digital
connections with the same source. In this case, priority is given to the HDMI input signal when making
both analog and HDMI connections. Priority is also given to the digital input signal (OPTICAL/COAXIAL)
when making both analog and digital connections (OPTICAL/COAXIAL).
Basic version
Advanced version
Information
Advanced version
DVD

Denon AVR-1513 Specifications

General

Receiver type	-
Audio output channels	5.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Power output per channel (1KHz@6 Ohm)	110 W
Power output per channel (20-20KHz@8 Ohm)	75 W
HDMI in	4
Composite video in	2
Digital audio optical in	1
Connectivity technology	Wired
Ethernet LAN	No
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Radio Data System (RDS)	Yes
Preset stations quantity	56
Supported video modes	1080p, 720p
Analog signal format system	NTSC, PAL
Display	LCD
Product color	Black
Audio decoders	Dolby Pro Logic II, Dolby TrueHD, DTS 96/24, DTS Neo:6, DTS-HD
Apple docking compatibility	Not supported
Graphical user interface (GUI) language	English
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Depth	319 mm
Width	434 mm
Height	151 mm
Weight	7800 g
