Denon AVR-1513 User Manual

2
ENGLISHFRANÇAISESPAÑOLPORTUGUÊSESPAÑOLNEDERLANDSSVENSKA
Preparation Setup PlaybackConnect

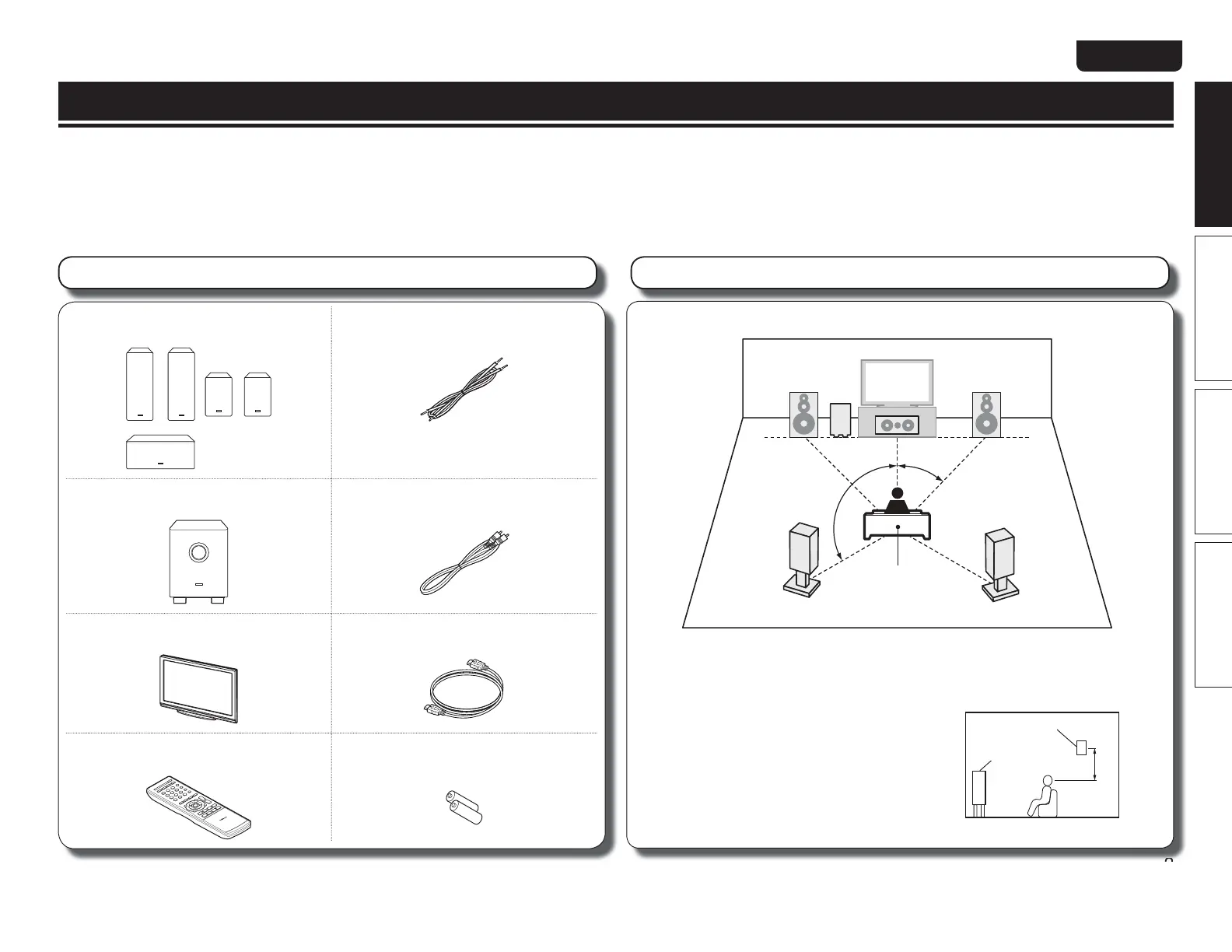

What you need for this step
Speaker
(sold separately)
Speaker cable
(sold separately)
FL FR
SL SR
C
• Prepare enough for the number of speakers
you will use.
Subwoofer (with built-in amplifi er)
(sold separately)
Subwoofer cable
(sold separately)
TV
(sold separately)
HDMI cable
(sold separately)
Remote control unit
(supplied)
R03/AAA batteries
(supplied)
This unit can perform 2.0/2.1 to 5.1-channel surround playback.
Here, we explain the installation and connection procedure when using 5.1-channel speakers.
For the installation procedure when using other than 5.1-channel, see vm page 22 “Speaker installation/connection (Advanced connection)”.
n Do not plug the power plug of the main unit into the wall socket until these preparations are complete.
n For operation of the connected devices, refer to the user manuals for each device.
Install
2
n When 5.1-channel installed
FL FR
SW
C
SL
SR
z1
z2
Listening position
z1 22˚ – 30˚ z2 120˚
FL Front speaker (L) • Use the illustration below as a guide for how
high each speaker should be installed. The
height does not need to be exactly the same.
Front
speaker
Surround
speaker
2 – 3 ft /
60 – 90 cm
GViewed from the sideH
FR Front speaker (R)
C Center speaker
SW Subwoofer
SL Surround speaker (L)
SR Surround speaker (R)
Connecting the speakers
1.AVR1513E3ENGIMGS00A0214校了後修正.indd2 2012/02/1420:03:28

Denon AVR-1513 Specifications

General

Receiver type	-
Audio output channels	5.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Power output per channel (1KHz@6 Ohm)	110 W
Power output per channel (20-20KHz@8 Ohm)	75 W
HDMI in	4
Composite video in	2
Digital audio optical in	1
Connectivity technology	Wired
Ethernet LAN	No
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Radio Data System (RDS)	Yes
Preset stations quantity	56
Supported video modes	1080p, 720p
Analog signal format system	NTSC, PAL
Display	LCD
Product color	Black
Audio decoders	Dolby Pro Logic II, Dolby TrueHD, DTS 96/24, DTS Neo:6, DTS-HD
Apple docking compatibility	Not supported
Graphical user interface (GUI) language	English
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Depth	319 mm
Width	434 mm
Height	151 mm
Weight	7800 g
