Denon AVR-1713 Service Manual

114

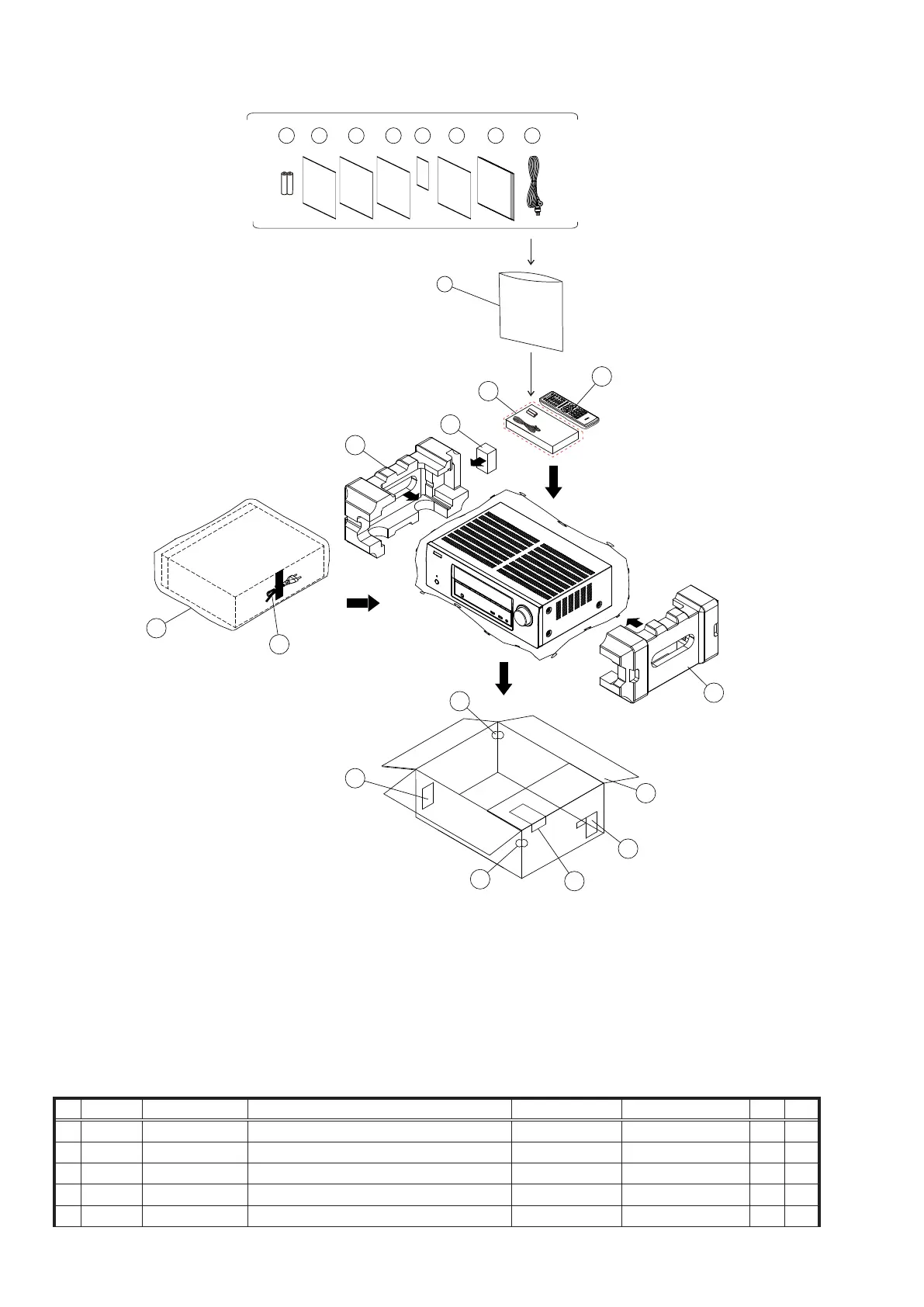

PACKING VIEW
PARTS LIST OF PACKING & ACCESSORIES
z
Parts indicated by "nsp" on this table cannot be supplied.
z
Parts indicated by the "
★
" mark are not illustrated in the exploded view.
z
The parts listed below are only for maintenance. Therefore they might differ from the parts used in the unit in appearances or dimensions.
Note:
The symbols in the column "Remarks" indicate the following destinations.
E3 : U.S.A. & Canada model E2 : Europe model
E1C : China model
BK : Black model SP : Premium Silver model
Ref. No. Part No. Part Name Remarks Q'ty New
1 nsp BAG,POLY CPP1A081X 1
z
2 90M-YC000780R CORD,POWER(U/L)/KENIC 1613E3, 1713E3 CJA523FBYA 1
z
2 90M-ZC000320R CORD,POWER(DETACHABLE/EUR) 1713E2 CJA2B054Z 1
z
2 90M-YC000850R CORD,POWER 1713E1C, 1723E1C CJA2N047ZA 1
3 943533101120D PAD,SNOW(L) CPS1A916 1
10
11
7
8
9
9
8
2
z
1
3
6
5
5-3
4
5-1 5-2 5-5 5-6 5-7 5-8 5-9
5-10

Denon AVR-1713 Specifications

General

Receiver type	-
Audio output channels	5.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Power output per channel (1KHz@6 Ohm)	120 W
Power output per channel (20-20KHz@8 Ohm)	80 W
HDMI in	5
Composite video in	2
Digital audio optical in	1
Ethernet LAN	Yes
Preset stations quantity	56
Internet radio services supported	Last.fm
Supported video modes	1080p
Analog signal format system	NTSC, PAL
Display	LCD
HDMI version	1.4
Product color	Black
Audio decoders	Dolby Pro Logic II, Dolby TrueHD, DTS 96/24, DTS Neo:6, DTS-HD
Apple docking compatibility	Not supported
Graphical user interface (GUI) language	English, French, German
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Depth	332 mm
Width	435 mm
Height	151 mm
Weight	8300 g
