Denon AVR-1713 Service Manual

90
F-HDMI
(COMPONENT SIDE)
F-HDMI
(FOIL SIDE)
BK871
R8722
C8735 C8734
C8733 C8732
C8731
C8730
D8701
R8705 R8706
R8721
R8720
R8711
R8710
R8703
R8712
T280
T281
T282
T283
T284
T285
T286
T287
T288
T289
T290
T291 T292
T293
C8706 C8723
C8722
C8728
C8703
C8701
R8719
R8715
R8717 R8718
R8709
R8716 R8713
R8714
IC872
IC871
L8701
L8702
CN871
JK871
Q8702
Q8701
R8708
C8711
C8729
C8707
C8708
C8709
C8710
C8721
C8715
C8702 C8704
C8705
C8712
C8713
C8714
C8716
C8717
C8718
C8719
C8720 C8724 C8725
C8726
C8727
R8704
R8701
R8702
R8723
R8724
R8725
R8726
R8727
C8636
C8637
D8702

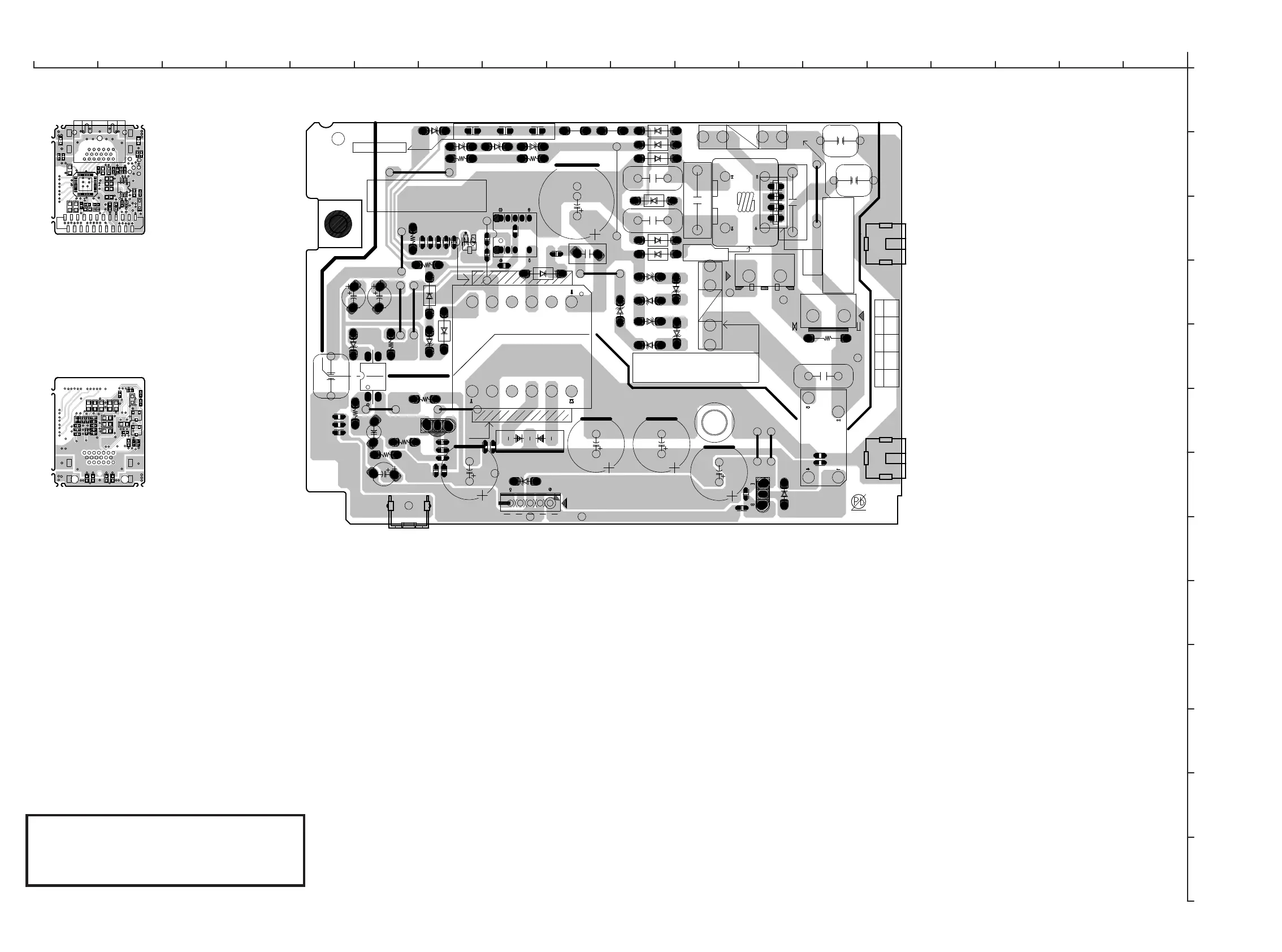

SMPS
(COMPONENT SIDE)
(220V~240V AREA) (100V~120V AREA)
T2A L 250V T1.6A L 250V
F6001
ADJ2 RPICTIC ADJ1
BAR CODE
CLZ9Z126Z:E3,K
CLZ9Z133Z:E2,E1C
LF602
N L
BONDING
BONDING
SMPS PART
CUP12427Z_A
POWER PCB_
CUP12427Z-1
Sec.
Pri.
Sec.
Pri.
Pri.
Sec.
Sec.
Pri.
BN601 5.D5.2V 4.D5.2V 3.D_GND 2.D_GND 1.MAIN_POWER
(100V~120V AREA)
(220V~240V AREA)
F6002
T 3.15A L 250V
T 6.3A L 250V
BK602
BK601
BK603
C6016
C6017C6018
C6019
C6013C6008
C6010
C6004
C6011
C6023
CY601
CY602
C6001
C6002
C6003
CN602
CN601
T6001
R6021
R6010
R6008R6009
R6017
R6016
R6018
R6015
R6001
RY601
D6010
D6001
D6002
D6003
D6004
D6005
D6006
D6007
D6008
D6012
D6009
D6011
ZD611
ZD612
ZD613
ZD614
ZD615
ZD616
ZD617
ZD618
ZD608
ZD609
ZD610
ZD620
ZD619
IC603
IC601
CX601
CX602
Q6003
F6001
F6002
BN601
IC602
R6004
ZD621
J6002 J6003
LF602
J6004
J6005
J6010
J6009
J6013
J6007
J6006
J6015 J6014
J6012
J6011
J6008
181716151413121110987654321
M
L
K
J
I
H
G
F
E
D
C
B
A
鉛フリー半田
半田付けには、鉛フリー半田 (Sn-Ag-Cu) を使用してください。
Lead-free Solder
When soldering, use the Lead-free Solder (Sn-Ag-Cu).

Denon AVR-1713 Specifications

General

Receiver type	-
Audio output channels	5.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Power output per channel (1KHz@6 Ohm)	120 W
Power output per channel (20-20KHz@8 Ohm)	80 W
HDMI in	5
Composite video in	2
Digital audio optical in	1
Ethernet LAN	Yes
Preset stations quantity	56
Internet radio services supported	Last.fm
Supported video modes	1080p
Analog signal format system	NTSC, PAL
Display	LCD
HDMI version	1.4
Product color	Black
Audio decoders	Dolby Pro Logic II, Dolby TrueHD, DTS 96/24, DTS Neo:6, DTS-HD
Apple docking compatibility	Not supported
Graphical user interface (GUI) language	English, French, German
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Depth	332 mm
Width	435 mm
Height	151 mm
Weight	8300 g
