Denon AVR-1912 User Manual

49

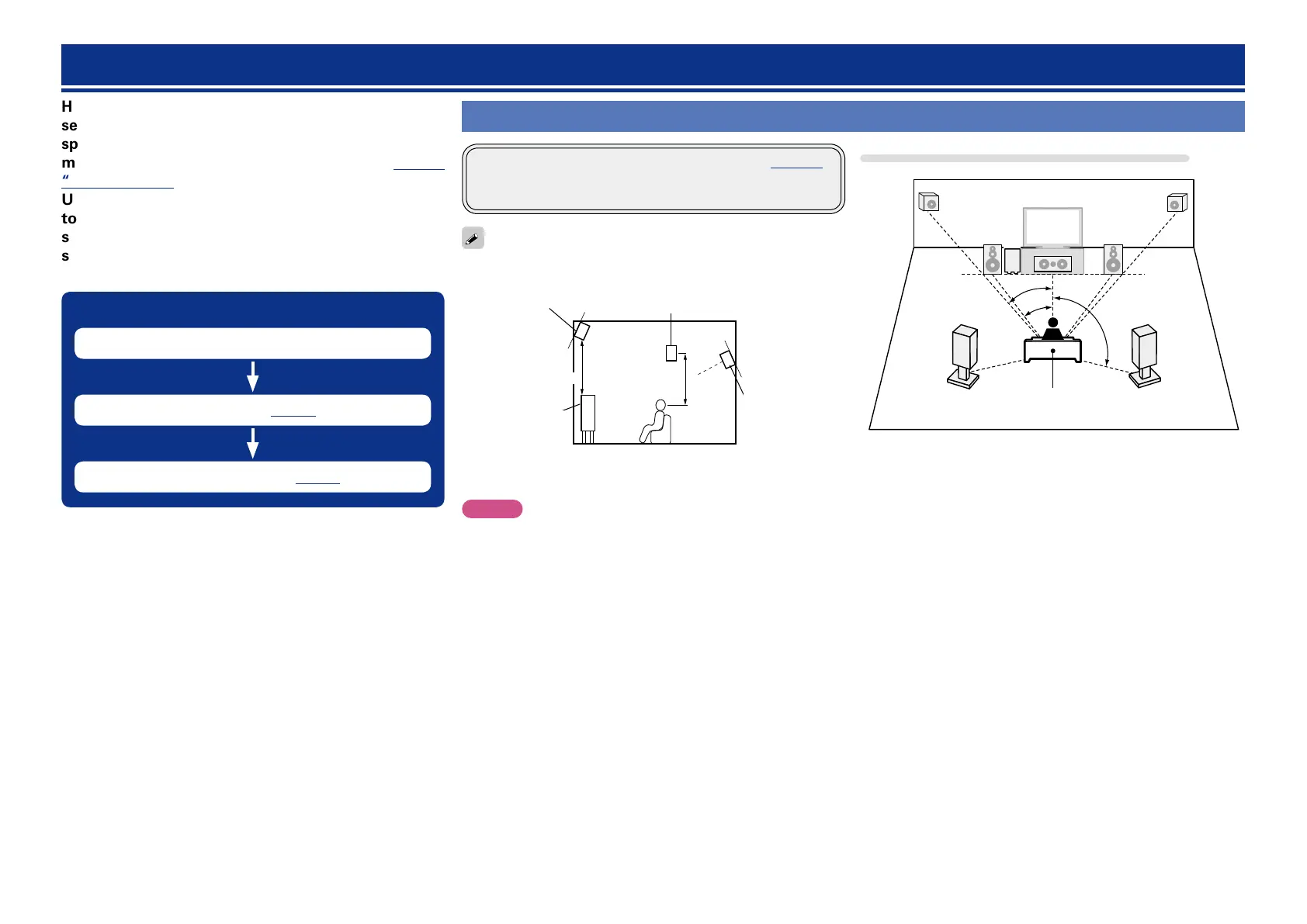

Here we describe the installation, connection and
setup methods for speakers other than 5.1-channel
speakers. For the installation, connection and setup
methods for 5.1-channel speakers, see C page 4
“Setup wizard”.
Use Audyssey
®
Auto Setup function of this unit
to automatically detect the number of connected
speakers and perform optimal settings for the
speakers to be used.
Procedure for speaker settings
Install
Connect (vpage51)
Set up speakers (vpage56)
Install
This unit is compatible with Dolby Pro Logic gz (vpage119),
which offers an even wider and deeper surround sensation.
When using Dolby Pro Logic gz, install front height speakers.
Install the surround back speakers in a position 2 to 3 ft (60 to 90 cm)
higher than ear level.
z
Surround
speaker
2 – 3 ft /
60 – 90 cm
GViewed from the sideH
Front height
speaker
•Point slightly
downwards
At least
3.3 ft / 1 m
Surround back
speaker
•Point slightly
downwards
Front
speaker
z Recommended for Dolby Pro Logic gz
NOTE
It is not possible to use the surround back speakers and front height
speakers simultaneously.
When 7.1ch (Front height speaker) installed
FL
FR
FHRFHL
C
SL
SR
SW
z1
z2
z3
Listening position
z1 22˚ – 30˚ z2 22˚ – 45˚ z3 90˚ – 110˚
GSpeaker abbreviationsH
FL Front speaker (L) SB Surround back speaker
FR Front speaker (R) SBL Surround back speaker (L)
C Center speaker SBR Surround back speaker (R)
SW Subwoofer FHL Front height speaker (L)
SL Surround speaker (L) FHR Front height speaker (R)
SR Surround speaker (R)
Speaker installation/connection (Advanced connection)
Basic version
Advanced version
Information
Advanced version
vSee overleaf

Denon AVR-1912 Specifications

General

Impedance	47 Ω
Receiver type	Surround
Frequency range	10 - 100000 Hz
Input sensitivity	200 mV
Audio output channels	7.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@6 Ohm)	125 W
Power output per channel (20-20KHz@8 Ohm)	90 W
HDMI in	6
Composite video in	3
Component video (YPbPr/YCbCr) in	1
Headphone connectivity	6.3 mm
Connectivity technology	Wired
Speakers connectivity type	Banana connector/Binding posts
Audio formats supported	AAC, FLAC, MP3, WAV, WMA
Image formats supported	JPG
Wi-Fi	No
Ethernet LAN	Yes
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Preset stations quantity	56
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC, PAL
Display	-
Product color	Black
Audio decoders	Dolby Digital EX, Dolby Digital Plus, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Neo:6, DTS-ES, DTS-ES (Discrete 6.1), DTS-ES (Matrix 6.1), DTS-HD
Apple docking compatibility	iPhone, iPod
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	460 W

Weight and Dimensions

Depth	382 mm
Width	435 mm
Height	167 mm
Weight	10200 g
