Connect
•For the method of connecting 5.1-channel speakers, see C page 6 “Connecting the speakers”.
•For the method of connecting the TV, see C page 3 “Connect this unit to the television using an HDMI
cable (sold separately)”.
7.1-channel (Surround back speaker) connection

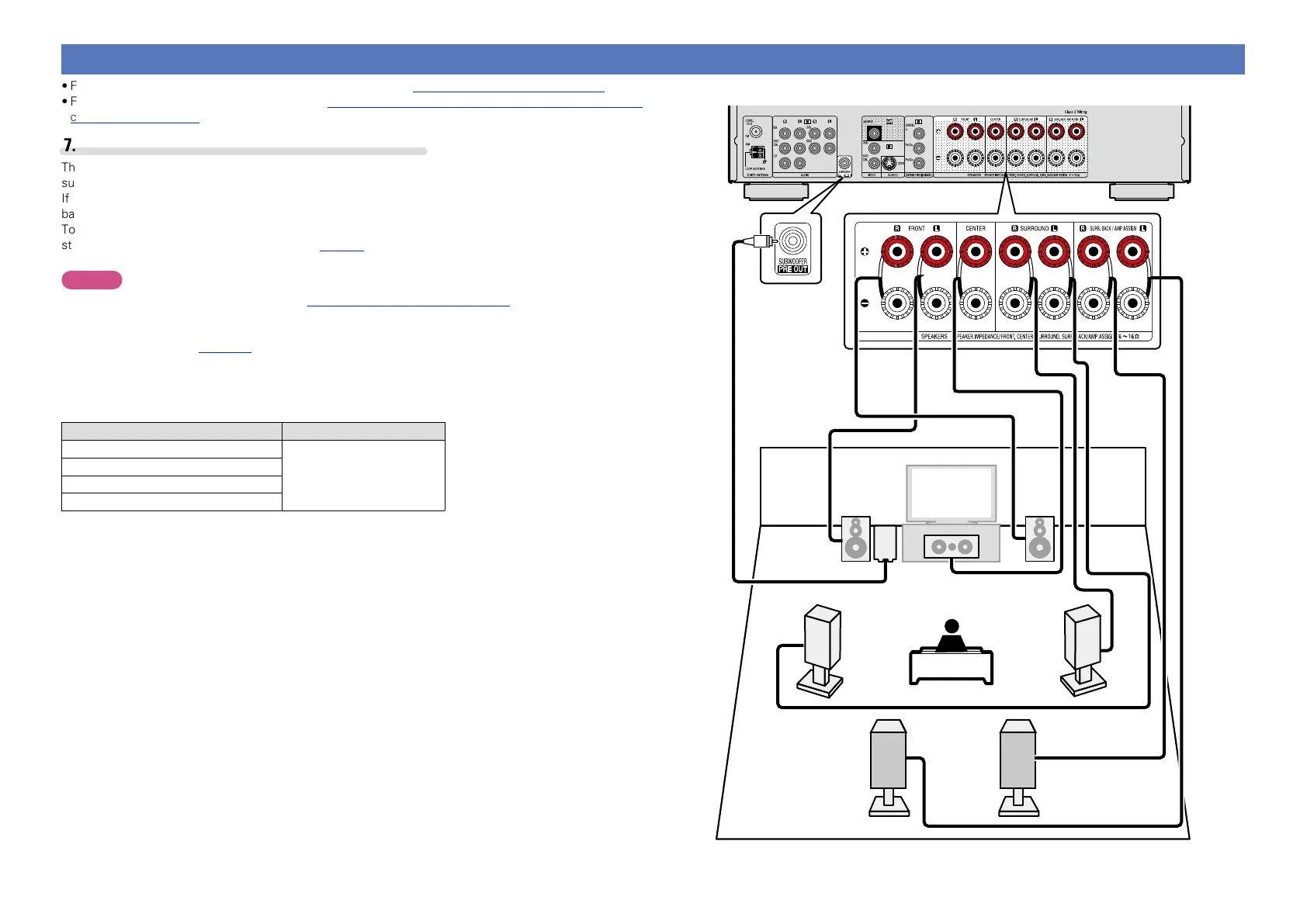

The illustration on the right shows a connection example for performing 7.1-channel playback using the
surround back speakers.
If you connect the surround back and front height speakers before you start playback, the audio is played
back by automatically switching the speakers in accordance with the surround mode or input signals.
To perform 7.1-channel playback using the surround back speakers, set “Amp Assign” to “NORMAL” in
steps 3 and 4 for “Set up “Amp Assign”” (vpage56).
NOTE
•For speaker cable connections, see C page 6 “Connecting the speakers”.
•Connect so that the speaker cable core wires do not protrude from the speaker terminal. The
protection circuit may be activated if the core wires touch the rear panel or if the + and – sides
touch each other (vpage120 “Protection Circuit”).
•Never touch the speaker terminals while the power supply is connected. Doing so could result
in electric shock (When the Setup wizard is running, follow the instructions in the Setup wizard
screen for making connections.).
•Use speakers with the speaker impedances shown below.
Speaker terminals Speaker impedance
FRONT
6 – 16 Ω
CENTER
SURROUND
SURR. BACK / AMP ASSIGN
FL FR
C
SL
SR
SW
SBL SBR
Basic version
Advanced version
Information
Advanced version

Denon AVR-1912 Specifications

General

Impedance	47 Ω
Receiver type	Surround
Frequency range	10 - 100000 Hz
Input sensitivity	200 mV
Audio output channels	7.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@6 Ohm)	125 W
Power output per channel (20-20KHz@8 Ohm)	90 W
HDMI in	6
Composite video in	3
Component video (YPbPr/YCbCr) in	1
Headphone connectivity	6.3 mm
Connectivity technology	Wired
Speakers connectivity type	Banana connector/Binding posts
Audio formats supported	AAC, FLAC, MP3, WAV, WMA
Image formats supported	JPG
Wi-Fi	No
Ethernet LAN	Yes
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Preset stations quantity	56
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC, PAL
Display	-
Product color	Black
Audio decoders	Dolby Digital EX, Dolby Digital Plus, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Neo:6, DTS-ES, DTS-ES (Discrete 6.1), DTS-ES (Matrix 6.1), DTS-HD
Apple docking compatibility	iPhone, iPod
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	460 W

Weight and Dimensions

Depth	382 mm
Width	435 mm
Height	167 mm
Weight	10200 g
