Denon AVR-2106 Service Manual

17
AVR-2106/886

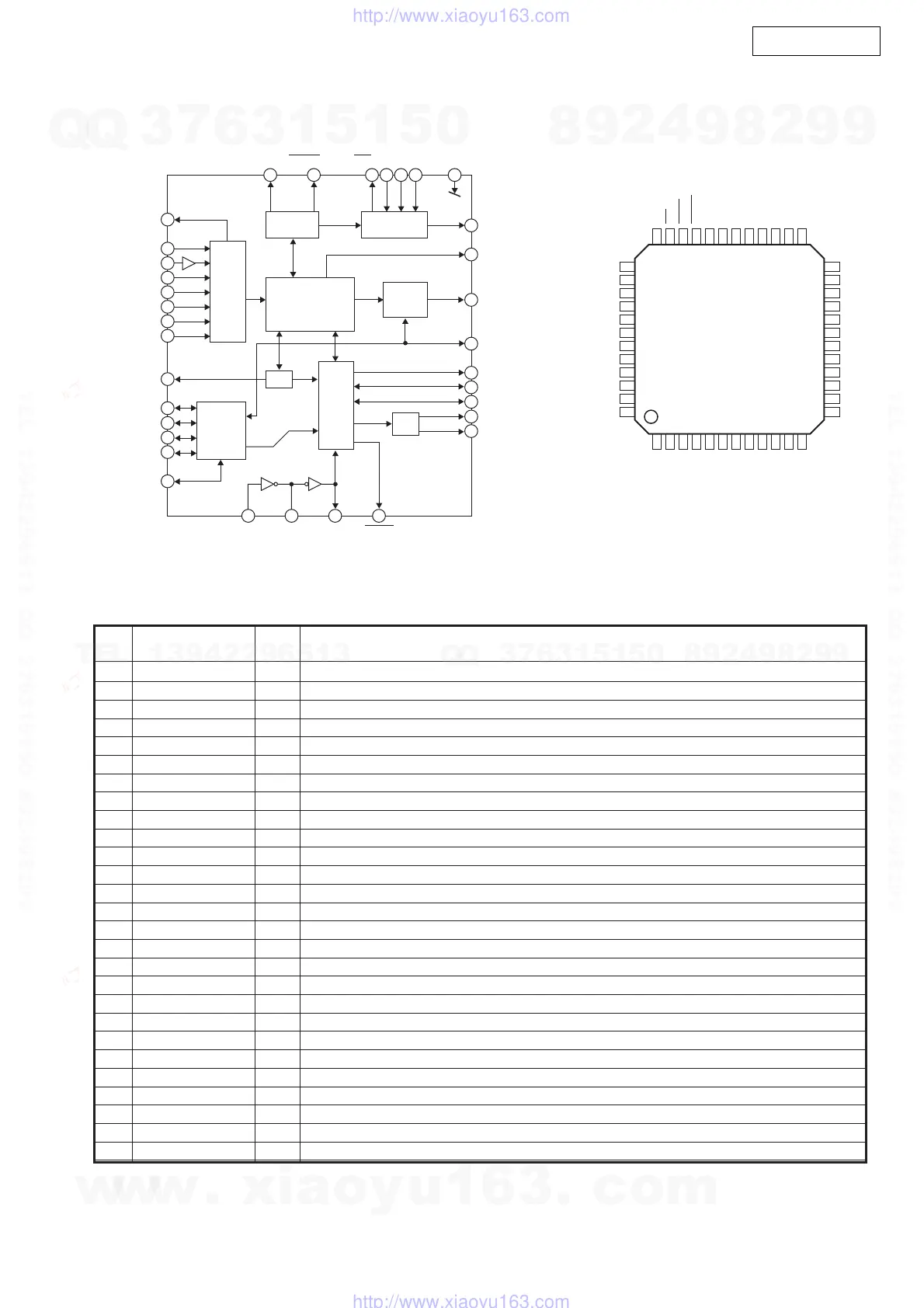

LC89057W (IC807)
LC89057W Terminal Function
Function
Pin
No.
Pin Name
1 RXOUT O Input bi-phase select data output terminal
2 RX0 I TTL compatible digital data input terminal
3 RX1 I Coaxial compatible amp built-in digital data input terminal
4 RX2 I TTL compatible digital data input terminal
5 RX3 I TTL compatible digital data input terminal
6 DGND — Digital GND
7 DVDD — Digital power
8 RX4 I TTL compatible digital data input terminal
9 RX5/VI I TTL compatible digital data/Validity flag input terminal for modulation
10 RX6/UI I TTL compatible digital data/User data input terminal for modulation
11 DVDD — Digital power for PLL
12 DGND — Digital GND for PLL
13 LPF O PLL loop filter connecting terminal
14 AVDD — Analog power for PLL
15 AGND — Analog GND for PLL
16 RMCK O RMCK clock output terminal (256fs, 512fs, XIN, VCO)
17 RBCK O/I RBCK clock in/output terminal (64fs)
18 DGND — Digital GND
19 DVDD — Digital power
20 RLRCK O/I RLRCK clock in/output terminal (fs)
21 RDATA O Serial audio data output terminal
22 SBCK O SBCK clock output terminal (32fs, 64fs, 128fs)
23 SLRCK O SLRCK clock output terminal (fs/2, fs, 2fs)
24 SDIN I Serial audio data input terminal
25 DGND — Digital GND
26 DVDD — Digital power
27 XMCK O Osc. amp output terminal
I/O
36 RERR1RXOUT 35 INT2RX0 34 CKST3RX1 33 AUDIO/VO4RX2 32 EMPHA/UO5RX3 31 DGND6DGND 30 DVDD7DVDD 29 XIN8RX4 28 XOUT9RX5/VI 27 XMCK10RX6/UI 26 DVDD11DVDD 25 DGND12DGND
24 SDIN37DO
23 SLRCK38DI
22 SBCK39CE
21 RDATA40CL
20 RLRCK41XMODE
19 DVDD42DGND
18 DGND43DVDD
17 RBCK44TMCK/PIO0
16 RMCK45TBCK/PIO1
15 AGND46TLRCK/PIO2
14 AVDD47TDATA/PIO3
13 LPF48TXO/PIOEN
TOP VIEW
1 RXOUT
32
EMPHA/UO
33
AUDIO/VO
35
INT
40
CL
39
CE
38
DI
28
XOUT
29
XIN
27
XMCK
34
CKST
41
XMODE
Input
Selector
2
RX0
3
RX1
4
RX2
5
RX3
8
RX4
9
RX5/VI
10
RX6/UI
37
DO
36
RERR
21
RDATA
24
SDIN
16
RMCK
17 RBCK
20
RLRCK
22
SBCK
23
SLRCK
13
LPF
44
TMCK/PIO0
45
TBCK/PIO1
46
TLRCK/PIO2
47
TDATA/PIO3
48
TXO/PIOEN
Clock
Selector
C bit, U bit
PLL
Demodulation
&
Lock Detect
Microcontroller
I/F
Data
Selector
I/N
Modulation
or
Parallel Port
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

Denon AVR-2106 Specifications

Audio Specifications

front rated output	90 W + 90 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08% T.H.D.)
center rated output	90 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08% T.H.D.)
surround rated output	90 W + 90 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08% T.H.D.)
surround back rated output	90 W + 90 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08% T.H.D.)
dynamic power	120 W x 2 ch (8 Ω/ohms)
analog input sensitivity	200 mV / 47 kΩ/kohms
frequency response	10 Hz ~ 100 kHz: +1, –3 dB (DIRECT mode)
analog distortion	0.008 % (20 Hz ~ 20 kHz) (DIRECT mode)
phono input sensitivity	2.5 mV
phono RIAA deviation	±1 dB (20 Hz to 20 kHz)
phono S/N	74 dB (A weighting, with 5 mV input)
phono rated output	150 mV / 7 V
phono distortion factor	0.03 % (1 kHz, 3 V)

Video Specifications

standard video input/output level	1 Vp-p, 75 Ω/ohms
standard video frequency response	5 Hz ~ 10 MHz — +1, –3 dB
S-Video input/output level	Y (brightness) signal — 1 Vp-p, 75 Ω/ohms
S-Video frequency response	5 Hz ~ 10 MHz — +1, –3 dB
color component video input/output level	Y (brightness) signal — 1 Vp-p, 75 Ω/ohms
color component video frequency response	DC ~ 100 MHz — +0, –3 dB

Tuner Specifications

receiving range	87.50 MHz ~ 108.00 MHz 522 kHz ~ 1611 kHz
usable sensitivity	1.0 µV (11.2 dBf) 18 µV
50 dB quieting sensitivity	MONO 1.6 µV (15.3 dBf)
S/N MONO	77 dB (IHF-A weighted)
total harmonic distortion MONO	0.15 % (1 kHz)
total harmonic distortion STEREO	0.3 % (1 kHz)

General Specifications

power supply	AC 230 V, 50 Hz
power consumption	450 W
maximum external dimensions	434 (W) x 171 (H) x 417 (D) mm
mass	12.8 kg

Remote Control Specifications

batteries	R6P/AA Type (two batteries)
external dimensions	55 (W) x 225 (H) x 34.5 (D) mm
mass	165 g (including batteries)
